Washers / steel / burnished
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
* D = 16 or less: C0.2 or less, D = 20 or more: C0.5 or less
[ S ]Surface treatment: black oxide
Specification Table
| Part Number |
| WSF10 |
| Part Number | d | T | D | Mass (g) | |
| Type | D | ||||
| WSF | 10 | 3 | 3 | 10 | 1.7 |
| 12 | 4 | 12 | 2.4 | ||
| 13 | 5 | 13 | 2.7 | ||
| 16 | 6 | 16 | 4.1 | ||
| 20 | 8 | 5 | 20 | 10.4 | |
| 25 | 10 | 25 | 16.2 | ||
| 30 | 12 | 30 | 23.3 | ||
| 35 | 35 | 33.3 | |||
| 40 | 16 | 40 | 41.4 | ||
| 50 | 50 | 69.1 | |||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| WSF10 |
| WSF12 |
| WSF13 |
| WSF16 |
| WSF20 |
| WSF25 |
| WSF30 |
| WSF35 |
| WSF40 |
| WSF50 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | O.D. D (mm) | I.D. (mm) | Thickness/Length (mm) | |
|---|---|---|---|---|---|---|---|---|
0.52 € | 1 | Available |
Same day
Stock | 10 | 10 | 3 | 3 | |
1.14 € | 1 | Available | 5 Days | 10 | 12 | 4 | 3 | |
0.64 € | 1 | Available |
Same day
Stock | 10 | 13 | 5 | 3 | |
0.75 € | 1 | Available |
Same day
Stock | 10 | 16 | 6 | 3 | |
0.88 € | 1 | Available |
Same day
Stock | 10 | 20 | 8 | 5 | |
1.01 € | 1 | Available |
Same day
Stock | 10 | 25 | 10 | 5 | |
1.14 € | 1 | Available | 5 Days | 10 | 30 | 12 | 5 | |
1.26 € | 1 | Available | 5 Days | 10 | 35 | 12 | 5 | |
1.52 € | 1 | Available | 5 Days | 10 | 40 | 16 | 5 | |
1.90 € | 1 | Available | 5 Days | 10 | 50 | 16 | 5 |
Loading...

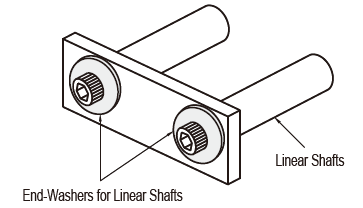

App. Example
Basic information
| Shape | Straight | Inner Shape | Straight | Material | EN 1.1191 Equiv. |
|---|---|---|---|---|---|
| Surface Treatment | Black Oxide | O.D. Tolerance | ±0.2 | I.D. Tolerance | +0.3 to +0.1 |
| Thickness/Length Tolerance | ±0.2 | Sale Type | Sold Separately |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
O.D. D(mm)
-
I.D.(mm)
-
Thickness/Length(mm)
-
Type
- WSF
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Complementary Products
-
Shaft holders / guided round flange, square flange, two-sided flattened round flange / one-piece
MISUMI Standard Price : 11.10 € Shipping Days: Same day
-
Set collars / stainless steel, steel / wedge clamping / double cross hole, cross thread
MISUMI Standard Price : 5.60 € Shipping Days: Same day
