Support Units / Square / Fixed Side / Low Profile
- Volume Discount
- Order quantities extended (D-JIT)
- Stock
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
- Technical Information

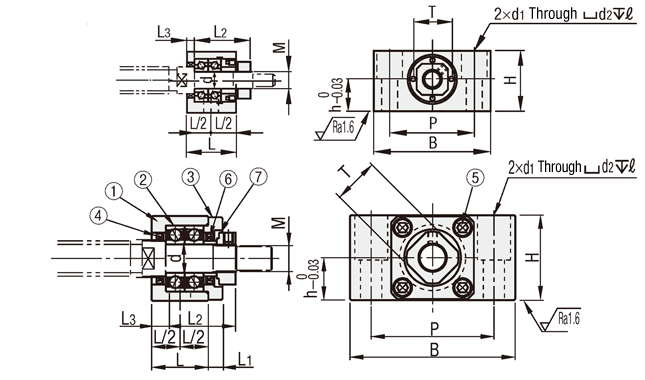

d = 6 and 8
d = 10 to 20
| Type | [M] Material | [S] Surface Treatment | |
| (1)(3) | (6)(7) | (1)(3)(6)(7) | |
| BSV | EN 1.1191 Equiv. | EN 1.0038 Equiv. | Black Oxide |
| BSVM | Electroless Nickel Plating | ||
[ ! ] The lowest profile type.
Specification Table
| Part Number |
| BSV10S |
| Number | Part Name | Quantity |
| (1) | Bearing Housing | 1 |
| (2) | Japanese standard angular contact bearing Grade 5 | 1 Set |
| (3) | Cover | 1 |
| (4) | Oil Seal | 2 |
| (5) | Hex Socket Head Cap Screw* | 4 |
| (6) | Collar | 2 |
| (7) | Bearing Nut (with Set Piece) | 1 |
■ Component Details
[ ! ] Oil Seal (4) is not included in d = 6.
[ ! ] d = 8 comes with 1 Oil Seal (4).
[ ! ] Do not disassemble (1), (2), (3), (4) and (5) as they must remain as an assembled unit.
* Screw (5) for BSVM is Stainless Steel Type.
[ ! ] For No.8S and 10S, the I.D. of oil seal is smaller than the previous No.8S and No.10S versions.
[ ! ] When used together with a MISUMI ball screw, there is 1 support unit accessory collar spare.
| Part Number | d | L | L1 | L2 | L3 | B | H | h | P | d1 | d2 | ℓ | M (Fine) | T | Oil Seal Applicable Shaft Dia. | |
| Type | No. | |||||||||||||||
| BSV BSVM | 6 | 6 | 20 | — | 22.5 | 3.5 | 42 | 22 | 11 | 30 | 5.5 | 9.5 | 12 | M6 × 0.75 | 12 | — |
| 8S | 8 | 23 | — | 26 | 4 | 52 | 28 | 14 | 38 | 6.6 | 11 | 15 | M8 × 1.0 | 14 | 10 | |
| 10S | 10 | 24 | 6 | 29.5 | 6 | 70 | 36 | 18 | 52 | 9 | 14 | 19 | M10 × 1.0 | 17 | 12 | |
| 10 | 14 | |||||||||||||||
| 12 | 12 | 24 | 6 | 29.5 | 6 | 70 | 36 | 18 | 52 | 9 | 14 | 19 | M12 × 1.0 | 19 | 15 | |
| 15 | 15 | 25 | 6 | 38 | 5 | 80 | 41 | 21 | 60 | 11 | 17 | 21 | M15 × 1.0 | 22 | 20 | |
| 20 | 20 | 42 | 10 | 52 | 10 | 95 | 56 | 28 | 75 | 11 | 17 | 29 | M20 × 1.0 | 30 | 25 | |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| BSV6 |
| BSV8S |
| BSV10 |
| BSV10S |
| BSV12 |
| BSV15 |
| BSV20 |
| BSVM6 |
| BSVM8S |
| BSVM10 |
| BSVM10S |
| BSVM12 |
| BSVM15 |
| BSVM20 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Shaft Dia. d (φ) | Surface Treatment | Shaft Height h (mm) | Thickness of Square Type L / Round Type F (mm) (mm) | Width B (mm) | Basic Load Rating Dynamic Rating (N) | Basic Load Rating Static Rating (N) | Oil Seal Applicable Shaft Dia. (Ø) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
88.79 € | 1 | Available |
Same day
Stock | 10 | 6 | Black Oxide | 11 | 20 | 42 | 2670 | 2410 | - | |
88.79 € | 1 | Available |
Same day
Stock | 10 | 8 | Black Oxide | 14 | 23 | 52 | 4400 | 4400 | 10 | |
77.70 € | 1 | Available | 5 Days | 10 | 10 | Black Oxide | 18 | 24 | 70 | 6100 | 4150 | 14 | |
77.70 € | 1 | Available | 5 Days | 10 | 10 | Black Oxide | 18 | 24 | 70 | 6100 | 4150 | 12 | |
79.72 € | 1 | Available |
Same day
Stock | 10 | 12 | Black Oxide | 18 | 24 | 70 | 6650 | 4900 | 15 | |
93.32 € | 1 | Available |
Same day
Stock | 10 | 15 | Black Oxide | 21 | 25 | 80 | 7600 | 6300 | 20 | |
118.13 € | 1 | Available | 5 Days | 10 | 20 | Black Oxide | 28 | 42 | 95 | 17900 | 16800 | 25 | |
98.35 € | 1 | Available | 5 Days | 10 | 6 | Electroless Nickel Plating | 11 | 20 | 42 | 2670 | 2410 | - | |
98.35 € | 1 | Available | 5 Days | 10 | 8 | Electroless Nickel Plating | 14 | 23 | 52 | 4400 | 4400 | 10 | |
94.33 € | 1 | Available | 5 Days | 10 | 10 | Electroless Nickel Plating | 18 | 24 | 70 | 6100 | 4150 | 14 | |
94.33 € | 1 | Available | 5 Days | 10 | 10 | Electroless Nickel Plating | 18 | 24 | 70 | 6100 | 4150 | 12 | |
95.97 € | 1 | Available | 9 Days | 10 | 12 | Electroless Nickel Plating | 18 | 24 | 70 | 6650 | 4900 | 15 | |
113.22 € | 1 | Available | 5 Days | 10 | 15 | Electroless Nickel Plating | 21 | 25 | 80 | 7600 | 6300 | 20 | |
140.54 € | 1 | Available | 5 Days | 10 | 20 | Electroless Nickel Plating | 28 | 42 | 95 | 17900 | 16800 | 25 |
Loading...
Basic information
| Type | Fixed Side Low Profile Type | Shape | Square Type | Mounting Method | Face Mounting |
|---|---|---|---|---|---|
| Bearing Type | Angular Contact Bearing | Bearing Precision | Grade 5 | Material | EN 1.1191 Equiv. |
| Set | Fixed Side Support Units Only |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Shaft Dia. d(φ)
-
Surface Treatment
- Black Oxide
- Electroless Nickel Plating
-
Shaft Height h(mm)
-
Thickness of Square Type L / Round Type F (mm)(mm)
-
Width B(mm)
-
Oil Seal Applicable Shaft Dia.(Ø)
-
Type
- BSV
- BSVM
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
