UHMW Guide Rails

UHMW Guide Rails

MISUMI

MISUMI

[Features] It is a rail for which the hole position can be fixed. [Material] It is resin.

(i)Remark

  • Please check the content on our website as the PDF does not contain the most up-to-date information.

Data sheet

Unit еxample related to this product
Pallet transfer anti-reversing mechanism
Search for оther еxamples

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

NLBA No Hole Type
Engineering Plastic Rail - With Counterbored Holes, Hole Position Configurable: Related Image
NLBB Counterbored Type
Engineering Plastic Rail - With Counterbored Holes, Hole Position Configurable: Related Image
NLBBF Counterbored, Hole Position Configurable
Engineering Plastic Rail - With Counterbored Holes, Hole Position Configurable: Related Image
[!] Thermal Expansion Coefficient: 1.7 × 10⁻⁴/°C
[M]Material: Ultra High-Molecular-Weight Polyethylene
* Hole Machining Details
Z
(Counterbored Hole)		 ZN
(Extra Low Head Counterbored Hole)
　
Bolt
Nominal Dia.		34568
d3.54.55.56.59
d16.589.51114
h3.54.55.56.59

Bolt
Nominal Dia.		456
d4.55.56.5
d191011
h22.52.5

[!] ZN is applicable to Extra Low Hex Head Cap Screws (CBSS and CBSTS).

Specification Table

Part Number—W—L—H—P—G—Screw Nominal Dia.
NLBA5
NLBB8
NLBBF10		—
—
—		25
20
25		—
—
—		1200
500
1100
—
—
H4
H4
—
—
P115
P115

—

G12
—
—
Z5
Z5
■No Hole Type
Part NumberW
Selection		L
1 mm Increments
TypeT
NLBA310152025   100 to 1800
5 1520253035
8  2025303540
10  2025303540
15   25303540
20    303540

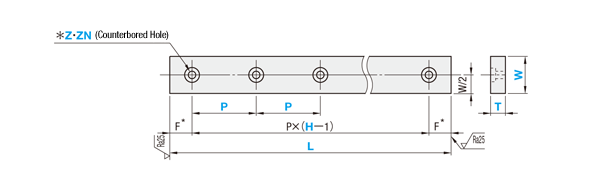

■ Counterbored Hole
Part NumberW
Selection		L
1 mm Increments		H
(Holes)		P
1 mm Increments		Screw Hole Nominal Diameter Configurable
TypeTZZN
NLBB310152025   100 to 12002 to 10P ≥ 20—4
5 1520253035 —456
8  2025303540345  456
10  2025303540 456  56
15   25303540 4568—
20    303540 4568—
[ ! ] (L - P (H−1)) /2 ≥ d1/2 + 2

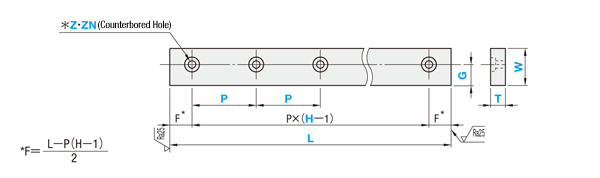

■With Counterbored Holes, Hole Position Configurable
Part NumberW
Selection		L
1 mm Increments		H
(Holes)		P
1 mm Increments		G
1 mm Increments		Screw Hole Nominal Diameter Configurable
TypeTZZN
NLBBF3152025   100 to 12002 to 10P ≥ 207 to 20
d1/2 + 1 ≤ G ≤ W/2		—4
51520253035 —456
8 2025303540345  456
10 2025303540 456  56
15  25303540 4568—
20   303540 4568—
[ ! ] (L - P (H−1)) /2 ≥ d1/2 + 2
■Features of UHMW
(1) Abrasion Resistance: Approx. 6x of Fluorinated Resin.
　　　　　　　Approx. 5x of Nylon Resin.
　　　　　　　Approx. 6x of Polyurethane.
(2) Self-lubricaty: Tribological property is the same as that of fluororesin.
(3) Non-toxic: Passed standard test No. 20 of Health and Welfare Ministry.
■Characteristic Values (Reference Values)
ItemUnitUltrahigh molecular weight polyethyleneNylon 6Fluororesin
Specific Gravity—0.941.082.2
Tensile StrengthMPa446425
Tensile Elongation%450210300
HardnessRockwell R Scale409532
Impact StrengthIzod Notch kJ/m> 1371316
Thermal Expansion Coefficient10−4/°C1.70.81.0
Heat Resistance Temperature°C8080 to 120260 to 278
Water Absorption Ratio%< 0.011.5< 0.01
Dielectric Constant—2.34.02.1
Breakdown VoltagekV/mm502020
Strong Acid Resistance—◎ ×◎
Alkali Resistance—◎○◎
Organic Solvent Resistance—◎○◎

Alterations

Alterations
Code		DescriptionApplicable ConditionsOrdering Example
TCCCorner Cut (End Upper Face)
Selection: TCC5·TCC10		[ ! ] TCC < F - d1/2 - 2NLBB8-20-500-H4-P115-Z5-TCC5
LCC
RCC		Corner Cut (End Side Faces)
LCC: Left Side, RCC: Right Side
Selection: LCC5·LCC10, RCC5·RCC10		[ ! ] LCC (RCC) < F - d1/2NLBBF15-30-1000-H4-P110-G7-Z5-LCC5
[ ! ] Alteration TCC cannot be selected together with alteration LCC or RCC.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
NLBA3-[10,​15,​20,​25]-[100-1800/1]
NLBA5-[15,​20,​25,​30,​35]-[100-1800/1]
NLBA8-[20,​25,​30,​35,​40]-[100-1800/1]
NLBA10-[20,​25,​30,​35,​40]-[100-1800/1]
NLBA15-[25,​30,​35,​40]-[100-1800/1]
NLBA20-[30,​35,​40]-[100-1800/1]
NLBB3-[10,​15,​20,​25]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[20-1186/1]-ZN4
NLBB5-[15,​20,​25,​30,​35]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[20-1186/1]-ZN[4,​5,​6]
NLBB8-[20,​25,​30,​35,​40]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[20-1186/1]-Z[3,​4,​5]
NLBB8-[20,​25,​30,​35,​40]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[20-1186/1]-ZN[4,​5,​6]
NLBB10-[20,​25,​30,​35,​40]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[20-1189/1]-Z[4,​5,​6]
NLBB10-[20,​25,​30,​35,​40]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[20-1189/1]-ZN[5,​6]
NLBB15-[25,​30,​35,​40]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[20-1189/1]-Z[4,​5,​6,​8]
NLBB20-[30,​35,​40]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[20-1189/1]-Z[4,​5,​6,​8]
NLBBF3-[15,​20,​25]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[15-1180/1]-G[7-20/1]-ZN4
NLBBF5-[15,​20,​25,​30,​35]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[15-595/1]-G[7-20/1]-ZN[4,​5,​6]
NLBBF8-[20,​25,​30,​35,​40]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[15-595/1]-G[7-20/1]-Z[3,​4,​5]
NLBBF8-[20,​25,​30,​35,​40]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[15-595/1]-G[7-20/1]-ZN[4,​5,​6]
NLBBF10-[20,​25,​30,​35,​40]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[15-595/1]-G[7-20/1]-Z[4,​5,​6]
NLBBF10-[20,​25,​30,​35,​40]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[15-595/1]-G[7-20/1]-ZN[5,​6]
NLBBF15-[25,​30,​35,​40]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[15-1100/1]-G[7-20/1]-Z[4,​5,​6,​8]
NLBBF20-[30,​35,​40]-[100-1200/1]-H[2,​3,​4,​5,​6,​7,​8,​9,​10]-P[15-595/1]-G[7-20/1]-Z[4,​5,​6,​8]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSHole Machining Thickness T Dimension
(mm) 		Counterbored Hole Nominal Dia. [Z] Extra Low Head Counterbored Hole Nominal Dia. [ZN] G
(mm) 		L
(mm) 		Number of Holes [H]
(pc(s).) 		P
(mm) 		W
(mm)
1 6 Days 10No Hole Type3---100 ～ 1800--10 ～ 25
1 6 Days 10No Hole Type5---100 ～ 1800--15 ～ 35
1 6 Days 10No Hole Type8---100 ～ 1800--20 ～ 40
1 6 Days 10No Hole Type10---100 ～ 1800--20 ～ 40
1 6 Days 10No Hole Type15---100 ～ 1800--25 ～ 40
1 6 Days 10No Hole Type20---100 ～ 1800--30 ～ 40
1 7 Days 10Counterbored Hole Type3-4-100 ～ 12002 ～ 1020 ～ 118610 ～ 25
1 7 Days 10Counterbored Hole Type5-4 ～ 6-100 ～ 12002 ～ 1020 ～ 118615 ～ 35
1 7 Days 10Counterbored Hole Type83 ～ 5--100 ～ 12002 ～ 1020 ～ 118620 ～ 40
1 7 Days 10Counterbored Hole Type8-4 ～ 6-100 ～ 12002 ～ 1020 ～ 118620 ～ 40
1 7 Days 10Counterbored Hole Type104 ～ 6--100 ～ 12002 ～ 1020 ～ 118920 ～ 40
1 7 Days 10Counterbored Hole Type10-5 ～ 6-100 ～ 12002 ～ 1020 ～ 118920 ～ 40
1 7 Days 10Counterbored Hole Type154 ～ 8--100 ～ 12002 ～ 1020 ～ 118925 ～ 40
1 7 Days 10Counterbored Hole Type204 ～ 8--100 ～ 12002 ～ 1020 ～ 118930 ～ 40
1 7 Days 10Counterbored Holes, Hole Position Configurable Type3-47 ～ 20100 ～ 12002 ～ 1015 ～ 118015 ～ 25
1 7 Days 10Counterbored Holes, Hole Position Configurable Type5-4 ～ 67 ～ 20100 ～ 12002 ～ 1015 ～ 59515 ～ 35
1 7 Days 10Counterbored Holes, Hole Position Configurable Type83 ～ 5-7 ～ 20100 ～ 12002 ～ 1015 ～ 59520 ～ 40
1 7 Days 10Counterbored Holes, Hole Position Configurable Type8-4 ～ 67 ～ 20100 ～ 12002 ～ 1015 ～ 59520 ～ 40
1 7 Days 10Counterbored Holes, Hole Position Configurable Type104 ～ 6-7 ～ 20100 ～ 12002 ～ 1015 ～ 59520 ～ 40
1 7 Days 10Counterbored Holes, Hole Position Configurable Type10-5 ～ 67 ～ 20100 ～ 12002 ～ 1015 ～ 59520 ～ 40
1 7 Days 10Counterbored Holes, Hole Position Configurable Type154 ～ 8-7 ～ 20100 ～ 12002 ～ 1015 ～ 110025 ～ 40
1 7 Days 10Counterbored Holes, Hole Position Configurable Type204 ～ 8-7 ～ 20100 ～ 12002 ～ 1015 ～ 59530 ～ 40
