Spring Plungers with Hexagon Socket Hole
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

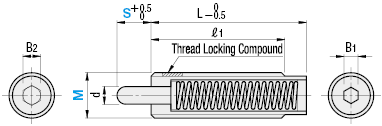

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
 [!]Thread Locking Treatment is where anaerobic thread locking compound in micro capsules is used to retain the threads. |
| Once parts have been loosened, adhesion is lost. Use an anaerobic thread locking compound when reassembling. |
| [ ! ] The thread locking is most effective by leaving the parts for 24 hours or more and in 25°C. |
| It should be noted if the parts are left for short period of time and in low temperature, the thread locking compound will be less-effective. |
| [ ! ] Do not use the rear hex socket at the time of mounting or removal. |
| Type | Body | Pin | Spring | Operating Temperature | ||||
| [M] Material | [H] Hardness | [S] Surface Treatment | [M] Material | [H] Hardness | [S] Surface Treatment | [M] Material | ||
| PJLH (Light Load) | EN 1.1191 Equiv. | 29 to 35HRC | Black Oxide | EN 1.1191 Equiv. | 57 to 63HRC (Carburized) | Trivalent Chromate | JIS-SWP-B | −30 to 80°C |
Specification Table
| Part Number | — | S |
| PJLH 8 | — | 3 |
| Part Number | S | d | ℓ1 | L | B1 | B2 | For Light Load N [kgf] | ||
| Type | M | min. | max. | ||||||
| PJLH | 8 | 3 | 3 | 25 | 25 | 2.5 | 3 | 5.8 {0.6} | 9.8 {1.0} |
| 5 | 2.7 {0.3} | 9.8 {1.0} | |||||||
| 10 | 5 | 4 | 30 | 34 | 3 | 4 | 5.8 {0.6} | 14.7 {1.5} | |
| 10 | 38 | 2.6 {0.3} | 14.7 {1.5} | ||||||
| 12 | 5 | 5 | 35 | 35 | 4 | 5 | 5.6 {0.6} | 14.7 {1.5} | |
| 10 | 40 | 3.0 {0.3} | 19.7 {2.0} | ||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| PJLH8-3 |
| PJLH8-5 |
| PJLH10-5 |
| PJLH10-10 |
| PJLH12-5 |
| PJLH12-10 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | O.D. M (mm) | Stroke (S) (mm) | Min. Load (N) | Max. Load (N) | |
|---|---|---|---|---|---|---|---|---|---|
7.06 € | 1 | Available |
Same day
Stock | 10 | 8 | 3 | 5.8 | 9.8 | |
7.18 € | 1 | Available |
Same day
Stock | 10 | 8 | 5 | 2.7 | 9.8 | |
7.81 € | 1 | Available | 5 Days | 10 | 10 | 5 | 5.8 | 14.7 | |
8.31 € | 1 | Available | 5 Days | 10 | 10 | 10 | 2.6 | 14.7 | |
8.68 € | 1 | Available | 5 Days | 10 | 12 | 5 | 5.6 | 14.7 | |
9.32 € | 1 | Available | 5 Days | 10 | 12 | 10 | 3 | 19.7 |
Loading...
App. Example
Basic information
| Pin Material | EN 1.1191 Equiv. | Body Material | EN 1.1191 Equiv. | Mounting Method | Screw-In |
|---|---|---|---|---|---|
| Thread Locking Compound | Provided | Pin Plunger Type | Hex Socket Type | Wrench Hole Shape | Hex |
| Main Body Surface Treatment | Black Oxide | Pin Surface Treatment | Trivalent Chromate | Tip Heat Treatment | Carburized |
| Initial Load (Range)(N) | 0.01 to 50 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
