Ball Plungers / Hexagon Socket Head / Cap Screw
- Promotional pricing
- Volume Discount
- Order quantities extended (D-JIT)
- Stock
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
BPHH
BPRH
Load
| Type | Body | Ball | Spring | Spacer | Operating Temperature | |||||
| [M] Material | [H] Hardness | [S] Surface Treatment | [M] Material | [H] Hardness | [M] Material | [M] Material | ||||
| Light Load | Hex Screw | BPHL | EN 1.1191 Equiv. | 29 to 35HRC | Black Oxide | EN 1.3505 Equiv. | 55HRC or more | JIS−SWP−B | EN 1.4301 Equiv. | －30 to 80°C |
| Heavy Load | BPHH | Electroless Nickel Plating | ||||||||
| Light Load | Hex Socket Head Cap Screw Hex Screw | BPRL | EN 1.7220 Equiv. | Black Oxide | ||||||
| Heavy Load | BPRH | Electroless Nickel Plating | ||||||||

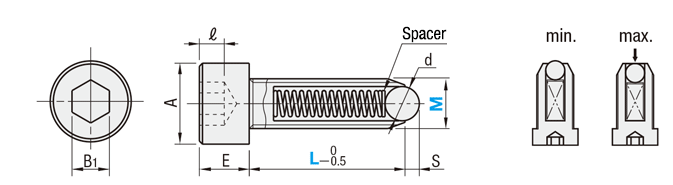

Specification Table
| Part Number | — | L |
| BPRL5 | — | 30 |
| Part Number | L Selection | d | S | A | B | B1 | (C) | E | H | ℓ | Load (N) | ||||||||||
| Type | M | BPHL·BPRL | BPHH·BPRH | ||||||||||||||||||
| min. | max. | min. | max. | ||||||||||||||||||
| (Hex Head Cap Screw) BPHL BPHH (Hex Socket Head Cap Screw) BPRL BPRH | 4 | *10 | *15 | *20 | 30 | 2.5 | 0.8 | 7 | 7 | 3 | 8.1 | 4 | 2.8 | 2 | 1.9 | 4.9 | 3.9 | 9.8 | |||
| 5 | *15 | *20 | 30 | 40 | 3 | 8.5 | 8 | 4 | 9.2 | 5 | 3.5 | 2.5 | 3.3 | 9.8 | 4.9 | 19.6 | |||||
| 6 | *15 | *20 | 30 | 40 | 3 | 10 | 10 | 5 | 11.5 | 6 | 4 | 3 | 5.1 | 15.3 | 9.8 | 29.4 | |||||
| 8 | *15 | *20 | 30 | 40 | 4 | 1 | 13 | 13 | 6 | 15 | 8 | 5.5 | 4 | 5.5 | 19.1 | 12.7 | 39.2 | ||||
| 10 | 15 | *20 | 30 | 40 | 50 | 5 | 1.2 | 16 | 17 | 8 | 19.6 | 10 | 7 | 5 | 8.9 | 24.1 | 18.6 | 49 | |||
| 12 | *25 | 30 | 40 | 7.1 | 1.8 | 18 | 19 | 10 | 21.9 | 12 | 8 | 6 | 10.9 | 29.3 | 19.6 | 58.8 | |||||
| 16 | 40 | 9.5 | 2.5 | 24 | 24 | 14 | 27.7 | 16 | 10 | 8 | 14.9 | 48.9 | 29.4 | 98 | |||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Body Material | Outside Dia./Thread M (mm) | Stroke (S) (mm) | Initial Load (N) | Max. Load (N) | Length L (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
7.67 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 4 | 0.8 | 3.9 | 9.8 | 10 | |
7.67 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 4 | 0.8 | 3.9 | 9.8 | 15 | |
7.67 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 4 | 0.8 | 3.9 | 9.8 | 20 | |
7.81 € 2.34 € | 1 | Available |
Same day
Stock | 10 | [Steel] EN 1.1191 Equiv. | 5 | 0.8 | 4.9 | 19.6 | 15 | |
7.81 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 5 | 0.8 | 4.9 | 19.6 | 20 | |
8.44 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 6 | 0.8 | 9.8 | 29.4 | 15 | |
8.44 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 6 | 0.8 | 9.8 | 29.4 | 20 | |
9.45 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 8 | 1 | 12.7 | 39.2 | 15 | |
9.45 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 8 | 1 | 12.7 | 39.2 | 20 | |
9.70 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 10 | 1.2 | 18.6 | 49 | 20 | |
11.07 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 12 | 1.8 | 19.6 | 58.8 | 25 | |
7.67 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 4 | 0.8 | 1.9 | 4.9 | 10 | |
7.67 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 4 | 0.8 | 1.9 | 4.9 | 15 | |
7.67 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 4 | 0.8 | 1.9 | 4.9 | 20 | |
7.81 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 5 | 0.8 | 3.3 | 9.8 | 15 | |
7.81 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 5 | 0.8 | 3.3 | 9.8 | 20 | |
8.44 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 6 | 0.8 | 5.1 | 15.3 | 15 | |
8.44 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 6 | 0.8 | 5.1 | 15.3 | 20 | |
9.45 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 8 | 1 | 5.5 | 19.1 | 15 | |
9.45 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 8 | 1 | 5.5 | 19.1 | 20 | |
9.70 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 10 | 1.2 | 8.9 | 24.1 | 20 | |
11.07 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | 12 | 1.8 | 10.9 | 29.3 | 25 | |
7.06 € | 1 | Available |
Same day
Stock | 10 | [Steel] EN 1.7220 Equiv. | 4 | 0.8 | 3.9 | 9.8 | 10 | |
7.06 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 4 | 0.8 | 3.9 | 9.8 | 15 | |
7.06 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 4 | 0.8 | 3.9 | 9.8 | 20 | |
7.06 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 4 | 0.8 | 3.9 | 9.8 | 30 | |
7.18 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 5 | 0.8 | 4.9 | 19.6 | 15 | |
7.18 € | 1 | Available |
Same day
Stock | 10 | [Steel] EN 1.7220 Equiv. | 5 | 0.8 | 4.9 | 19.6 | 20 | |
7.18 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 5 | 0.8 | 4.9 | 19.6 | 30 | |
7.18 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 5 | 0.8 | 4.9 | 19.6 | 40 | |
7.81 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 6 | 0.8 | 9.8 | 29.4 | 15 | |
7.81 € | 1 | Available |
Same day
Stock | 10 | [Steel] EN 1.7220 Equiv. | 6 | 0.8 | 9.8 | 29.4 | 20 | |
7.81 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 6 | 0.8 | 9.8 | 29.4 | 30 | |
7.81 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 6 | 0.8 | 9.8 | 29.4 | 40 | |
8.57 € | 1 | Available |
Same day
Stock | 10 | [Steel] EN 1.7220 Equiv. | 8 | 1 | 12.7 | 39.2 | 15 | |
8.57 € | 1 | Available |
Same day
Stock | 10 | [Steel] EN 1.7220 Equiv. | 8 | 1 | 12.7 | 39.2 | 20 | |
8.57 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 8 | 1 | 12.7 | 39.2 | 30 | |
8.57 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 8 | 1 | 12.7 | 39.2 | 40 | |
9.83 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 10 | 1.2 | 18.6 | 49 | 15 | |
9.83 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 10 | 1.2 | 18.6 | 49 | 20 | |
9.83 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 10 | 1.2 | 18.6 | 49 | 30 | |
9.83 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 10 | 1.2 | 18.6 | 49 | 40 | |
9.83 € | 1 | Available |
Same day
Stock | 10 | [Steel] EN 1.7220 Equiv. | 10 | 1.2 | 18.6 | 49 | 50 | |
12.22 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 12 | 1.8 | 19.6 | 58.8 | 25 | |
12.22 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 12 | 1.8 | 19.6 | 58.8 | 30 | |
12.22 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 12 | 1.8 | 19.6 | 58.8 | 40 | |
20.79 € 6.24 € | 1 | Available |
Same day
Stock | 10 | [Steel] EN 1.7220 Equiv. | 16 | 2.5 | 29.4 | 98 | 40 | |
7.06 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 4 | 0.8 | 1.9 | 4.9 | 10 | |
7.06 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 4 | 0.8 | 1.9 | 4.9 | 15 | |
7.06 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 4 | 0.8 | 1.9 | 4.9 | 20 | |
7.06 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 4 | 0.8 | 1.9 | 4.9 | 30 | |
7.18 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 5 | 0.8 | 3.3 | 9.8 | 15 | |
7.18 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 5 | 0.8 | 3.3 | 9.8 | 20 | |
7.18 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 5 | 0.8 | 3.3 | 9.8 | 30 | |
7.18 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 5 | 0.8 | 3.3 | 9.8 | 40 | |
7.81 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 6 | 0.8 | 5.1 | 15.3 | 15 | |
7.81 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 6 | 0.8 | 5.1 | 15.3 | 20 | |
7.81 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 6 | 0.8 | 5.1 | 15.3 | 30 | |
7.81 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.7220 Equiv. | 6 | 0.8 | 5.1 | 15.3 | 40 | |
8.57 € | 1 | Available |
Same day
Stock | 10 | [Steel] EN 1.7220 Equiv. | 8 | 1 | 5.5 | 19.1 | 15 |
Loading...
Basic information
| Mounting Method | Screw (Cap) | Ball Material | EN 1.3505 Equiv. | Thread Locking Compound | Not Provided |
|---|---|---|---|---|---|
| Main Body Surface Treatment | Electroless Nickel Plating | Pin Surface Treatment | Not Provided | Tip Heat Treatment | Hardened |
| Initial Load (Range)(N) | 0.01 to 50 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Body Material
- Steel
- Steel
-
Outside Dia./Thread M(mm)
-
Stroke (S)(mm)
-
Initial Load(N)
-
Length L(mm)
- 10
- 15
- 20
- 25
- 30
- 40
- 50
-
Type
- BPHH
- BPHL
- BPRH
- BPRL
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
