Contact Switches / Bolt / L-Shaped Bolt Switches
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog

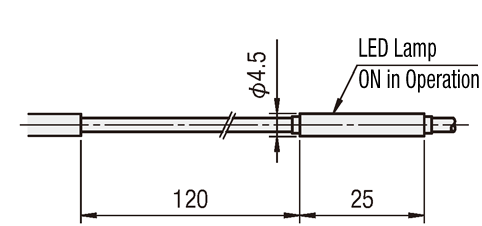

| MSTKD－JL N－MSTKD－JDL (With LED) | ||||
(M5) | Switch body | |||
 |  | |||
| MSTKD－B N－MSTKD－BD(With LED) | MSTKD－BF N－MSTKD－BFD(With LED) | MSTKD－BB N－MSTKD－BBD(With LED) | ||
(M6·8) | Switch body | |||
 |  | |||
[ ! ] Use under 24 V DC/10 mA or less.
[ ! ] Use within the contact ratings.
[ ! ] Do not pull or twist the cable with 30 N or more.
| Contact Part | Main Body | Cable | Accessory | ||
| Material | Hardness | Material | |||
| EN 1.4029 Equiv. | 45 to 50HRC | EN 1.4305 Equiv. | Cable 3 m, 2-Conductors ø3, Oil Resistant Min. Bending Radius R7 | Hex Nut 2 pcs. | ·M5: Thickness 2.4, Hex Size 7, M6: Thickness 3.2, Hex Size 8 ·M8: Thickness 3.2, Hex Size 10 |
Specification Table
| Part Number |
| MSTKD−JL MSTKD−EL MSTKG−F |
| Part Number | M × P (Fine) | Stroke | Operating Point | Contact Force N | Switch Contact Structure | L | ℓ | B |
| MSTKD−JL N−MSTKD−JDL | M5 × 0.5 | 2.8 | 0.3 from Tip (Repeatability 0.005) | 1 | NO (Normally Open) | 22 | — | 4.4 |
| MSTKD−B N−MSTKD−BD | M6 × 0.75 | 22 | 11.5 | 5 | ||||
| MSTKD−BF N−MSTKD−BFD | 0.5 | |||||||
| MSTKD−BB N−MSTKD−BBD | 1 | NC (Normally Closed) | 22 | 11.5 |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| MSTKD-B |
| MSTKD-BB |
| MSTKD-BF |
| MSTKD-JL |
| N-MSTKD-BBD |
| N-MSTKD-BD |
| N-MSTKD-BFD |
| N-MSTKD-JDL |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Contact Point Type | Screw Nominal (M) | Contact Force (N) | LED | |
|---|---|---|---|---|---|---|---|---|---|
44.08 € | 1 | Available |
Same day
Stock | 10 | Contact Type NO | M6x0.75 | 1 | W/o LED | |
44.08 € | 1 | Available |
Same day
Stock | 10 | Contact Type NC | M6x0.75 | 1 | W/o LED | |
44.08 € | 1 | Available |
Same day
Stock | 10 | Contact Type NO | M6x0.75 | 0.5 | W/o LED | |
38.79 € | 1 | Available |
Same day
Stock | 10 | Contact Type NO | M5x0.5 | 1 | W/o LED | |
46.84 € | 1 | Available | 5 Days | 10 | Contact Type NC | M6x0.75 | 1 | With LED | |
46.84 € | 1 | Available |
Same day
Stock | 10 | Contact Type NO | M6x0.75 | 1 | With LED | |
46.84 € | 1 | Available |
Same day
Stock | 10 | Contact Type NO | M6x0.75 | 0.5 | With LED | |
43.45 € | 1 | Available |
Same day
Stock | 10 | Contact Type NO | M5x0.5 | 1 | With LED |
Loading...
Specifications/Overview
[!] Straightly hold a detected object against the tip of switch. (Declination within ±3°)
Basic information
| Type | Pin Stroke, Spring Plunger Type | Main Body Shape | Screw Type | Tip Shape | Needle Type |
|---|---|---|---|---|---|
| Environment | Standard | Body Material | EN 1.4305 Equiv. | Contact Material | EN 1.4029 Equiv. |
| Stroke(mm) | 2.8 | Operating Temperature Range(°C) | 0::80 | Operating Point(mm) | 0.3 |
| Repeatability | 0.005mm | Contact Point Accuracy Life(x 10K times) | 1000 | Tip Dia. | Ø2 |
| Protection Structure | IP65 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Contact Point Type
- Contact Type NO
- Contact Type NC
-
Screw Nominal (M)
- M5x0.5
- M6x0.75
-
LED
- W/o LED
- With LED
-
Type
- MSTKD-B
- MSTKD-BB
- MSTKD-BF
- MSTKD-JL
- N-MSTKD-BBD
- N-MSTKD-BD
- N-MSTKD-BFD
- N-MSTKD-JDL
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
