Contact Switches / Tip Shape Selectable Type
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
| MSTKD－F | N－MSTKD－FD (With LED) | Switch body | ||
 |  | |||

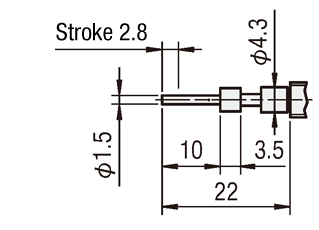

● Tip Shapes
| A | B | C |
 |  |  |
[ ! ] Use under 24 V DC/10 mA or less.
[ ! ] Use within the contact ratings.
[ ! ] Do not pull or twist the cable with 30 N or more.
| Contact Part | Thread | Cable | Accessory | ||
| Material | Hardness | Material | |||
| EN 1.4029 Equiv. | 45 to 50HRC | EN 1.4305 Equiv. | Cable 3 m, 2-Conductors ø3, Oil Resistant Min. Bending Radius R7 | Hex Nut 2 pcs. | ·M6：Thickness 3.2, Hex Size 8 |
Specification Table
| Part Number |
| MSTKD−FB N−MSTKD−FDB |
| Part Number | Stroke | Operating Point | Contact Force N | Contact Logic | B | |
| Type | Tip Shape | |||||
| MSTKD−F N−MSTKD−FD | A B C | 2.8 | 0.3 from tip | 1 | NO (Normally Open) | 5 |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| MSTKD-FA |
| MSTKD-FB |
| MSTKD-FC |
| N-MSTKD-FDA |
| N-MSTKD-FDB |
| N-MSTKD-FDC |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Tip Dia. | LED | |
|---|---|---|---|---|---|---|---|
51.77 € | 1 | Available |
Same day
Stock | 10 | [Up to Ø2] Ø2 | W/o LED | |
51.77 € | 1 | Available |
Same day
Stock | 10 | [Up to Ø4] Ø4 | W/o LED | |
51.77 € | 1 | Available |
Same day
Stock | 10 | [Up to Ø2] Ø1.5 | W/o LED | |
54.65 € | 1 | Available |
Same day
Stock | 10 | [Up to Ø2] Ø2 | With LED | |
54.65 € | 1 | Available |
Same day
Stock | 10 | [Up to Ø4] Ø4 | With LED | |
54.65 € | 1 | Available |
Same day
Stock | 10 | [Up to Ø2] Ø1.5 | With LED |
Loading...
Specifications/Overview
[!] Straightly hold a detected object against the tip of switch. (Declination within ±3°)
Basic information
| Type | Pin Stroke, Spring Plunger Type | Main Body Shape | Screw Type | Environment | Standard |
|---|---|---|---|---|---|
| Body Material | EN 1.4305 Equiv. | Contact Material | EN 1.4029 Equiv. | Stroke(mm) | 2.8 |
| Contact Point Type | Contact Type NO | Screw Nominal (M) | M6x0.75 | Operating Temperature Range(°C) | 0::80 |
| Operating Point(mm) | 0.3 | Repeatability | 0.005mm | Contact Force(N) | 1 |
| Contact Point Accuracy Life(x 10K times) | 1000 | Protection Structure | IP65 |
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
