Contact Switches with Stoppers / Cylinder with Flange / IP44
- Promotional pricing
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

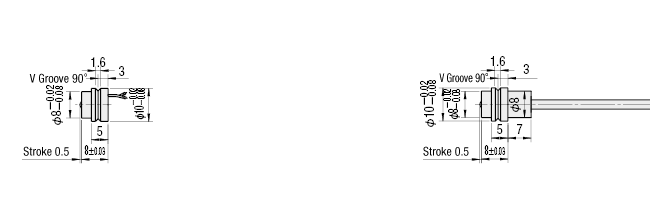

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
MSTF－S
MSTF－SD(With LED)
Cable: Loose Wire (without SUMITUBE)
2 Conductors - ø0.6,
L 0.5 m Oil Resistant
MSTF－L
MSTF－LD(With LED)
Cable: Cab Tire
2 Conductors - ø3, L 2 m, Oil Resistant
Min. Bending Radius 7R
Contact Part: EN 1.4029 Equiv.(50HRC)
Specification Table
| Part Number |
| MSTW−SD MSTF−L MSN−S MSNF−L MSPM−LD MSNW−L MSNWF−S |
| Part Number | Stroke | Operating Point | Contact Force | Allowable Static Load | Shock Resistance Energy | Contact Logic |
| Type | ||||||
| MSTW | 0.5 | Stroke Center Vicinity (Repeatability 0.01) | 0.8 N | 3000 N | 0.2J | NO (Normally Open) |
| MSTF | ||||||
| MSN | ||||||
| MSNF | ||||||
| MSPM |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| MSTF-L |
| MSTF-LD |
| MSTF-S |
| MSTF-SD |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | LED | Cable | |
|---|---|---|---|---|---|---|---|
31.24 € | 1 | Available | 5 Days | 10 | W/o LED | Cabtyre | |
44.45 € | 1 | Available | 5 Days | 10 | With LED | Cabtyre | |
29.47 € | 1 | Available | 5 Days | 10 | W/o LED | Loose Wire | |
42.19 € 21.10 € | 1 | Available |
Same day
Stock | 10 | With LED | Loose Wire |
Loading...
Specifications/Overview
Except (Declination within ±3°) ·Ball Contact Type
(All Orientations) ·Use within the contact ratings.
·Do not pull or twist the loose wires with 15 N or more.
Also do not pull or twist the cab tire cords with 30N or more.
App. Example
(MSWF)Double Nut Tightened
(MSNW)Screw-In
(MSNWF)■Structure of Waterproof Type (IP67)
Contact
(Hardened Steel)
·Use within the contact ratings.
·Do not pull or twist the loose wires with 15 N or more.
Also do not pull or twist the cab tire cords with 30 N or more.
Basic information
| Type | Pin Stroke, Spring Plunger Type / With Stopper | Main Body Shape | Standard Type / Flanged | Tip Shape | Needle Type |
|---|---|---|---|---|---|
| Environment | Drip-Proof Type | Body Material | EN 1.4005 Equiv. | Contact Material | EN 1.4029 Equiv. |
| Stroke(mm) | 0.5 | Contact Point Type | Contact Type NO | Cylinder O.D.(mm) | 8 |
| Operating Temperature Range(°C) | 0::80 | Operating Point(mm) | 0.25 | Repeatability | 0.01mm |
| Contact Force(N) | 0.8 | Contact Point Accuracy Life(x 10K times) | 1000 | Allowable Static Load(N) | 3000 |
| Impact Resistant Energy(J) | 0.2 | Tip Dia. | Ø3 | Protection Structure | IP44 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
