Contact Switches with Stoppers / Ball Contact Screw / IP44
- Promotional pricing
[Features] This is a ball contact, ball plunger type, with a plug. [Material] EN 1.4005 Equiv.
- Stock
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

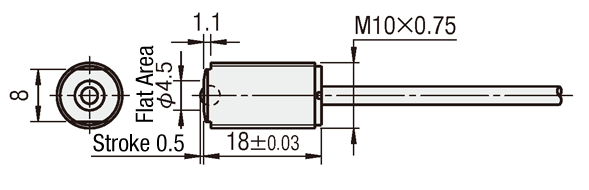

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
| MSPM－S MSPM－SD(With LED) | MSPM－L MSPM－LD(With LED) | |||
 |  | |||
| Cable: Loose Wire (without SUMITUBE) 2 Conductors - ø0.6, L 0.5 m Oil Resistant | Cable: Cab Tire 2 Conductors - ø3, L 2 m, Oil Resistant Min. Bending Radius 7R | |||

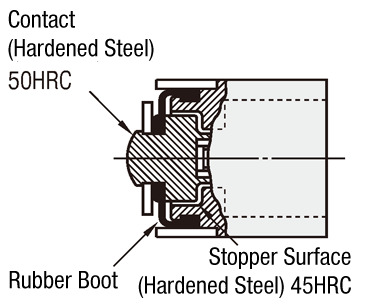

Material Main Body: EN 1.4005 Equiv.(45HRC)
Ball: EN 1.4125 Equiv.(50HRC)
Ball: EN 1.4125 Equiv.(50HRC)
Accessories (MSPM-L, LD only): Hex Nut 2 pcs. (Thickness 3, Hex Socket 13)
Toothed Washer 1 pc.
Toothed Washer 1 pc.
Specification Table

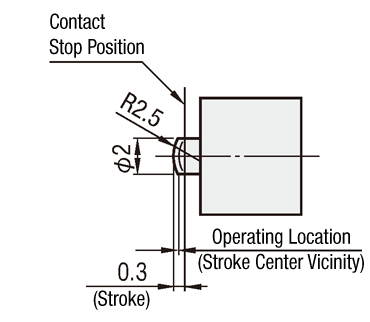

| Part Number |
| MSTW−SD MSTF−L MSN−S MSNF−L MSPM−LD MSNW−L MSNWF−S |
| Part Number | Stroke | Operating Point | Contact Force | Allowable Static Load | Shock Resistance Energy | Contact Logic |
| Type | ||||||
| MSTW | 0.5 | Stroke Center Vicinity (Repeatability 0.01) | 0.8 N | 3000 N | 0.2J | NO (Normally Open) |
| MSTF | ||||||
| MSN | ||||||
| MSNF | ||||||
| MSPM |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Loading...
Specifications/Overview
| (Common to "with LED" Type) | ||
| Switch body | Switch body | |
 |  | |
| Cable: Loose Wire (－SD) | Cable: Cab Tire (－LD) |
[ ! ] Use under 24 V DC/10 mA or less.
[ ! ] Use within the contact ratings.
[ ! ] Do not pull or twist the loose wires with 15 N or more. Also do not pull or twist the cab tire cords with 30 N or more.

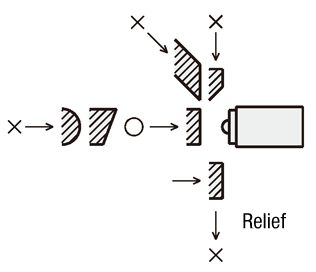

" ! " Contact Method of Detected Subject (Common)
| ·Except Ball Contact Type (Declination within ±3°) | ·Ball Contact Type (All Orientations) | |
 |  |
App. Example
Set Screw(MSWF)
Double Nut Tightened
(MSNW)
Screw-In
(MSNWF)
■Structure of Waterproof Type (IP67)
·Use within the contact ratings.
·Do not pull or twist the loose wires with 15 N or more. Also do not pull or twist the cab tire cords with 30 N or more.
Basic information
| Type | Ball Contact, Ball Plunger Type / With Stopper | Main Body Shape | Screw Type | Tip Shape | Needle Type |
|---|---|---|---|---|---|
| Environment | Drip-Proof Type | Body Material | EN 1.4005 Equiv. | Contact Material | EN 1.4125 Equiv. |
| Stroke(mm) | 0.5 | Contact Point Type | Contact Type NO | Screw Nominal (M) | M10x0.75 |
| Operating Temperature Range(°C) | 0::80 | Operating Point(mm) | 0.25 | Repeatability | 0.01mm |
| Contact Force(N) | 0.8 | Contact Point Accuracy Life(x 10K times) | 1000 | Allowable Static Load(N) | 3000 |
| Impact Resistant Energy(J) | 0.2 | Tip Dia. | Ø3 | Protection Structure | IP44 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Complementary Products
-
Rails for Switches and Sensors / Aluminum Type / L Dimension Selectable
MISUMI Standard Price : 4.78 € Shipping Days: Same day
-
Switch Flags / Setscrew / Flat with Tapped Hole
MISUMI Standard Price : 4.69 € Shipping Days: 5 Days
