Slot Pins for Inspection Jigs / Stepped and Threaded Type

Slot Pins for Inspection Jigs / Stepped and Threaded Type

Click on this image to zoom in.

Click on this image to zoom in.

  • Slot Pins for Inspection Jigs / Stepped and Threaded Type
  • Slot Pins for Inspection Jigs / Stepped and Threaded Type

MISUMI

MISUMI

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

[ ! ]

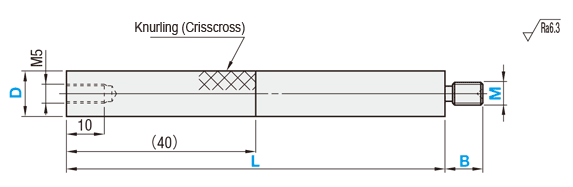

Slot Pins for Inspection Components - Threaded Pins: Related Image
[ ! ] When L is less than 40, entire length is knurled.
[ ! ] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m. However, tapped depth is excluded.
[M] MaterialType
EN 1.1191 Equiv.KJPND
EN 1.4301 Equiv.KJPNDS

Specification Table

Part Number (TYPE·D)—L—M—B
KJPND10—L80—M4—B10
(Threaded Pin)
Part NumberL
10 mm Increments		M
Selection		B
1 mm Increments
TYPED
(EN 1.1191 Equiv.)
KJPND
(EN 1.4301 Equiv.)
KJPNDS		1030 to 150456810S105 to 15
12
16
[!] S10 is fine thread (pitch 1.25). Others are coarse.

Alterations

Part Number—P—M—L—B—Z— (CH·KH, etc.)
KJPGLM25—P20—M12—L75—B25—Z50− KH
Part Number—L—M—B—(STC)
KJPND10—L80—M4—B10—STC
AlterationsCodeSpec.
Engraving of S Dimension
Slot Pins for Inspection Components - Threaded Pins: Related Image		KHSMachines flats on knurled head and engraves S dimension.
[ ! ] Engraved on the reverse side when combined with KH.
[ ! ] Applicable to Threaded Straight Long Type only
Engraving of P Dimension
Slot Pins for Inspection Components - Threaded Pins: Related Image		KHMachines flats on knurled head and engraves P dimension (with the character orientation arbitrary).

[ ! ] Engraved on the reverse side when combined with KHS.

[ ! ] Applicable to Threaded Straight Long Type only

AlterationsCodeSpec.
Chain
Slot Pins for Inspection Components - Threaded Pins: Related Image		CHLoss-proof chain (length 600 mm) is attached to gauge body.



[ ! ] Applicable to Threaded Straight Long Type only

Additional Surface Treatment
(Black Oxide)		STCAdds black oxide surface treatment.

[ NG ] Not applicable to EN 1.4301 Equiv.

Caution when making alterations to engraving (KHS, KH)
Slot Pins for Inspection Components - Threaded Pins: Related Image
[ ! ] If the pin and the knurled part are joined with an adhesive,
10 mm of the tip is not machined flat because the tip is thin.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
KJPND10-L[30-150/10]-M[4,​5,​6,​8,​10]-B[5-15/1]
KJPND10-L[30-150/10]-MS10-B[5-15/1]
KJPND12-L[30-150/10]-M[4,​5,​6,​8,​10]-B[5-15/1]
KJPND12-L[30-150/10]-MS10-B[5-15/1]
KJPND16-L[30-150/10]-M[4,​5,​6,​8,​10]-B[5-15/1]
KJPND16-L[30-150/10]-MS10-B[5-15/1]
KJPNDS10-L[30-150/10]-M[4,​5,​6,​8,​10]-B[5-15/1]
KJPNDS10-L[30-150/10]-MS10-B[5-15/1]
KJPNDS12-L[30-150/10]-M[4,​5,​6,​8,​10]-B[5-15/1]
KJPNDS12-L[30-150/10]-MS10-B[5-15/1]
KJPNDS16-L[30-150/10]-M[4,​5,​6,​8,​10]-B[5-15/1]
KJPNDS16-L[30-150/10]-MS10-B[5-15/1]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSMaterial Outer Dia. D
(Ø) 		B
(mm) 		L
(mm) 		Thread Dia. Selection (Coarse) [M]
(mm) 		Thread Dia. Selection (Fine) [MS]
(mm)
1 6 Days 10[Steel] EN 1.1191 Equiv.105 ～ 1530 ～ 1504 ～ 10-
1 6 Days 10[Steel] EN 1.1191 Equiv.105 ～ 1530 ～ 150-10
1 6 Days 10[Steel] EN 1.1191 Equiv.125 ～ 1530 ～ 1504 ～ 10-
1 6 Days 10[Steel] EN 1.1191 Equiv.125 ～ 1530 ～ 150-10
1 6 Days 10[Steel] EN 1.1191 Equiv.165 ～ 1530 ～ 1504 ～ 10-
1 6 Days 10[Steel] EN 1.1191 Equiv.165 ～ 1530 ～ 150-10
1 6 Days 10[Stainless Steel] EN 1.4301 Equiv.105 ～ 1530 ～ 1504 ～ 10-
1 6 Days 10[Stainless Steel] EN 1.4301 Equiv.105 ～ 1530 ～ 150-10
1 6 Days 10[Stainless Steel] EN 1.4301 Equiv.125 ～ 1530 ～ 1504 ～ 10-
1 6 Days 10[Stainless Steel] EN 1.4301 Equiv.125 ～ 1530 ～ 150-10
1 6 Days 10[Stainless Steel] EN 1.4301 Equiv.165 ～ 1530 ～ 1504 ～ 10-
1 6 Days 10[Stainless Steel] EN 1.4301 Equiv.165 ～ 1530 ～ 150-10

Loading...

  1. 1

App. Example



Basic information

Type Slot Pin Shape Straight Tip Shape Circular Shape
Tip Type Threads Shape of Stepped Section Circular Shape Hardness No Hardened
