Inspection Jigs / Angle Plate Units
[Features] The arm section can be machined as required and used to measure the shape of the workpiece.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
| Horizontal Rest Position | Vertical Rest Position | |
| JIF (Set) | JIL (Set) | |
| JINF (No Arm) | JINL (No Arm) | |
 |  |

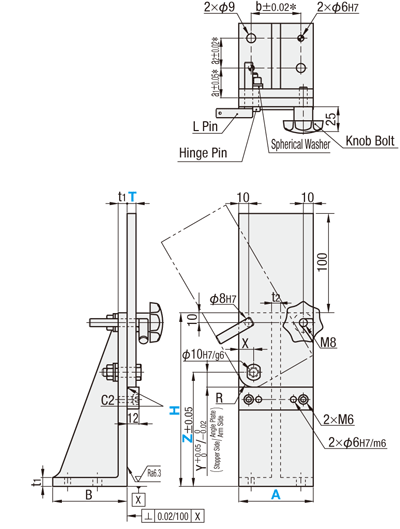

[!] The drawing is for a right-facing configuration. Mounting hole position on bottom is common to right and left facing types. Specify Alteration SYM to change the mounting hole positions symmetrically.
[ ! ] Height of pivot hole (Z dimension) is selectable.
[!] Set products are pair engraved on the Angle Plates and Arms. Use identically engraved pair.
[ ! ] Stopper is assembled, but the arm is not assembled prior to shipping.
[ ! ] For No Arm Type, L pin hole on angle plate is pilot hole (ø7.8).
[ ! ] For Angle Plate Support Stand JIST and Angle Plate JIP, please refer to the e-catalog.
[M] Material
Angle Plate: EN−JL 1040 Equiv.
Arm Stopper
: EN 1.0038 Equiv.
[A]Accessory (MISUMI P/N)
■For Pivot Hole: Hinge pin (when H = - 200) CLBGNU10−24−FC21
(When H = 250) CLBGNU10−27−FC21
Spherical Washer No MISUMI P/N
EN 1.1191 Equiv./32−38HRC/
Black Oxide
(MISUMI P/N)
■Arm fixing L pin (straight) KJLSB8
(Tapered) KJLB8
Knob bolt NKSM8
■Fixing stopper bolt 2 CB6−20
Dowel pin 2 MSTM6−20
Angle Plate: EN−JL 1040 Equiv.
Arm Stopper
: EN 1.0038 Equiv.
[A]Accessory (MISUMI P/N)
■For Pivot Hole: Hinge pin (when H = - 200) CLBGNU10−24−FC21
(When H = 250) CLBGNU10−27−FC21
Spherical Washer No MISUMI P/N
EN 1.1191 Equiv./32−38HRC/
Black Oxide
(MISUMI P/N)
■Arm fixing L pin (straight) KJLSB8
(Tapered) KJLB8
Knob bolt NKSM8
■Fixing stopper bolt 2 CB6−20
Dowel pin 2 MSTM6−20
Specification Table
| Part Number | — | H | — | T | — | Z | — | L Pin |
| JIFL75 JINFR50 | — — | H150 H100 | — | T9 | — — | Z110 Z50 | — — | TP ST |
| Part Number | H Selection | T Selection | Z 5 mm Increments | L Pin Type | Pivot Position, Arm Dimension | Angle Plate Dimension | Mounting Hole Position Dimension | |||||||||
| X | Y·R | B | t1 | t2 | a1 | a2 | b | |||||||||
| Type | Direction | A | Horizontal Rest | Vertical Rest | ||||||||||||
| Horizontal Rest | Vertical Rest | |||||||||||||||
| JIF JIL JINF JINL | (For Left Facing) L (For Right Facing) R | 50 | 100 | 9 12 | 45 to 60 | 60 | (Tapered) TP (Straight) ST | 10 | 10 | 10 | 50 | 15 | 8 | 25 | 15 | 30 |
| 150 | 65 to 110 | 60 to 110 | ||||||||||||||
| 75 | 150 | 55 to 120 | 60 to 90 | 15 | 20 | 15 | 75 | 14 | 30 | 30 | 50 | |||||
| 200 | 125 to 170 | 60 to 140 | ||||||||||||||
| 100 | 200 | 55 to 170 | 60 to 120 | 120 | 50 | 50 | 70 | |||||||||
| 250 | 175 to 220 | 60 to 170 | 18 | 15 | ||||||||||||
Alterations
| Part Number | — | H | — | T | — | Z | — | L Pin | — | (SYM·NNA) |
| JIFL75 | — | H150 | — | T9 | — | Z110 | — | TP | — | SYM |
| Alterations | Code | Spec. |
Position of Bottom Face Mounting Hole | SYM | Positions the dowel hole and mounting hole symmetrically. |
No Stopper Dowel Hole | NNA | Eliminates dowel holes on stopper part (2-ø6) and assembles L pin hole temporarily at ø7.8. (Dowel Pin and L Pin are included) Adjust by spot fixing before use. (Adjustments required) |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
| Part Number | Minimum order quantity | Volume Discount | RoHS | Set Product Configurable | Application | Direction | A (mm) | H (mm) | L Pin | T (mm) | Z (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 9 Days | 10 | Set | For Flat Arm | L (Left Direction) | 50 | 100 | Straight [ST] / Taper [TP] | 9 ～ 12 | 45 ～ 60 | ||
| 1 | 9 Days | 10 | Set | For Flat Arm | L (Left Direction) | 50 | 150 | Straight [ST] / Taper [TP] | 9 ～ 12 | 65 ～ 110 | ||
| 1 | 9 Days | 10 | Set | For Flat Arm | L (Left Direction) | 75 | 150 | Straight [ST] / Taper [TP] | 9 ～ 12 | 55 ～ 120 | ||
| 1 | 9 Days | 10 | Set | For Flat Arm | L (Left Direction) | 75 | 200 | Straight [ST] / Taper [TP] | 9 ～ 12 | 125 ～ 170 | ||
| 1 | 9 Days | 10 | Set | For Flat Arm | L (Left Direction) | 100 | 200 | Straight [ST] / Taper [TP] | 9 ～ 12 | 55 ～ 170 | ||
| 1 | 9 Days | 10 | Set | For Flat Arm | L (Left Direction) | 100 | 250 | Straight [ST] / Taper [TP] | 9 ～ 12 | 175 ～ 220 | ||
| 1 | 9 Days | 10 | Set | For Flat Arm | R (Right Direction) | 50 | 100 | Straight [ST] / Taper [TP] | 9 ～ 12 | 45 ～ 60 | ||
| 1 | 9 Days | 10 | Set | For Flat Arm | R (Right Direction) | 50 | 150 | Straight [ST] / Taper [TP] | 9 ～ 12 | 65 ～ 110 | ||
| 1 | 9 Days | 10 | Set | For Flat Arm | R (Right Direction) | 75 | 150 | Straight [ST] / Taper [TP] | 9 ～ 12 | 55 ～ 120 | ||
| 1 | 9 Days | 10 | Set | For Flat Arm | R (Right Direction) | 75 | 200 | Straight [ST] / Taper [TP] | 9 ～ 12 | 125 ～ 170 | ||
| 1 | 9 Days | 10 | Set | For Flat Arm | R (Right Direction) | 100 | 200 | Straight [ST] / Taper [TP] | 9 ～ 12 | 55 ～ 170 | ||
| 1 | 9 Days | 10 | Set | For Flat Arm | R (Right Direction) | 100 | 250 | Straight [ST] / Taper [TP] | 9 ～ 12 | 175 ～ 220 | ||
| 1 | 9 Days | 10 | Set | For L-Shaped Arm | L (Left Direction) | 50 | 100 | Straight [ST] / Taper [TP] | 9 ～ 12 | 60 | ||
| 1 | 9 Days | 10 | Set | For L-Shaped Arm | L (Left Direction) | 50 | 150 | Straight [ST] / Taper [TP] | 9 ～ 12 | 60 ～ 110 | ||
| 1 | 9 Days | 10 | Set | For L-Shaped Arm | L (Left Direction) | 75 | 150 | Straight [ST] / Taper [TP] | 9 ～ 12 | 60 ～ 90 | ||
| 1 | 9 Days | 10 | Set | For L-Shaped Arm | L (Left Direction) | 75 | 200 | Straight [ST] / Taper [TP] | 9 ～ 12 | 60 ～ 140 | ||
| 1 | 9 Days | 10 | Set | For L-Shaped Arm | L (Left Direction) | 100 | 200 | Straight [ST] / Taper [TP] | 9 ～ 12 | 60 ～ 120 | ||
| 1 | 9 Days | 10 | Set | For L-Shaped Arm | L (Left Direction) | 100 | 250 | Straight [ST] / Taper [TP] | 9 ～ 12 | 60 ～ 170 | ||
| 1 | 9 Days | 10 | Set | For L-Shaped Arm | R (Right Direction) | 50 | 100 | Straight [ST] / Taper [TP] | 9 ～ 12 | 60 | ||
| 1 | 9 Days | 10 | Set | For L-Shaped Arm | R (Right Direction) | 50 | 150 | Straight [ST] / Taper [TP] | 9 ～ 12 | 60 ～ 110 | ||
| 1 | 9 Days | 10 | Set | For L-Shaped Arm | R (Right Direction) | 75 | 150 | Straight [ST] / Taper [TP] | 9 ～ 12 | 60 ～ 90 | ||
| 1 | 9 Days | 10 | Set | For L-Shaped Arm | R (Right Direction) | 75 | 200 | Straight [ST] / Taper [TP] | 9 ～ 12 | 60 ～ 140 | ||
| 1 | 9 Days | 10 | Set | For L-Shaped Arm | R (Right Direction) | 100 | 200 | Straight [ST] / Taper [TP] | 9 ～ 12 | 60 ～ 120 | ||
| 1 | 9 Days | 10 | Set | For L-Shaped Arm | R (Right Direction) | 100 | 250 | Straight [ST] / Taper [TP] | 9 ～ 12 | 60 ～ 170 | ||
| 1 | 9 Days | 10 | No Arm | For Flat Arm | L (Left Direction) | 50 | 100 | Straight [ST] / Taper [TP] | - | 45 ～ 60 | ||
| 1 | 9 Days | 10 | No Arm | For Flat Arm | L (Left Direction) | 50 | 150 | Straight [ST] / Taper [TP] | - | 65 ～ 110 | ||
| 1 | 9 Days | 10 | No Arm | For Flat Arm | L (Left Direction) | 75 | 150 | Straight [ST] / Taper [TP] | - | 55 ～ 120 | ||
| 1 | 9 Days | 10 | No Arm | For Flat Arm | L (Left Direction) | 75 | 200 | Straight [ST] / Taper [TP] | - | 125 ～ 170 | ||
| 1 | 9 Days | 10 | No Arm | For Flat Arm | L (Left Direction) | 100 | 250 | Straight [ST] / Taper [TP] | - | 175 ～ 220 | ||
| 1 | 9 Days | 10 | No Arm | For Flat Arm | R (Right Direction) | 50 | 100 | Straight [ST] / Taper [TP] | - | 45 ～ 60 | ||
| 1 | 9 Days | 10 | No Arm | For Flat Arm | R (Right Direction) | 50 | 150 | Straight [ST] / Taper [TP] | - | 65 ～ 110 | ||
| 1 | 9 Days | 10 | No Arm | For Flat Arm | R (Right Direction) | 75 | 150 | Straight [ST] / Taper [TP] | - | 55 ～ 120 | ||
| 1 | 9 Days | 10 | No Arm | For Flat Arm | R (Right Direction) | 75 | 200 | Straight [ST] / Taper [TP] | - | 125 ～ 170 | ||
| 1 | 9 Days | 10 | No Arm | For Flat Arm | R (Right Direction) | 100 | 200 | Straight [ST] / Taper [TP] | - | 55 ～ 170 | ||
| 1 | 9 Days | 10 | No Arm | For Flat Arm | R (Right Direction) | 100 | 250 | Straight [ST] / Taper [TP] | - | 175 ～ 220 | ||
| 1 | 9 Days | 10 | No Arm | For L-Shaped Arm | L (Left Direction) | 50 | 100 | Straight [ST] / Taper [TP] | - | 60 | ||
| 1 | 9 Days | 10 | No Arm | For L-Shaped Arm | L (Left Direction) | 50 | 150 | Straight [ST] / Taper [TP] | - | 60 ～ 110 | ||
| 1 | 9 Days | 10 | No Arm | For L-Shaped Arm | L (Left Direction) | 75 | 150 | Straight [ST] / Taper [TP] | - | 60 ～ 90 | ||
| 1 | 9 Days | 10 | No Arm | For L-Shaped Arm | L (Left Direction) | 75 | 200 | Straight [ST] / Taper [TP] | - | 60 ～ 140 | ||
| 1 | 9 Days | 10 | No Arm | For L-Shaped Arm | L (Left Direction) | 100 | 200 | Straight [ST] / Taper [TP] | - | 60 ～ 120 | ||
| 1 | 9 Days | 10 | No Arm | For L-Shaped Arm | L (Left Direction) | 100 | 250 | Straight [ST] / Taper [TP] | - | 60 ～ 170 | ||
| 1 | 9 Days | 10 | No Arm | For L-Shaped Arm | R (Right Direction) | 50 | 100 | Straight [ST] / Taper [TP] | - | 60 | ||
| 1 | 9 Days | 10 | No Arm | For L-Shaped Arm | R (Right Direction) | 50 | 150 | Straight [ST] / Taper [TP] | - | 60 ～ 110 | ||
| 1 | 9 Days | 10 | No Arm | For L-Shaped Arm | R (Right Direction) | 75 | 150 | Straight [ST] / Taper [TP] | - | 60 ～ 90 | ||
| 1 | 9 Days | 10 | No Arm | For L-Shaped Arm | R (Right Direction) | 75 | 200 | Straight [ST] / Taper [TP] | - | 60 ～ 140 | ||
| 1 | 9 Days | 10 | No Arm | For L-Shaped Arm | R (Right Direction) | 100 | 200 | Straight [ST] / Taper [TP] | - | 60 ～ 120 | ||
| 1 | 9 Days | 10 | No Arm | For L-Shaped Arm | R (Right Direction) | 100 | 250 | Straight [ST] / Taper [TP] | - | 60 ～ 170 |
Loading...
Configure
Basic Attributes
-
Set Product Configurable
- No Arm
- Set
-
Application
- For Flat Arm
- For L-Shaped Arm
-
Direction
- L (Left Direction)
- R (Right Direction)
-
A(mm)
- 50
- 75
- 100
-
H(mm)
- 100
- 150
- 200
- 250
-
L Pin
- Straight [ST]
- Taper [TP]
-
T(mm)
-
Z(mm)
-
Type
- JIFL
- JIFR
- JILL
- JILR
- JINFL
- JINFR
- JINLL
- JINLR
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
