Clamp L Shape Bracket
Click on this image to zoom in.
Click on this image to zoom in.
[Features] It can be used with a toggle clamp with a width of 6 on a clamped part and a horizontal type toggle clamp.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

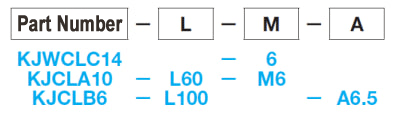

KJCLB6-L[50,75,100,125,150]-A[6.5,8.5]
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
KJCLB
[M]Material: EN 1.0038 Equiv. black leather
Specification Table
| Part Number | L Selection | Hole Dia. | Hole Pitch | |||
| Type | No. | A Selection | B | a | b | |
| KJCLB | 6 | 50 75 100 125 150 | 6.5 | 19 | 13.5 | 9 |
| 8.5 | 21 | 12.5 | 9.5 | |||
Alterations
| Alterations | Code | Spec. |
| Additional Surface Treatment | STC | Adds black oxide surface treatment. |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Part Number
|
|---|
| KJCLB6-L[50,75,100,125,150]-A[6.5,8.5] |
| Part Number | Minimum order quantity | Volume Discount | RoHS | A (mm) | L (mm) | |
|---|---|---|---|---|---|---|
| 1 | 7 Days | 10 | 6.5 ～ 8.5 | 50 ～ 150 |
Loading...
App. Example
The bracket can be used with the 6 mm
wide straddling clamps and side mount type clamps.
Basic information
| Product | Washers | Body Material | EN 1.0038 Equiv. | No. (Thickness)(mm) | 6(6) |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
