[Precision] XYZ-Axis / Linear Ball
![[Precision] XYZ-Axis / Linear Ball](http://uk.misumi-ec.com/linked/material/mech/MSM1/PHOTO/10300195420.jpg?$product_main$)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
- Technical Information
Dimensional Drawings

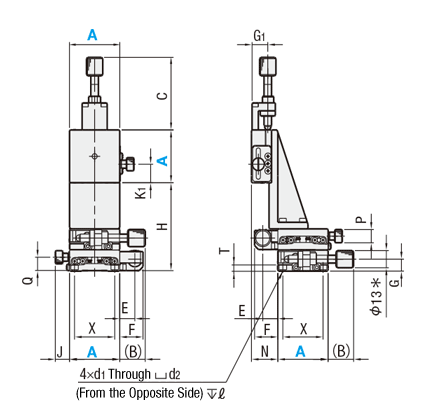

| ■Micrometer Head XYZSG (25 ≤ A ≤ 80) XYZSGB (Black: A = 25, 40, 60, 80) ![[High Precision]XYZ-axis linear ball slide micrometer head / feed screw dimensional drawing 1](http://uk.misumi-ec.com/linked/item/10300195420/img/drw_20.gif) | ■Feed Screw (Lead 0.5) XYZSCG (25 ≤ A ≤ 80) ![[High Precision]XYZ-axis linear ball slide micrometer head / feed screw dimensional drawing 2](http://uk.misumi-ec.com/linked/item/10300195420/img/drw_21.gif) |
The drawing shows the micrometer in stroke center state.
| Type | Main Body | Ball | Spring | Micrometer Head Bracket | Tip Holder | |||||
| Micrometer Head | Feed Screw | Material | Surface Treatment | Material | Hardness | Material | Material | Surface Treatment | Material | Surface Treatment |
| XYZSG | XYZSCG | EN 1.4125 Equiv. | Electroless Nickel Plating | EN 1.4125 Equiv. | 58HRC or more | EN 1.4301 Equiv. (WPB) | EN AW−5052 Equiv. | Clear Anodize | EN 1.4305 Equiv. | — |
| XYZSGB | — | EN 1.4125 Equiv. | Low Temp. Black Chrome Plating | EN 1.4125 Equiv. | 58HRC or more | EN 1.4301 Equiv. (WPB) | EN AW−5052 Equiv. | Black Anodize | EN 1.4305 Equiv. | Low Temp. Black Chrome Plating |
Specification Table
| Part Number |
| XYZSG40 |
| Part Number | Front View | Side View | Accessories (4 pcs.) | ||||||||||||||||||||
| Type | A | H | (C) | K1 | Q | J | (B) | Travel Distance (mm) | E | F | N | T | D | G | P | G1 | X | d1 | d2 | ℓ | Type M−L | ||
| Micrometer | Feed Screw | Micrometer | Feed Screw | ||||||||||||||||||||
| XYZSG XYZSCG XYZSGB (* only) | 25* | 36.5 | 37 | 23 | 10 | 8.5 | 6.8 | 25 | 11 | ±3.2 | 7 | 11.7 | 7 | 3.7 | 9.3 | 7 | 6 | 10 | 20 | 2.5 | 4.2 | 2.5 | SCB2−4 |
| 40* | 67 | 58.5 | 55 | 14 | 10.5 | 11.3 | 23.5 | 20.3 | ±6.5 | 12 | 18.5 | 5 | 4.5 | 13 | 8.9 | 10 | 13 | 32 | 3.5 | 6 | 3.5 | SCB3−6 | |
| 50 | 62 | 58.5 | 55 | 19 | 10.5 | 11.3 | 18.5 | 15.3 | ±6.5 | 12 | 18.5 | 20 | 4.5 | 13 | 8.9 | 10 | 13 | 40 | 3.5 | 6 | 3.5 | SCB3−6 | |
| 60* | 57 | 58.5 | 55 | 24 | 10.5 | 11.3 | 13.5 | 10.3 | ±6.5 | 12 | 18.5 | 21 | 5 | 13 | 8.9 | 10 | 13 | 50 | 4.5 | 8 | 4 | SCB4−6 | |
| 70 | 61 | 58.5 | 55 | 23.5 | 11.5 | 11.3 | 14 | 10.8 | ±6.5 | 12 | 18.5 | 12 | 6 | 13 | 10 | 10 | 14 | 60 | 4.5 | 8 | 4.5 | SCB4−6 | |
| 80* | 60 | 96 | 55 | 25 | 14.5 | 11.3 | 43.5 | 10 | ±12.5*1 | 17 | 26*2 | 20 | 6.5 | 18 | 10.8 | 10 | 16.5 | 70 | 4.5 | 8 | 5.3 | SCB4−6 | |
* 1. XYZSCG80 stroke is ±6.5 mm.
* 2. When feed screw XYZSCG A = 80, F = 23.5
○ Performance
| Part Number | Stage Surface (mm) | Load Capacity (N)* | Travel Accuracy | Allowable Moment Load (N⋅m) | Moment Rigidity ("/N⋅cm) | Weight (kg) | |||||||
| Type | A | Straightness | Pitching | Yawing | Pitching | Yawing | Rolling | Pitching | Yawing | Rolling | |||
| XYZSG XYZSCG XYZSGB (* only) | 25* | 25 × 25 | 9.8 (14.7) | 3µm | 30″ | 25″ | 2.0 | 2.0 | 2.0 | 4.10 | 3.30 | 4.90 | 0.37 |
| 40* | 40 × 40 | 49 (49) | 1µm Black linear is 3 µm | 25″ | 15″ | 5.0 | 5.0 | 5.0 | 0.98 | 0.91 | 1.05 | 0.78 | |
| 50 | 50 × 50 | 6.0 | 6.0 | 6.0 | 0.38 | 0.37 | 0.39 | 1.00 | |||||
| 60* | 60 × 60 | 9.0 | 9.0 | 9.0 | 0.21 | 0.21 | 0.21 | 1.38 | |||||
| 70 | 70 × 70 | 12.9 | 12.9 | 12.9 | 0.14 | 0.13 | 0.15 | 2.00 | |||||
| 80* | 80 × 80 | 3µm | 17.7 | 17.7 | 17.7 | 0.10 | 0.10 | 0.10 | 3.00 | ||||
Knob Cover HDCVR13 (Sold separately): ø13 micrometer knob diameter can be increased by installing the cover.
Extension Cover HDEXT13 (Sold separately): Feed knob of ø13 micrometer head and feed screw can be extended.
* In the MISUMI catalog, the static load value is provided in () for the referential purpose.
Alterations
![[High Precision]XYZ-Axis Linear Ball Slide - Micrometer Head / Feed Screw](http://content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110300195420/110300195420_007_20230801115852.gif) | Part Number | — | (C·CU·A·R) |
| XYZSG40 | — | C |
| Alterations | Position of Micrometer Head and Feed Screw | |||
| Spec. | Side Up![[High Precision]XYZ-Axis Linear Ball Slide - Micrometer Head / Feed Screw](http://content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110300195420/110300195420_003_20230801115852.gif) The micrometer heads may interfere with the stage main body during stroke motion on any axis. Please check and verify the usable stroke ranges with the CAD data. | Side Down![[High Precision]XYZ-Axis Linear Ball Slide - Micrometer Head / Feed Screw](http://content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110300195420/110300195420_004_20230801115852.gif) Not applicable to XYZSGB | Center![[High Precision]XYZ-Axis Linear Ball Slide - Micrometer Head / Feed Screw](http://content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110300195420/110300195420_005_20230801115852.gif) | Reversed![[High Precision]XYZ-Axis Linear Ball Slide - Micrometer Head / Feed Screw](http://content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110300195420/110300195420_006_20230801115852.gif) |
| Code | C | CU | A | R |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| XYZSCG25 |
| XYZSCG40 |
| XYZSCG50 |
| XYZSCG60 |
| XYZSCG70 |
| XYZSCG80 |
| XYZSG25 |
| XYZSG40 |
| XYZSG50 |
| XYZSG60 |
| XYZSG70 |
| XYZSG80 |
| XYZSGB25 |
| XYZSGB40 |
| XYZSGB60 |
| XYZSGB80 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Table Size (Length) L (Range Selectable) (mm) | Table Size (Width) W (Range Selectable) (mm) | Load Capacity (Range Selectable) (N) | Stroke (Distance along X-Axis) (Range Selectable) (mm) | Stroke (Distance along Y-Axis) (Range Selectable) (mm) | Stroke (Distance along Z-Axis) (Range Selectable) (mm) | Feeding Method | Table Surface Treatment | Table Size (Length) L (mm) | Table Size (Width) W (mm) | Allowable Load (N) | Stroke (X Distance) (mm) | Stroke (Y Distance) (mm) | Stroke (Z Distance) (mm) | Table Straightness (µm) | Moment Rigidity (Pitching) ("/N•cm) | Moment Rigidity (Yawing) ("/N•cm) | Moment Rigidity (Rolling) ("/N•cm) | Feeding Method (Micrometer Type) | Feeding Method (Feed Screw Type) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
671.26 € | 1 | 7 Days | 10 | Up to 25 | Up to 25 | 5 to 30 | Up to ±10mm | Up to ±10mm | Up to ±10mm | Feed Screw | Electroless Nickel Plating | 25 | 25 | 9.8 | ±3.2 | ±3.2 | ±3.2 | 3 | 4.1 | 3.3 | 4.9 | - | Knob Operation | ||
769.48 € | 1 | 7 Days | 10 | 26 to 40 | 26 to 40 | 30.1 to 50 | Up to ±10mm | Up to ±10mm | Up to ±10mm | Feed Screw | Electroless Nickel Plating | 40 | 40 | 49 | ±6.5 | ±6.5 | ±6.5 | 1 | 0.98 | 0.91 | 1.05 | - | Knob Operation | ||
851.36 € | 1 | 7 Days | 10 | 41 to 60 | 41 to 60 | 30.1 to 50 | Up to ±10mm | Up to ±10mm | Up to ±10mm | Feed Screw | Electroless Nickel Plating | 50 | 50 | 49 | ±6.5 | ±6.5 | ±6.5 | 1 | 0.38 | 0.37 | 0.39 | - | Knob Operation | ||
851.36 € | 1 | 7 Days | 10 | 41 to 60 | 41 to 60 | 30.1 to 50 | Up to ±10mm | Up to ±10mm | Up to ±10mm | Feed Screw | Electroless Nickel Plating | 60 | 60 | 49 | ±6.5 | ±6.5 | ±6.5 | 1 | 0.21 | 0.21 | 0.21 | - | Knob Operation | ||
1,064.20 € | 1 | 7 Days | 10 | 61 to 90 | 61 to 90 | 30.1 to 50 | Up to ±10mm | Up to ±10mm | Up to ±10mm | Feed Screw | Electroless Nickel Plating | 70 | 70 | 49 | ±6.5 | ±6.5 | ±6.5 | 1 | 0.14 | 0.13 | 0.15 | - | Knob Operation | ||
1,113.31 € | 1 | 7 Days | 10 | 61 to 90 | 61 to 90 | 30.1 to 50 | Up to ±10mm | Up to ±10mm | Up to ±10mm | Feed Screw | Electroless Nickel Plating | 80 | 80 | 49 | ±6.5 | ±6.5 | ±6.5 | 3 | 0.1 | 0.1 | 0.1 | - | Knob Operation | ||
794.06 € | 1 | 7 Days | 10 | Up to 25 | Up to 25 | 5 to 30 | Up to ±10mm | Up to ±10mm | Up to ±10mm | - | Electroless Nickel Plating | 25 | 25 | 9.8 | ±3.2 | ±3.2 | ±3.2 | 3 | 4.1 | 3.3 | 4.9 | Standard | - | ||
867.73 € | 1 | 7 Days | 10 | 26 to 40 | 26 to 40 | 30.1 to 50 | Up to ±10mm | Up to ±10mm | Up to ±10mm | - | Electroless Nickel Plating | 40 | 40 | 49 | ±6.5 | ±6.5 | ±6.5 | 1 | 0.98 | 0.91 | 1.05 | Standard | - | ||
925.02 € | 1 | 7 Days | 10 | 41 to 60 | 41 to 60 | 30.1 to 50 | Up to ±10mm | Up to ±10mm | Up to ±10mm | - | Electroless Nickel Plating | 50 | 50 | 49 | ±6.5 | ±6.5 | ±6.5 | 1 | 0.38 | 0.37 | 0.39 | Standard | - | ||
949.59 € | 1 | 7 Days | 10 | 41 to 60 | 41 to 60 | 30.1 to 50 | Up to ±10mm | Up to ±10mm | Up to ±10mm | - | Electroless Nickel Plating | 60 | 60 | 49 | ±6.5 | ±6.5 | ±6.5 | 1 | 0.21 | 0.21 | 0.21 | Standard | - | ||
1,064.20 € | 1 | 7 Days | 10 | 61 to 90 | 61 to 90 | 30.1 to 50 | Up to ±10mm | Up to ±10mm | Up to ±10mm | - | Electroless Nickel Plating | 70 | 70 | 49 | ±6.5 | ±6.5 | ±6.5 | 1 | 0.14 | 0.13 | 0.15 | Standard | - | ||
1,162.43 € | 1 | 7 Days | 10 | 61 to 90 | 61 to 90 | 30.1 to 50 | ±10 to 30mm | ±10 to 30mm | ±10 to 30mm | - | Electroless Nickel Plating | 80 | 80 | 49 | ±12.5 | ±12.5 | ±12.5 | 3 | 0.1 | 0.1 | 0.1 | Standard | - | ||
933.21 € | 1 | 9 Days | 10 | Up to 25 | Up to 25 | 5 to 30 | Up to ±10mm | Up to ±10mm | Up to ±10mm | - | LTBC Plating | 25 | 25 | 9.8 | ±3.2 | ±3.2 | ±3.2 | 3 | 4.1 | 3.3 | 4.9 | Standard | - | ||
990.51 € | 1 | 9 Days | 10 | 26 to 40 | 26 to 40 | 30.1 to 50 | Up to ±10mm | Up to ±10mm | Up to ±10mm | - | LTBC Plating | 40 | 40 | 49 | ±6.5 | ±6.5 | ±6.5 | 3 | 0.98 | 0.91 | 1.05 | Standard | - | ||
1,105.12 € | 1 | 9 Days | 10 | 41 to 60 | 41 to 60 | 30.1 to 50 | Up to ±10mm | Up to ±10mm | Up to ±10mm | - | LTBC Plating | 60 | 60 | 49 | ±6.5 | ±6.5 | ±6.5 | 3 | 0.21 | 0.21 | 0.21 | Standard | - | ||
1,375.27 € | 1 | 9 Days | 10 | 61 to 90 | 61 to 90 | 30.1 to 50 | ±10 to 30mm | ±10 to 30mm | ±10 to 30mm | - | LTBC Plating | 80 | 80 | 49 | ±12.5 | ±12.5 | ±12.5 | 3 | 0.1 | 0.1 | 0.1 | Standard | - |
Loading...
Basic information
| Z-Axis Stage Surface | Vertical | Table Material | EN 1.4125 Equiv. | Guiding Mechanism | Linear Ball |
|---|---|---|---|---|---|
| Through Hole (Table Center Hole) | Not Provided | Feed Knob Position | X, Y Axis Side, Z Axis Center | Clamp | Standard |
| Reversed | Standard | Feeding Method (Feeding Pitch)(mm) | 0.5 |
