Hinges for Gauge Device / Side Fixing
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Suitable for mounting dial gauges. Optional parts for the magnetic base.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
MGNBSD

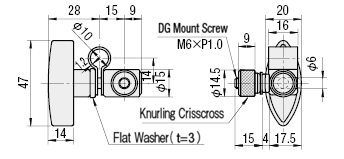

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
MGNBSD
| Name of Parts | [M] Material | [S] Surface Treatment |
| ø10 Section | EN 1.1525 Equiv. | Black Oxide |
| Main Body and Mounting Screw | EN 1.0715 Equiv. | Black Oxide |
| Knob | ABS | — |
Specification Table
| Part Number | — | D1 |
| MGNBS80 KSHL12 MGNBSH12 MGNBSD | — | 8 |
| Part Number | Weight (g) |
| MGNBSD | 70 |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Part Number
|
|---|
| MGNBSD |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | |
|---|---|---|---|---|---|
23.67 € | 1 | Available |
Same day
Stock | 10 |
Loading...
App. Example
■Dial Mount App. Example
Basic information
| Magnetic Base | Not Provided |
|---|
This page is Hinges for Gauge Device / Side Fixing, part number MGNBSD.
You can find the detail information about specifications and dimensions on part number MGNBSD.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
