Hinges for Gauge Device Stands
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog

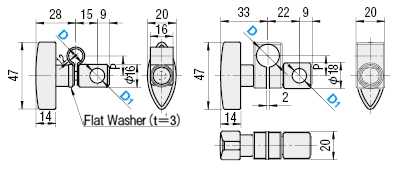

MGNBSH
■D = 10·12
■D = 16
| Name of Parts | [M] Material | [S] Surface Treatment |
| D (D = 10·12) | EN 1.1525 Equiv. | Black Oxide |
| D (D = 16), D1 | EN 1.0715 Equiv. | Black Oxide |
| Knob | ABS | — |
Specification Table
| Part Number | — | D1 |
| MGNBS80 KSHL12 MGNBSH12 MGNBSD | — | 8 |
| Part Number | D1 | P | Weight (g) | |
| Type | D | |||
| MGNBSH | 10 | 8 | 14 | 50 |
| 10 | ||||
| 12 | 8 | 16.5 | 50 | |
| 10 | ||||
| 16 | 10 | 14 | 100 | |
| 12 | ||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| MGNBSH10-8 |
| MGNBSH10-10 |
| MGNBSH12-8 |
| MGNBSH12-10 |
| MGNBSH16-10 |
| MGNBSH16-12 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | D (φ) | D1 (φ) | |
|---|---|---|---|---|---|---|---|
17.13 € | 1 | Available | 5 Days | 10 | 10 | 8 | |
17.13 € | 1 | Available |
Same day
Stock | 10 | 10 | 10 | |
19.64 € | 1 | Available | 5 Days | 10 | 12 | 8 | |
19.64 € | 1 | Available | 5 Days | 10 | 12 | 10 | |
32.50 € | 1 | Available | 5 Days | 10 | 16 | 10 | |
32.50 € | 1 | Available | 5 Days | 10 | 16 | 12 |
Loading...
App. Example
Basic information
| Magnetic Base | Not Provided |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
