[Precision] Post Locating / 1 Axis Slide Type with Crisscross Holes
![[Precision] Post Locating / 1 Axis Slide Type with Crisscross Holes](http://content.misumi-ec.com/image/upload/f_auto,t_product_main/v1/p/jp/product/series/110300203030/110300203030_001.jpg)
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
STLC48
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
- Technical Information

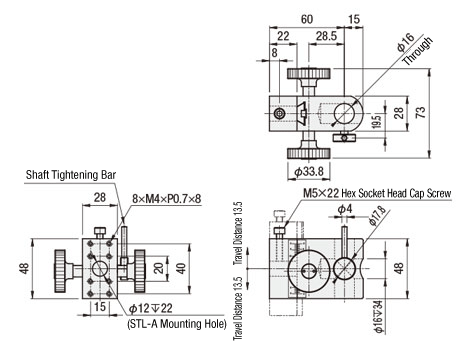

STLC48![[High Precision]Datum stage for post mounting 1 axis slide with crossed mounting bores dimensional drawing](//uk.misumi-ec.com/linked/item/10300203030/img/drw_11.gif)
Tightening the handwheel on the left side toward the stage surface with the left hand and tightening the handwheel on the right side toward the back (clockwise rotating direction) with the right hand, produces a slow movement, while loosening it toward the front produces a quick and smooth movement.
![[High Precision]Datum stage for post mounting 1 axis slide with crossed mounting bores dimensional drawing](http://uk.misumi-ec.com/linked/item/10300203030/img/drw_11.gif)
| Part Name | [ M ] Material | [ S ] Surface treatment |
| Stage | Aluminum Alloy | Black Anodize |
| Holder |
Specification Table
| Part Number |
| STLC48 |
| Part Number | Travel Distance (mm) | Travel per Rotation Travel Distance (mm) | Load Capacity (N) | Weight (kg) | |||
| Type | No. | X-Axis | Y-Axis | Z-Axis | |||
| STLC | 48 | 27 | — | — | 18 | 29.4 | 0.35 |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Part Number
|
|---|
| STLC48 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | |
|---|---|---|---|---|---|
438.77 € | 1 | 5 Days | 10 |
Loading...
App. Example
![[High Precision]Datum stage for post mounting 1 axis slide with crossed mounting bores app. example](http://content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110300203030/110300203030_003_20230801115852.jpg)
Basic information
| Table Material | Aluminum Alloy | Type | Z-Axis | Table Surface Treatment | Black Anodized Aluminum |
|---|---|---|---|---|---|
| Through Hole (Table Center Hole) | Not Provided | Load Capacity (Range)(N) | 5 to 30 | Allowable Load(N) | 29.4 |
| Table Size (Length) L(mm) | 48 | Table Size (Width) W(mm) | 28 | Table Size (Thickness) H (Range)(mm) | 50.1-60 |
| Table Size (Thickness) H(mm) | 60 | Stroke (X Distance)(mm) | ±13.5 | Feed Knob Position | Side |
| Clamp | Standard | Z-Axis Stage Surface | Z-Axis | Feeding Method (Rack & Pinion Type) | Standard |
| Feeding Method (with Vernier Scale) | With Vernier Scale |
This page is [Precision] Post Locating / 1 Axis Slide Type with Crisscross Holes, part number STLC48.
You can find the detail information about specifications and dimensions on part number STLC48.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
