Warning / Danger Triangular Stickers【1-10 Pieces Per Package】
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog

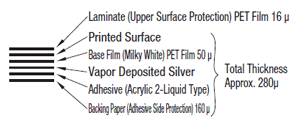

| Material Structure |
 | LRS LRM |  |
LRM Nominal Electric Shock
01 High Temperature
06 Corrosive
11 Cautions
02 Laser Caution
07 Toxic
12 Rotating Objects
03 Radioactive
08 Caution Pinching
04 Explosive
09 Strongly Magnetic
13 Flammable
05 Irritant / Harmful
10
[ ! ] Standards shown on the left are stipulated only with graphic patterns.
ISO: International Organization for Standardization
IEC: International Electrotechnical Commission
B S: British Standards
Material: PET Film
Specification Table
| Part Number |
| LRM−05 |
| Part Number | W | H | |
| Type | Nominal | ||
| LRS | 01 or more | 31 | 28 |
| LRM | 52 | 47 | |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| LRM-01 |
| LRM-02 |
| LRM-03 |
| LRM-04 |
| LRM-05 |
| LRM-06 |
| LRM-07 |
| LRM-08 |
| LRM-09 |
| LRM-10 |
| LRM-11 |
| LRM-12 |
| LRM-13 |
| LRS-01 |
| LRS-02 |
| LRS-03 |
| LRS-04 |
| LRS-05 |
| LRS-06 |
| LRS-07 |
| LRS-08 |
| LRS-09 |
| LRS-10 |
| LRS-11 |
| LRS-12 |
| LRS-13 |
| Part Number |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | RoHS | Base W (mm) | Symbol Contents | |
|---|---|---|---|---|---|---|---|---|
21.51 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 52 | Electric Shock | |
21.51 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 52 | Cautions | |
21.51 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 52 | Rotating Objects | |
21.51 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 52 | Pinching Caution | |
21.51 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 52 | Flammable | |
21.51 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 52 | High Temperature | |
21.51 € | 10 Pieces Per Package | 1 pack | Available |
Same day
Stock | 10 | 52 | Laser Caution | |
21.51 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 52 | Radioactive | |
21.51 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 52 | Explosive | |
21.51 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 52 | Irritant, Harmful | |
21.51 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 52 | Corrosive | |
21.51 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 52 | Toxic | |
21.51 € | 1 | Available | 5 Days | 10 | 52 | Strongly Magnetic | ||
10.12 € | 10 Pieces Per Package | 1 pack | Available |
Same day
Stock | 10 | 31 | Electric Shock | |
10.12 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 31 | Cautions | |
10.12 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 31 | Rotating Objects | |
10.12 € | 10 Pieces Per Package | 1 pack | Available |
Same day
Stock | 10 | 31 | Pinching Caution | |
10.12 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 31 | Flammable | |
10.12 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 31 | High Temperature | |
10.12 € | 10 Pieces Per Package | 1 pack | Available |
Same day
Stock | 10 | 31 | Laser Caution | |
10.12 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 31 | Radioactive | |
10.12 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 31 | Explosive | |
10.12 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 31 | Irritant, Harmful | |
10.12 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 31 | Corrosive | |
10.12 € | 10 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 31 | Toxic | |
10.12 € | 1 | Available | 5 Days | 10 | 31 | Strongly Magnetic |
Loading...
Specifications/Overview
(1) Choose a flat surface for labelling.
(2) Wipe the dirt off the surface.
(3) When preferring to put a sticker on an exact position, moisten a large surface with a cloth beforehand.
(4) Attach the sticker after peeling off the release paper and then, press the surface firmly.
Heat Resistance: 100°C × 7 days
No changeOil Resistance: 72 hours in gear oil
No changeWeather Resistance: 400 hours in weather meter
No change[ ! ] Durability may vary under irregular conditions.
