Sound Proofing Materials / Standard Sizes (BSESB1.5-40)

Sound Proofing Materials / Standard Sizes BSESB1.5-40
  • Volume Discount

MISUMI

MISUMI

Product Details:

Manufacturer part number: BSESB1.5-40

Brand: MISUMI

Price: 4.30 €

Delivery time: 8 Days


Technical Data:

Sound Proofing Effect: Vibration Control

Material: Vinyl Acetate

Adhesive Seal: With Seal

Shape: Band Type

Thickness T: 1.5 mm


(i)Remark

  • Please check the content on our website as the PDF does not contain the most up-to-date information.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

BSESB1.5-40

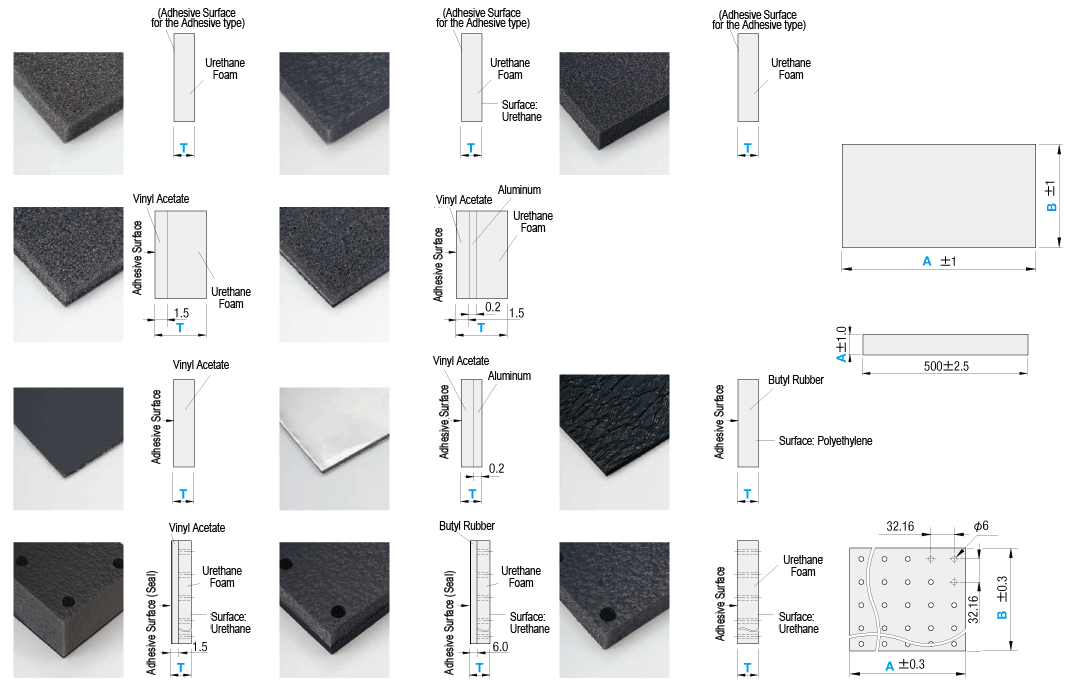

Dimensional Drawing

(1)BS2FS (Adhesive)
BS2F (No Adhesive)

(2)BS4FS (Adhesive)
BS4F (No Adhesive)

(3)BS140FS(Adhesive)
BS140F (No Adhesive)

(4)BSKYU

(5)BSKYUA

(6)BSES (A, B Selectable Type)
BSESB (Band Type)

(7)BSESA (A, B Selectable Type)
BSESAB (Band Type)

(8)BSYA

(9)BSKYKAA

(10)BSKYKAY

(11)BSKYKA

(1) ～ (8)
A, B Selectable Type

Band Type ((6)· (7))

(9) ～ (11)

[ ! ]Hole machining is
applied only on the urethane side,
and no hole machining is applied
on the vinyl acetate side.

[ ! ]Hole machining is
applied only on the urethane side,
and no hole machining is applied
on the butyl rubber side.

No.TypeEffect[M] MaterialFlame retardant grade
* equivalent: Results from testing organizations other than UL
AdhesiveNo Adhesive
(1)BS2FS BS2FSound AbsorptionUrethane Foam
UL-94 HF-1 equivalent
(2)BS4FS BS4FUrethane Foam (Surface: Urethane Coating)
UL-94 HBF equivalent
(3)BS140FS BS140FVibration Control, Sound AbsorptionUrethane Foam
FMVSS302 equivalent
(4)BSKYU —Urethane Foam + Vinyl Acetate
UL-94 HF-1 equivalent
(5)BSKYUA —Strong Vibration Control, Sound AbsorptionUrethane Foam + Vinyl Acetate + Aluminum
UL-94 HF-1 equivalent
(6)BSESBSESB (Band Type)—Vibration ControlVinyl Acetate
UL-94 V-0 equivalent
(7)BSESABSESAB (Band Type)—Strong Vibration ControlVinyl Acetate + Aluminum
UL-94 V-0 equivalent
(8)BSYA —Vibration Control, Sound InsulationButyl Rubber (Surface: Polyethylene)
UL-94 V-0 equivalent
(9)BSKYKAA —Vibration Control, Sound AbsorptionUrethane Foam (Surface: Urethane Coating) + Vinyl Acetate
UL-94 HBF equivalent
(10)BSKYKAY —Vibration Control, Sound Absorption, Sound InsulationUrethane Foam (Surface: Urethane Coating) + Butyl Rubber
UL-94 HBF equivalent
(11)BSKYKA —Sound AbsorptionUrethane Foam (Surface: Urethane Coating)
UL-94 HBF equivalent
Adhesive Part [M] Material: Acrylic Adhesives

Product Specifications

Specifications / Overview

(1)BS2FS (Adhesive)
BS2F (No Adhesive)

(2)BS4FS (Adhesive)
BS4F (No Adhesive)

(3)BS140FS (Adhesive)
BS140F (No Adhesive)

(4)BSKYU

(5)BSKYUA

(6)BSES (A, B Selectable Type)
BSESB (Band Type)

(7)BSESA (A, B Selectable Type)
BSESAB (Band Type)

(8)BSYA

(9)BSKYKAA

(10)BSKYKAY

(11)BSKYKA

(1) ～ (8)
A, B Selectable Type

Band Type ((6)· (7))

(9) ～ (11)

App. Example

BSES or
BSESA

● Vibration control is effective when used in narrow spaces or affixed on the back of vibrating trays.

● For example, affix to the back face of tray vibrated due to contact with conveyed workpieces.

● Vibration control is effective when pasted directly on the vibrating pipe and compressor.

● It can be attached on a curved surface.

Specification Table

Part Number—A—B
BSKYU16.5
BSESB1.5		—
—		100
20		—200
Part NumberA SelectionB SelectionRecommended Usage Temperature (°C)Heat Resistance Temperature (°C)Minimum Bending Radius R (mm)Surface Density (kg/m2)
TypeT Selection
(1)BS2FS (Adhesive)BS2F (No Adhesive) 102030 A, B Selectable Type
100
400
800
※1000
* is for
(1), (2), (3), (4), (6), (9), (11)
only

Band Type
20
30
40
50
80
100		A, B Selectable Type
100
200
300
400
500
※600
※700
※800
* is for (4), (6), (9) only


Band Type
500
 		0 to 3070—0.75*6
(2)BS4FS (Adhesive)BS4F (No Adhesive)0 to 3070—0.69*6
(3)BS140FS (Adhesive)BS140F (No Adhesive)0 to 3070—4.2*6
(4)BSKYU 6.511.516.521.531.50 to 3070200*13.20*1
(5)BSKYUA 6.711.716.721.731.70 to 70Affix on Flat Surface*33.74*2
(6)BSESBSESB (Band Type)1.50 to 301002.7
(7)BSESABSESAB (Band Type)1.70 to 70Affix on Flat Surface*33.24
(8)BSYA  3610 0 to 1301305*412.00*4
(9)BSKYKAA 31.50 to 3070Affix on Flat Surface*33.45
(10)BSKYKAY  162636 0 to 7012.75*5
(11)BSKYKA 1020 30500 to 700.75*6
[ ! ] All are made of incombustible material.
[ ! ] Clean the mating surface free of oil and dust.
[!] Can be cut with a utility knife. Cut with the adhesive side up.
[!] Adhesive Strength (90 degree peel strength): 19.6 N/25 mm Wide (When adhered to EN 1.4301 Equiv.)
[ ! ] BSYA expands and contracts by 3% or less.
[ ! ] BSKYKA, BSKYKAA and BSKYKAY are covered with exterior skin so that they can be wiped clean and are highly durable.
* 1. When T = 21.5
* 2. When T = 21.7
* 3. It can be bent, but the adhesive strength becomes weaker.
* 4. When T = 6
* 5. When T = 36
* 6. When T = 30

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
BSESB1.5-40
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSSound Proofing Effect Material Adhesive Seal Shape Thickness T
(mm) 		A
(mm) 		B
(mm)

4.30 €

1 Available 8 Days 10Vibration ControlVinyl AcetateWith SealBand Type1.540-

Loading...

  1. 1


This page is Sound Proofing Materials / Standard Sizes, part number BSESB1.5-40.
You can find the detail information about specifications and dimensions on part number BSESB1.5-40.

Configure

Clear all

1Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • B(mm)

    • 100
    • 200
    • 300
    • 400
    • 500
    • 600
    • 700
    • 800
    • 1000

    Clear

  • Type

    • BS140F
    • BS140FS
    • BS2F
    • BS2FS
    • BS4F
    • BS4FS
    • BSES
    • BSESA
    • BSESAB
    • BSESB
    • BSKYKA
    • BSKYKAA
    • BSKYKAY
    • BSKYU
    • BSKYUA
    • BSYA

    Clear

  • Sound Proofing Effect

    • Sound Absorption
    • Strong Vibration Control
    • Strong Vibration Control, Sound Absorption
    • Vibration Control
    • Vibration Control, Sound Absorption
    • Vibration Control, Sound Absorption, Sound Insulation
    • Vibration Control, Sound Insulation

    Clear

  • Material

    • Butyl Rubber (Surface: Polyethylene)
    • Urethane Foam (Surface: Urethane Coating)
    • Urethane Foam + Butyl Rubber (Surface: Urethane Coating)
    • Urethane Foam + Vinyl Acetate
    • Urethane Foam + Vinyl Acetate (Surface: Urethane Coating)
    • Urethane Foam + Vinyl Acetate + Aluminum
    • Urethane Form
    • Vinyl Acetate
    • Vinyl Acetate + Aluminum

    Clear

  • Adhesive Seal

    • No Seal
    • With Seal

    Clear

  • Shape

    • Band Type

    Clear

  • Thickness T(mm)

    • 1.5
    • 1.7
    • 3
    • 6
    • 6.5
    • 6.7
    • 10
    • 11.5
    • 11.7
    • 16
    • 16.5
    • 16.7
    • 20
    • 21.5
    • 21.7
    • 26
    • 30
    • 31.5
    • 31.7
    • 36
    • 50

    Clear

  • A(mm)

    • 20
    • 30
    • 40
    • 50
    • 80
    • 100
    • 400
    • 800
    • 1000

    Clear

  • Filter by CAD data type

    • 2D
    • 3D

    Clear

Filter by standard shipping days

    • All
    • 8 Days or Less

    Reset

Optional Attributes

Variation of this product

Part Number
BSESAB1.7-40
BSESAB1.7-50
BSESAB1.7-80
BSESB1.5-50
BSESB1.5-80
BSKYKA10-1000-1000
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountStandard
Shipping Days
?		RoHSSound Proofing Effect Material Adhesive Seal Shape Thickness T
(mm) 		A
(mm) 		B
(mm)

5.24 €

1 Available 8 Days 10Strong Vibration ControlVinyl Acetate + AluminumWith SealBand Type1.740-

5.69 €

1 Available 8 Days 10Strong Vibration ControlVinyl Acetate + AluminumWith SealBand Type1.750-

6.83 €

1 Available 8 Days 10Strong Vibration ControlVinyl Acetate + AluminumWith SealBand Type1.780-

5.05 €

1 Available 8 Days 10Vibration ControlVinyl AcetateWith SealBand Type1.550-

5.39 €

1 Available 8 Days 10Vibration ControlVinyl AcetateWith SealBand Type1.580-

31.09 €

1 Available 8 Days 10Sound AbsorptionUrethane Foam (Surface: Urethane Coating)With Seal-1010001000
