Manifold Hydraulic / Outlets 1 Side / 2 Inlets
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
● Standard Hole Shape
Counterbore Hole
| Mounting Hole Dimension | d | D | h | D1 | d1 | h1 |
| M5 | 5.5 | 9.5 | 5.5 | 8 | *4.2 | 4.5 |
| M6 | 6.6 | 11 | 6.5 | 9.5 | 5.1 | 5.5 |
| M8 | 8.5 | 14 | 8.5 | 11 | 6.8 | 6.5 |
| *Only for EN 1.4301 Equiv., d1 dimension is 4.3. | ||||||

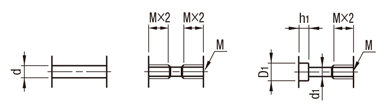

● Mounting Hole Change
Through Hole (NA)
Tapped Hole (T)
Counterbore Tapped Hole (ZT)
Thread
JIS B0203 Rc (PT) JIS B0202 G (PF): ISO 228-1 Interchangeable
ANSI/ASME B.I.20.1－1983 (NPT)
* Drawing for 3 Circuit Type is selected. The total number of R, G and K threads is 5.
[ ! ] Mounting hole shape can be selected freely.
JIS B0203 Rc (PT) JIS B0202 G (PF): ISO 228-1 Interchangeable
ANSI/ASME B.I.20.1－1983 (NPT)
* Drawing for 3 Circuit Type is selected. The total number of R, G and K threads is 5.
[ ! ] Mounting hole shape can be selected freely.
[ ! ] Standard hole shape is selected when no hole shape modification is specified.
[L Dimension Calculation]
Example: For BMRFP3- to -P35
L = N × P + 2E = (Number of Circuits 3 - 1) × 35 + 2 × 35 = 140
| Type | [M] Material | [S] Surface Treatment | Max. Operating Pressure | ||||||
| Pitch (P) Standard | Pitch (P) Configurable | ||||||||
| 30 × 35 sq. | 40 sq. | 50 Sq. | 70 sq. | 30 × 35 sq. | 40 sq. | 50 Sq. | |||
| BMRS | BMRF | BMRFL | BMRL | — | BMRFP | BMRFLP | Steel for General Structure | Trivalent Chromate | 20.6 MPa ≈ 210 kgf/cm2 or less |
| — | BMRFM | BMRFLM | BMRLM | — | — | BMRFLMP | Electroless Nickel Plating | ||
| BMRSR | BMRFR | BMRFLR | — | BMRSRP | BMRFRP | BMRFLRP | EN 1.4301 Equiv. | — | |
| — | BMRFC | — | — | — | — | — | Brass | 1 MPa ≈ 10 kgf/cm2 or less | |
Specification Table
| Part Number | — | R | — | G | — | K | — | P | ||||||
| Type | Mounting Hole Change | Number of Circuits | ||||||||||||
| BMRF BMRFLP G−BMRFLP | NA NA | 3 4 4 | — — — | R3 R2 R2 | — — — | G2 G3 G3 | — — — | K2 K4 K4 | — — | P50 P50 | (G Thread) | |||
| Part Number | Rc (PT), NPT Selection | Pitch P | Number of Pitches N | R·G·K Total Number of Threads | A | B | E | F | X | Y | Mounting Hole | |||||
| Type | Mounting Hole Change | Number of Circuits | R | G·K | Standard | Configurable 1 mm Increments | M | |||||||||
| (30 × 35 sq.) | NA (Through) T(Tapped) ZT(Counterbore Tapped) | 1 | 1 (1/8) 2 (1/4) | 1 (1/8) 2 (1/4) | — | — | 0 | 3 | 30 | 35 | 20 | 20 | 15 | 6 | M5 | |
| Pitch Standard BMRS BMRSR | Pitch Configurable BMRSRP | 2 | 30 | 20 to 50 | 1 | 4 | ||||||||||
| 3 | 2 | 5 | ||||||||||||||
| 4 | 3 | 6 | ||||||||||||||
| 5 | 4 | 7 | ||||||||||||||
| 6 | 5 | 8 | ||||||||||||||
| 7 | 6 | 9 | ||||||||||||||
| 8 | 20 to 40 | 7 | 10 | |||||||||||||
| (40 sq.) | 1 | 1 (1/8) 2 (1/4) 3 (3/8) 1 N (NPT1/8) 2 N (NPT1/4) 3 N (NPT3/8) | 2 (1/4) 3 (3/8) 4 (1/2) 2 N (NPT1/4) 3 N (NPT3/8) 4 N (NPT1/2) | — | — | 0 | 3 | 40 | 40 | 35 | 20 | 20 | 7 | M6 | ||
| Pitch Standard BMRF BMRFM BMRFR BMRFC | Pitch Configurable BMRFP BMRFRP | 2 | 40 | 25 to 50 | 1 | 4 | ||||||||||
| 3 | 2 | 5 | ||||||||||||||
| 4 | 3 | 6 | ||||||||||||||
| 5 | 4 | 7 | ||||||||||||||
| 6 | 5 | 8 | ||||||||||||||
| 7 | 20 to 45 | 6 | 9 | |||||||||||||
| 8 | 20 to 40 | 7 | 10 | |||||||||||||
| (50 sq.) | 1 | 2 (1/4) 3(3/8) 4(1/2) 6(3/4) | 2 (1/4) 3(3/8) 4(1/2) 6(3/4) | — | — | 0 | 3 | 50 | 50 | 30 | 28 | 20 | 8 | M8 | ||
| Pitch Standard BMRFL BMRFLM BMRFLR | Pitch Configurable BMRFLP BMRFLMP BMRFLRP | 2 | 60 | 35 to 60 | 1 | 4 | ||||||||||
| 3 | 2 | 5 | ||||||||||||||
| 4 | 3 | 6 | ||||||||||||||
| 5 | 4 | 7 | ||||||||||||||
| 6 | 5 | 8 | ||||||||||||||
| (70 sq.) | 1 | 6 (3/4) 8 (1) | 8 (1) | — | — | 0 | 3 | 70 | 70 | 40 | 35 | 25 | 9 | M8 | ||
| Pitch Standard BMRL BMRLM | 2 | 60 | 1 | 4 | ||||||||||||
| 3 | 2 | 5 | ||||||||||||||
| 4 | 3 | 6 | ||||||||||||||
[!] For R, G and K, specify 1, 2, 3, 4, 6, 8, 1N, 2N, 3N or 4N indicated before (). [!]Single Circuit is not available for Pitch Configurable Type. [!] Brass is for up to 6 connections.
[!]Specify the pitch taking into consideration the necessary dimensions for fitting the couplings. [!]Each 6 and 8 Circuit Type has an additional mounting hole at the midpoint of the overall length. 7 Circuit Type has an additional mounting hole at each midpoint of the 2-3 port pitch, and 5-6 port pitch from the left to the right.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Material | Surface Treatment | Block Size (mm) | Number of Circuits (Circuits) | Thread Size / Type | Mounting Hole Change | Pitch P (mm) | Pitch Standard / Configurable | Application | Drawing G Part Thread Dia. NPT Selection [G] | Drawing K Part Thread Dia. NPT Selection [K] | Drawing R Part Thread Dia. NPT Selection [R] | Select a value for PT/PF Thread Dia. on G (in Drawing). [G] 1(1/8) 2(1/4) 3(3/8) 4(1/2) 6(3/4) 8(1) | Select a value for PT/PF Thread Dia. on K (in Drawing). [K] 1(1/8) 2(1/4) 3(3/8) 4(1/2) 6(3/4) 8(1) | Select a value for PT/PF Thread Dia. on R (in Drawing). [R] 1(1/8) 2(1/4) 3(3/8) 4(1/2) 6(3/4) 8(1) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 1 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 1 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | 2 ～ 4 | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 1 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 1 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | 2 ～ 4 | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 1 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | - | - | - | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 1 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | - | - | - | 2 ～ 4 | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 1 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | - | 2 ～ 4 | - | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 1 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | - | - | 2 ～ 4 | 2 ～ 4 | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 2 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 2 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | 2 ～ 4 | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 2 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 2 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | 2 ～ 4 | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 2 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | - | - | - | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 2 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | - | - | - | 2 ～ 4 | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 2 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | - | 2 ～ 4 | - | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 2 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | - | - | 2 ～ 4 | 2 ～ 4 | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 3 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 3 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | 2 ～ 4 | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 3 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 3 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | 2 ～ 4 | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 3 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | - | - | - | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 3 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | - | - | - | 2 ～ 4 | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 3 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | - | 2 ～ 4 | - | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 3 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | - | - | 2 ～ 4 | 2 ～ 4 | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 4 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 4 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | 2 ～ 4 | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 4 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 4 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | 2 ～ 4 | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 4 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | - | - | - | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 4 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | - | - | - | 2 ～ 4 | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 4 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | - | 2 ～ 4 | - | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 4 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | - | - | 2 ～ 4 | 2 ～ 4 | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 5 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 5 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | 2 ～ 4 | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 5 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 5 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | 2 ～ 4 | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 5 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | - | - | - | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 5 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | - | - | - | 2 ～ 4 | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 5 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | - | 2 ～ 4 | - | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 5 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | - | - | 2 ～ 4 | 2 ～ 4 | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 6 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 6 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | 2 ～ 4 | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 6 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 6 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | 2 ～ 4 | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 6 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | - | - | - | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 6 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | - | - | - | 2 ～ 4 | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 6 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | - | 2 ～ 4 | - | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 6 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | - | - | 2 ～ 4 | 2 ～ 4 | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 7 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 7 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | 2 ～ 4 | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 7 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 7 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | 2 ～ 4 | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 7 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | - | - | - | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 7 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | - | - | - | 2 ～ 4 | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 7 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | - | 2 ～ 4 | - | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 7 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | - | - | 2 ～ 4 | 2 ～ 4 | 1 ～ 3 | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 8 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 8 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | 1/2 [G4N] / 1/4 [G2N] / 3/8 [G3N] | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | - | 2 ～ 4 | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 8 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | 1/2 [K4N] / 1/4 [K2N] / 3/8 [K3N] | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | - | - | ||
- | 1 | 9 Days | 10 | EN 1.0038 Equiv. | Trivalent Chromate | 40 x 40 | 8 | Standard Thread {PT, m (Coarse) Thread} | Not Specified (Counterbore) | 40 | Fixed Type | For hydraulic / Water Pressure | - | - | 1/4 [R2N] / 1/8 [R1N] / 3/8 [R3N] | 2 ～ 4 | 2 ～ 4 | - |
Loading...
Basic information
| Shape | Lateral Through Hole, Vertical Semi-Through Hole |
|---|
Configure
Basic Attributes
-
Material
- EN 1.0038 Equiv.
- EN 1.4301 Equiv.
- Brass
-
Surface Treatment
- Not Provided
- Trivalent Chromate
- Electroless Nickel Plating
-
Block Size(mm)
- 30 x 35
- 40 x 40
- 50 x 50
- 70 x 70
-
Number of Circuits(Circuits)
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
-
Thread Size / Type
-
Mounting Hole Change
- NA (Through)
- Not Specified (Counterbore)
- T (Tapped)
- ZT (Counterbore Tapped)
-
Pitch P(mm)
-
Pitch Standard / Configurable
- Configurable Type
- Fixed Type
-
Application
- For Oil, Water Hydraulic
- For Water Hydraulic
- For hydraulic / Water Pressure
-
Drawing G Part Thread Dia. NPT Selection [G]
- 1/2 [G4N]
- 1/4 [G2N]
- 3/8 [G3N]
-
Drawing K Part Thread Dia. NPT Selection [K]
- 1/2 [K4N]
- 1/4 [K2N]
- 3/8 [K3N]
-
Drawing R Part Thread Dia. NPT Selection [R]
- 1/4 [R2N]
- 1/8 [R1N]
- 3/8 [R3N]
-
Select a value for PT/PF Thread Dia. on G (in Drawing). [G] 1(1/8) 2(1/4) 3(3/8) 4(1/2) 6(3/4) 8(1)
-
Select a value for PT/PF Thread Dia. on K (in Drawing). [K] 1(1/8) 2(1/4) 3(3/8) 4(1/2) 6(3/4) 8(1)
-
Select a value for PT/PF Thread Dia. on R (in Drawing). [R] 1(1/8) 2(1/4) 3(3/8) 4(1/2) 6(3/4) 8(1)
-
Type
- BMRF
- BMRFC
- BMRFL
- BMRFLM
- BMRFLMP
- BMRFLP
- BMRFLR
- BMRFLRP
- BMRFM
- BMRFP
- BMRFR
- BMRFRP
- BMRL
- BMRLM
- BMRS
- BMRSR
- BMRSRP
- G-BMRF
- G-BMRFC
- G-BMRFL
- G-BMRFLM
- G-BMRFLMP
- G-BMRFLP
- G-BMRFLR
- G-BMRFLRP
- G-BMRFM
- G-BMRFP
- G-BMRFR
- G-BMRFRP
- G-BMRL
- G-BMRLM
- G-BMRS
- G-BMRSR
- G-BMRSRP
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 7 Days or Less
- 8 Days or Less
- 9 Days or Less
- 11 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
