Air Regulators / With Filter
- Volume Discount
(i)Remark
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
| No. | Name | [ M ]Material | No. | Name | [ M ]Material |
| 8A-S | 8A-S | ||||
| ① | Main Body | EN AB-46200 Equiv. | ⑦ | Adjusting Screw | EN 1.0038 Equiv. |
| ② | Bonnet | PBT | ⑧ | Element | PE |
| ③ | Case Guard | EN AC-46100 Equiv. | ⑨ | Drain Valve | EN CW614N Equiv. |
| ④ | Case | PC | ⑩ | Lock Nut | EN AW-6063 Equiv. |
| ⑤ | Valve | Nitrile Rubber | ⑪ | Bracket | EN 1.0330 Equiv. |
| ⑥ | Handle | POM | ⑫ | Pressure Gauge | - |
Specification
| Part Number |
| MSFR8A－S |
| Part Number | Rc (PT) | Nomi. Filtration Rating (μm) | Operating Pressure (Mpa) | Pressure Setting Range Mpa | Pressure Resistance Mpa | Ambient Temperature Range (°C) | Applicable Fluid | Mass (g) | Unit Price | |
| Type | No. | |||||||||
| MSFR | 8A-S | 1/4 | 40 | 0~1.0 | 0.05~0.85 | 1.5 | 5~60 | Air | 210 | |
| Part Number |
| MSPGN1 (Pressure Gauge) |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| MSFR8A-S |
| MSPGN1 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Applicable Fluid | Set Pressure Range (MPa) | Operating Pressure Range (MPa) | Flow Direction | Control Side Connection Types | Mass (g) | Nominal (No.) | Ambient Temperature Range (°C) | Operating Pressure Range (MPa) | Type | Connectiong Thread Size | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
59.44 € | 1 | Available | 5 Days | 10 | Compressed Air | 0.05 to 0.85 | 0～1.0 | Right Direction | Rc | 210 | 8A-S | 5-60 | 0-1.0 | Regulators with Filter | 1/4 | |
14.22 € | 1 | Available | 5 Days | 10 | - | - | - | - | - | - | 1 | - | - | Pressure Gauge Only | - |
Loading...
More Information

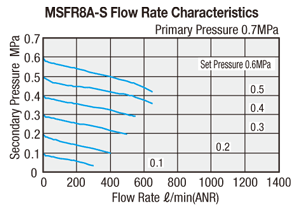

This graph shows that when the primary pressure is constant at 0.7 MPa, the secondary set pressure drops according to the flow rate used.
Basic information
| Regulator, Pressure Boosting Valve | Others | Regulator Type | Standard | Shape | Standard |
|---|
Configure
Basic Attributes
-
Applicable Fluid
- Compressed Air
-
Flow Direction
- Right Direction
-
Control Side Connection Types
- Rc
-
Mass(g)
- 210
-
Nominal (No.)
- 1
- 8A-S
-
Ambient Temperature Range(°C)
- 5-60
-
Operating Pressure Range(MPa)
- 0-1.0
-
Type
- Pressure Gauge Only
- Regulators with Filter
-
Connectiong Thread Size
- 1/4
-
Type
- MSFR
- MSPGN1
-
