Needle Valve with PT Male Threads
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
[Features] Compact needle valve with double male thread. -Allows fine adjustment of the flow rate of water, oil and air.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
Dimensional Drawing
NBPP
| Component List | ||||
| No. | Qty. | Part Name | Material | Surface Treatment |
| 01 | 1 | Main Body | EN CW617N Equiv. | Chrome Plating |
| 02 | 1 | Spindle (for lock type, long) | EN CW614N Equiv. | Chrome Plating |
| 03 | 2 | Back-Up Ring | EN CW505L Equiv. | ― |
| 04 | 1 | O-Ring | NBR-70-1 | ― |
| 05 | 1 | Grand nut (for lock type) | EN CW614N Equiv. | Chrome Plating |
| 07 | 1 | Handle lock nut | EN CW614N Equiv. | Chrome Plating |
| 08 | 1 | Lock type handle | EN CW614N Equiv. | Chrome Plating |
| 09 | 1 | Label | EN AW-1050 Equiv. | ― |
| 10 | 1 | Toothed Washer | EN 1.4301 Equiv. | ― |
| 11 | 1 | Nut | EN 1.4301 Equiv. | ― |
[M]Material: Brass; [S] Surface treatment: Chrome plating
Specification Table
| Part Number |
| NBPP22 |
| Part Number | R (PT) | L | H | H1 | d (⌀) Orifice Diameter | |
| Type | No. | |||||
| NBPP | 11 | 1/8 | 46 | 48 | 7 | 4 |
| 22 | 1/4 | 46 | 5 | |||
| 33 | 3/8 | 50 | 5 | |||
Technical Information

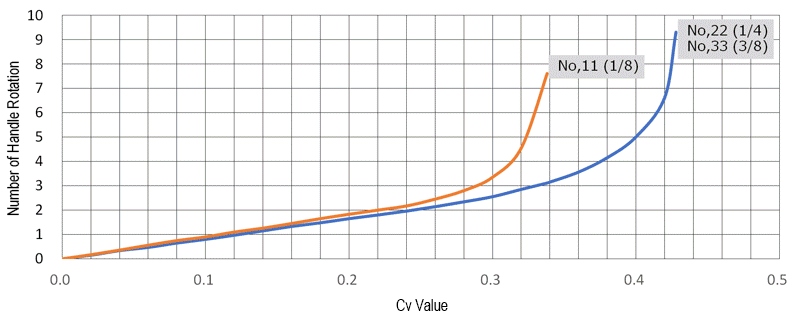

·Cv Value Curve
The values in the graph are based on the experimental devices and should be used as a reference.
The values in the graph are based on the experimental devices and should be used as a reference.
·Flow Calculation Based on Cv Value
Fluid | Differential Pressure Conditions | ||||
| When P2＞ P1 2 | When P2≤ P1 2 | ||||
| Liquid | General |  |  | Same as the left | |
| High Viscosity (20 cs or more) |  |  | Same as the left | ||
| Gas | Ambient Temperature |  |  |  |  |
| High Temperature |  |  |  |  | |
| Steam | Saturation |  |  |  |  |
| Overheating |  |  |  |  | |
| Moisture |  |  |  |  | |
| QL（m3/h） | : Liquid Flow Rate |
| Qg（m3/h） | : Gas Flow Rate: Normal Condition (15°C 760 mmHg) |
| Qs（kg/h） | : Steam Flow Rate |
| P1（Mpa abs） | : Primary Absolute Pressure |
| P2（MPA abs） | : Secondary Absolute Pressure |
| K | : Viscosity Correction Factor |
| t（℃） | : Fluid Temperature |
| GL | : Specific Gravity of Liquid (Water = 1) |
| Gg | : Specific Gravity of Gas (Air = 1) |
| S（℃） | : Steam Superheat |
| X | : Steam Dryness (Dry Saturated Steam X = 1) |
·Calculation Example of flow rate based on Cv value (Reference Value)
| If the flow rate calculation conditions are as follows. |
| Valve Size: N□□□22 (1/4) |
| Degree of Opening: 3 turns |
| ΔP = P1 - P2: 0.294 MPa (3 kgf/cm2) (1) |
| Fluid: Water (GL=1)··· (2) |
| The Cv value at 3 turns can be read as = 0.33 from the Cv value curve. ··· (3) |
| Since the fluid is water, the general formula for liquids is used. |
| Transforming this formula into QL = will be the following formula (4). |
Substitute the conditions (1), (2), and (3) into formula (4) and calculate.
[ ! ]The above formula and the results are the reference values.
Values may vary significantly depending on actual environmental conditions, etc.
Values may vary significantly depending on actual environmental conditions, etc.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Part Number
|
|---|
| NBPP11 |
| NBPP22 |
| NBPP33 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Supply Side, Plumbing Thread Nominal | Control Side, Plumbing Thread Nominal | Length (mm) | No. | |
|---|---|---|---|---|---|---|---|---|
24.18 € | 1 | Available | 5 Days | 1/8 | 1/8 | 46 | 11 | |
24.18 € | 1 | Available | 5 Days | 1/4 | 1/4 | 46 | 22 | |
24.18 € | 1 | Available | 5 Days | 3/8 | 3/8 | 50 | 33 |
Loading...
Specifications/Overview
Parts and Materials for Needle Valves
| Part No. | Part Name | Material | Qty. | Processing |
| (1) | Handle | EN CW614N Equiv. | 1 | Chrome Plating |
| (2) | Gland Nut | EN CW614N Equiv. | 1 | Chrome Plating |
| (3) | Ring | EN CW505L Equiv. | 2 | — |
| (4) | O-Ring | NBR | 1 | — |
| (5) | Spindle | EN CW614N Equiv. | 1 | Chrome Plating |
| (6) | Body | EN CW617N Equiv. | 1 | Chrome Plating |
| (7) | Lock Nut | EN CW614N Equiv. | 1 | Chrome Plating |
Specifications
| Applicable Fluids | Water, Air, Oil |
| Operating Temp. Range | −10 to 80°C (No Freezing) |
| Max. Operating Pressure | 0.98 MPa |
Features of Needle Valves
·The flow rate of water, oil and air can be finely adjusted.
·The body and the needle are chrome plated to improve air tightness, damage-proofing and smooth operation.
·The spindle is provided with a lock nut to prevent loosening due to vibration.
·The flow rate of water, oil and air can be finely adjusted.
·The body and the needle are chrome plated to improve air tightness, damage-proofing and smooth operation.
·The spindle is provided with a lock nut to prevent loosening due to vibration.
Basic information
| Main Body Shape | Straight Type | Body Material | Brass | Applicable Fluid | Water / Air / Oil |
|---|---|---|---|---|---|
| Supply Side, Connection Type | R (PT) | Control Side, Connection Type | R (PT) | Handle Shape | Knurled Handle |
| Ball Seat Material | Not Provided | Operating Temperature Range(°C) | -10::80 | Height(mm) | 48 |
| Handle Dia.(mm) | 30 | Operation Method | Manual Type |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
