Vacuum Filter / Filter / Replacement Element
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
| VFLT | VFLTE (Element for Replacement) |
 |  |
Element: Polyvinyl Formal
Specification Table
| Part Number |
| VFLT4 |
| Part Number | B1 | B2 | B3 | B4 | L1 | L2 | P1 | P2 | P3 | C | F1 | F2 | Filtration Area (cm2) | Mass (g) | |
| Type | D | ||||||||||||||
| VFLT | 4 | 58 | 33 | 18 | 24 | 11.9 | 11.9 | 18.2 | 20 | 17.5 | 14.9 | 10 | 20 | 7.5 | 18 |
| 6 | 60 | 13 | 13 | 16 | 19 | ||||||||||

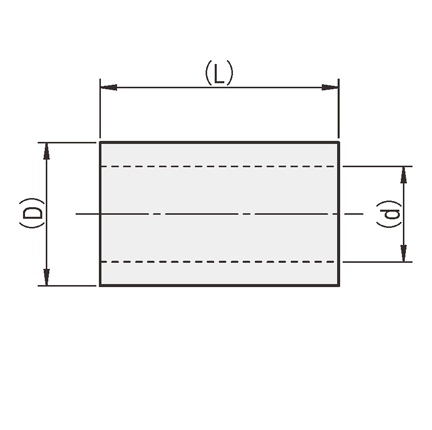

| Part Number | (D) | (d) | (L) |
| VFLTE | 12 | 8 | 20 |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| VFLT4 |
| VFLT6 |
| VFLTE |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Type | Element Replacement | Connection Type (IN Side) | Connection Tube Dia. (Millimeter Size, IN Side) D | Main Body, Replacement Filter Elements | |
|---|---|---|---|---|---|---|---|---|---|---|
10.71 € | 1 | 5 Days | 10 | Compact | Possible | One-Touch Plumbing (Metric Size) | Ø4 | Main Body | ||
10.96 € | 1 | 5 Days | 10 | Compact | Possible | One-Touch Plumbing (Metric Size) | Ø6 | Main Body | ||
2.39 € | 1 | 5 Days | 10 | Filter Elements | - | - | - | Replacement Filter Elements |
Loading...
Specifications / Overview
Element Replacement| ■How to Remove 1 Turn plastic body B 45° counterclockwise*. 2 Pull out plastic body B. * Do not turn the plastic body B beyond 45°. It may damage the plastic body. | ■How to Lock 1 Press-fit plastic body B completely to plastic body A. Be sure that the lug of plastic body A aligns with the key slot in plastic body B. 2 Turn plastic body B 45° clockwise *1 to lock. * 1 Do not turn the plastic body B beyond 45°. It may damage the plastic body. [ ! ] When locking, be sure that the lug of plastic body A comes to the center of the hole in plastic body B. |
 |  |
If installed reversely, the element inside will become dirty, making it impossible to know the proper time for maintenance.
Example
Plumbing between Vacuum Generator and Vacuum Pad removes dust
entering from pad and protects Generator from failures.
■ Specifications
| Applicable Fluid | Air |
| Operating Temperature Range | 0 to 60°C |
| Operating Pressure Range | −100 to 0 kPa |
| Filtration Accuracy | 10µm |
Basic information
| Filtration Accuracy | 10µm | Application | Vacuum Line | Removal Subject | Dust |
|---|
