Flow Rate Control Valves / 90 Deg. Elbow / Standard
Click on this image to zoom in.
Click on this image to zoom in.
- Promotional pricing
- Volume Discount
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
Meter-Out
SPSNL
SPJNLS
Meter-In
SPSNN
Thread: Brass (Nickel Plating)
(For SPJNLS, EN 1.4301 Equiv.)
Specification Table
| Part Number | — | Nominal | — | Body Color |
| SPSNL4 | — | M5 |
| Part Number | Nominal | Body Color (*) | A | B | C2 | E | Wrench Flats H | Thread Size M | Mass (g) | |
| Type | D | |||||||||
| SPSNL SPJNLS (Meter Out) SPSNN (Meter-In) | 4 | M5 | B (Black) W (White) | 19.1 (20.8) | 10 (12.4) | 29.45 (30.2) | 9 (10) | 8 | M5 × 0.8 | 9 |
| 1 | 20.9 (23.1) | 14.65 (16.2) | 40.05 (38.4) | 9 (10) | 10 (13) | R1/8 | 21 | |||
| 6 | M5 | 20.95 (22.3) | 11.2 (12.2) | 29.45 (30.2) | 11.2 (12.5) | 8 | M5 × 0.8 | 10 | ||
| 1 | 21.95 (24.1) | 14.65 (15.7) | 40.05 (38.4) | 11.2 (12.5) | 10 (13) | R1/8 | 22 | |||
| 2 | 23.95 (25.8) | 18.2 (20.0) | 48 (45.7) | 11.2 (12.5) | 14 (16) | R1/4 | 38 (40) | |||
| 8 | 1 | 25.1 (25.3) | 15.65 (15.4) | 40.05 (38.4) | 13.6 (14.5) | 10 (13) | R1/8 | 23 | ||
| 2 | 27.6 (27.2) | 19.3 (19.0) | 48 (45.7) | 13.6 (14.5) | 14 (16) | R1/4 | 41 | |||
| 3 | 28.6 (29.5) | 21.4 (21.3) | 54.2 (52.4) | 13.6 (14.5) | 19 | R3/8 | 71 (65) | |||
| 10 | 2 | 29.6 (29.9) | 20.8 (19.0) | 48 (45.7) | 16.3 (17.5) | 14 (16) | R1/4 | 46 (44) | ||
| 3 | 30 (31.7) | 23 (21.8) | 54.2 (52.4) | 16.3 (17.5) | 19 | R3/8 | 74 (68) | |||
| 4 | 32.9 (33.9) | 26.5 (25.2) | 59.8 (58.8) | 16.3 (17.5) | 24 | R1/2 | 106 (112) | |||
| 12 | 3 | 35.9 (32.0) | 24.7 (21.7) | 54.2 (52.4) | 19.7 (20.0) | 19 | R3/8 | 77 (69) | ||
| 4 | 38.9 (35.2) | 28.2 (25.7) | 59.8 (58.8) | 19.7 (20.0) | 24 | R1/2 | 109 (113) | |||
[!] The picture and drawing indicate SPSNL and SPSNN. For SPJNLS, refer to the CAD data.
[ ! ] For SPSNN (Meter-In), the ring is red.
* Color is applicable to SPJNLS only.
| Applicable Fluid | Air |
| Operating Temp. Range | 0 to 60°C |
| Operating Pressure Range | 0.05 to 0.7 MPa |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Control Type | Thread Material | Tube O.D. D (mm) | Thread Nominal M | |
|---|---|---|---|---|---|---|---|---|
44.71 € | 1 | Available | 6 Days | Meter-Out | EN 1.4301 Equiv. | 4 | 1 (R1/8) | |
38.54 € | 1 | Available | 6 Days | Meter-Out | EN 1.4301 Equiv. | 4 | M5 | |
44.71 € | 1 | Available | 6 Days | Meter-Out | EN 1.4301 Equiv. | 6 | 1 (R1/8) | |
49.87 € | 1 | Available | 6 Days | Meter-Out | EN 1.4301 Equiv. | 6 | 2(R1/4) | |
41.94 € | 1 | Available | 6 Days | Meter-Out | EN 1.4301 Equiv. | 6 | M5 | |
44.71 € | 1 | Available | 6 Days | Meter-Out | EN 1.4301 Equiv. | 8 | 1 (R1/8) | |
54.39 € | 1 | Available | 6 Days | Meter-Out | EN 1.4301 Equiv. | 8 | 2(R1/4) | |
57.93 € | 1 | Available | 6 Days | Meter-Out | EN 1.4301 Equiv. | 8 | 3(R3/8) | |
57.93 € | 1 | Available | 6 Days | Meter-Out | EN 1.4301 Equiv. | 10 | 2(R1/4) | |
58.05 € | 1 | Available | 6 Days | Meter-Out | EN 1.4301 Equiv. | 10 | 3(R3/8) | |
61.21 € | 1 | Available | 6 Days | Meter-Out | EN 1.4301 Equiv. | 10 | 4(R1/2) | |
64.61 € | 1 | Available | 6 Days | Meter-Out | EN 1.4301 Equiv. | 12 | 3(R3/8) | |
78.34 € | 1 | Available | 6 Days | Meter-Out | EN 1.4301 Equiv. | 12 | 4(R1/2) | |
9.58 € | 1 | Available | 5 Days | Meter-Out | Brass | 4 | 1 (R1/8) | |
7.56 € | 1 | Available | 5 Days | Meter-Out | Brass | 4 | M5 | |
8.95 € | 1 | Available |
Same day
Stock | Meter-Out | Brass | 6 | 1 (R1/8) | |
10.07 € 3.02 € | 1 | Available |
Same day
Stock | Meter-Out | Brass | 6 | 2(R1/4) | |
9.06 € | 1 | Available | 5 Days | Meter-Out | Brass | 6 | M5 | |
10.20 € 3.06 € | 1 | Available |
Same day
Stock | Meter-Out | Brass | 8 | 1 (R1/8) | |
10.20 € | 1 | Available | 5 Days | Meter-Out | Brass | 8 | 2(R1/4) | |
10.96 € | 1 | Available | 5 Days | Meter-Out | Brass | 8 | 3(R3/8) | |
12.59 € | 1 | Available | 5 Days | Meter-Out | Brass | 10 | 2(R1/4) | |
13.60 € | 1 | Available | 5 Days | Meter-Out | Brass | 10 | 3(R3/8) | |
16.12 € | 1 | Available | 5 Days | Meter-Out | Brass | 10 | 4(R1/2) | |
15.75 € | 1 | Available | 5 Days | Meter-Out | Brass | 12 | 3(R3/8) | |
17.13 € | 1 | Available | 5 Days | Meter-Out | Brass | 12 | 4(R1/2) | |
9.58 € 2.87 € | 1 | Available |
Same day
Stock | Meter-In | Brass | 4 | 1 (R1/8) | |
7.56 € | 1 | Available | 5 Days | Meter-In | Brass | 4 | M5 | |
8.95 € 3.04 € | 1 | Available |
Same day
Stock | Meter-In | Brass | 6 | 1 (R1/8) | |
10.07 € | 1 | Available | 5 Days | Meter-In | Brass | 6 | 2(R1/4) | |
9.06 € | 1 | Available | 5 Days | Meter-In | Brass | 6 | M5 | |
10.20 € | 1 | Available | 5 Days | Meter-In | Brass | 8 | 1 (R1/8) | |
10.20 € | 1 | Available | 5 Days | Meter-In | Brass | 8 | 2(R1/4) | |
10.96 € | 1 | Available | 5 Days | Meter-In | Brass | 8 | 3(R3/8) | |
12.59 € | 1 | Available | 5 Days | Meter-In | Brass | 10 | 2(R1/4) | |
13.60 € | 1 | Available | 5 Days | Meter-In | Brass | 10 | 3(R3/8) | |
16.12 € | 1 | Available | 5 Days | Meter-In | Brass | 10 | 4(R1/2) | |
15.75 € | 1 | Available | 5 Days | Meter-In | Brass | 12 | 3(R3/8) |
Loading...
Specifications/Overview
Points of comparison against similar products: Compared to the C-VALUE products, this type of controller can withstand more frequent repeated adjustment, because the adjusting knob is made of metal, and is more excellent in abrasion resistance, because the whole body is plated.
■Speed Adjusting Method
* It is necessary to adjust on both the cylinder rod push-out side and return side.
1. Close all needles.
(Clockwise)
2. Rotate counterclockwise to increase the speed.
Rotate slowly.
3. When desired speed is reached,
tighten the Lock Nut.
(2) When Decreasing the Speed
1. Rotate clockwise to decrease speed.
2. When desired speed is reached,
tighten the Lock Nut.

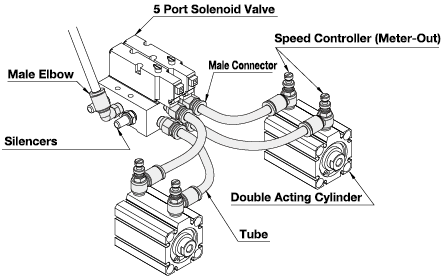

App. Example
Basic information
| Type | Speed Controllers | Joint Type | Threaded + One-Touch Fitting | Usage Environment/Application | Standard |
|---|---|---|---|---|---|
| Knob Type | With Straight Slot | Lock Nut Type | Lock Nuts | Operating Temperature Range(℃) | 0::60 |
| Operating Pressure Range(MPa) | 0.05::0.7 |
