Flow Rate Control Valve-90 Deg. Elbow / Angled Port
- Volume Discount
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
| Meter-Out | |||
| MNSPJS | ■ Specifications | ||
 | Applicable Fluid | Air | |
| Operating Temp, Range | 0 to 60°C | ||
| Operating Pressure Range | 0.05 to 0.7 MPa | ||
Thread: Brass (Nickel Plating)
Specification Table
| Part Number | — | Nominal | — | Body Color |
| MNSPJS6 | — | M5 | — | W |

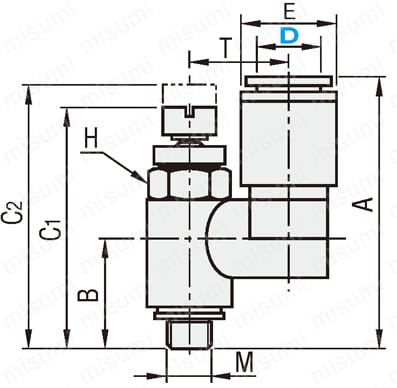

| Part Number | Nominal | Body Color | A | B | C1 | C2 | E | Wrench Flats H | T | Thread Size M | Mass (g) | Control Type | |
| Type | D | ||||||||||||
| MNSPJS | 3.2 | M5 | W (White) | 28 | 12.4 | 27.2 | 30.2 | 7.8 | 8 | 11.2 | M5 × 0.8 | 13.2 | Meter Out |
| 4 | M3 | B (Black) W (White) | 28.3 | 11.4 | 25.1 | 27.6 | 7.9 | 7 | 9.3 | M3 × 0.5 | 7.7 | ||
| M5 | 29 | 12.4 | 27.2 | 30.2 | 8.8 | 8 | 11.2 | M5 × 0.8 | 14 | ||||
| 6 | M5 | 30.6 | 12.4 | 27.2 | 30.2 | 10.8 | 8 | 11.2 | M5 × 0.8 | 15 | |||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| MNSPJS3.2-M5-W |
| MNSPJS4-M3-B |
| MNSPJS4-M3-W |
| MNSPJS4-M5-B |
| MNSPJS4-M5-W |
| MNSPJS6-M5-B |
| MNSPJS6-M5-W |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Tube O.D. D (mm) | Thread Nominal M | Body Color | |
|---|---|---|---|---|---|---|---|
16.75 € | 1 | Available | 5 Days | 3.2 | M5 | W (White) | |
16.75 € | 1 | Available | 5 Days | 4 | M3 | B (Black) | |
16.75 € | 1 | Available | 5 Days | 4 | M3 | W (White) | |
10.20 € | 1 | Available | 5 Days | 4 | M5 | B (Black) | |
10.20 € | 1 | Available | 5 Days | 4 | M5 | W (White) | |
10.59 € | 1 | Available | 5 Days | 6 | M5 | B (Black) | |
10.59 € | 1 | Available | 5 Days | 6 | M5 | W (White) |
Loading...
Specifications/Overview
Basic information
| Type | Speed Controllers | Control Type | Meter-Out | Joint Type | Threaded + One-Touch Fitting |
|---|---|---|---|---|---|
| Usage Environment/Application | Standard | Thread Material | Brass | Knob Type | With Straight Slot |
| Lock Nut Type | Lock Nuts | Operating Temperature Range(℃) | 0::60 | Operating Pressure Range(MPa) | 0.05::0.7 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
