Sheathed Thermocouples
This is a coating thermocouple. [Thermocouple type]Type K thermocouple [Operating temperature range]20 to 200°C.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
MSEN0.32-[200-3000/1]
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
- Technical Information

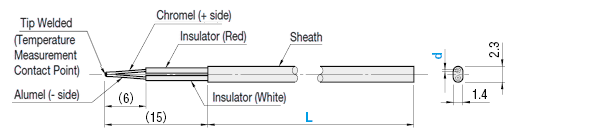

Dimensional Drawing
MSEN (K Thermocouple)
[Structure Diagram]
MSEW (K Thermocouple)
Operating Temperature Range: 20°C to 200°C
·The tip of sheathed thermocouples MSEN is welded.
[M] Material
Sheath/Insulator: Glass Wool
Sheath/Insulator: Glass Wool
Specification Table
| Part Number | — | L |
| MSEN0.32 MSEW0.32 | — — | 500 300 |
| Part Number | L 1 mm Increments | Precision | |
| Type | d Element Wire Dia. | ||
| MSEN MSEW | 0.32 | 200 to 3000 | JIS Class 2 |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Part Number
|
|---|
| MSEN0.32-[200-3000/1] |
| Part Number | Minimum order quantity | Volume Discount | RoHS | Sheath, Protecting Tube Length L (mm) | |
|---|---|---|---|---|---|
| 1 | 10 Days | 10 | 200 ～ 3000 |
Loading...
Specifications/Overview
■ Features
·Since the temperature measuring point is exposed, the reaction speed is faster than that of the sheathed type.
·Temperature measurement can be conducted based on the above measuring point of the tested object.
Before using MSEN, expose alumel and chromel and
twist / weld them to create the temperature measuring point.
Basic information
| Measurement Object | Temperature Sensors | Type of Temperature Sensor | Thermocouple | Type of Thermocouple | K Thermocouple |
|---|---|---|---|---|---|
| Operating Environment | Standard | Operating Temperature Range(℃) | 20::200 | Number of Elements | 1 |
| Sheath, Protecting Tube Shape | Sheathed Thermocouples | Chromel Alumel Welding | Not Provided |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
