Contact Probes / NP20 Series
- Promotional pricing
- Volume Discount
- Order quantities extended (D-JIT)
(i)Remark
- [Specification Change] The material of the receptacle will be changed from brass to copper alloy (phosphor bronze) as soon as current stock runs out.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
- Technical Information

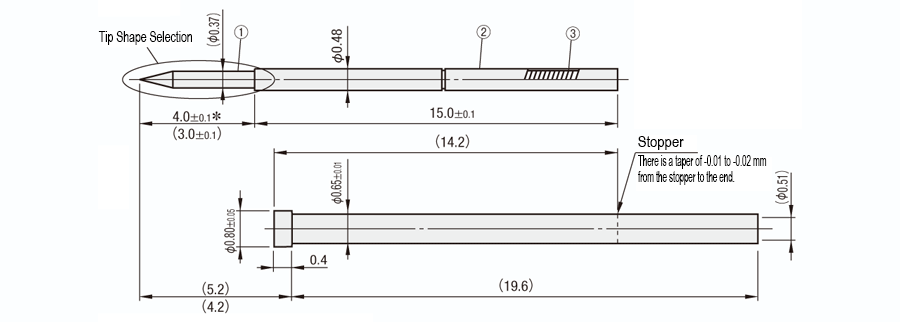

Dimensional Drawing
Contact
Probes
NP20
Receptacle
NR20K
| No. | Part | [M] Material | [S] Surface Treatment |
| (1) | Plunger | ISO−TC90 Equiv. | Rhodium Plating on Nickel Undercoat |
| (2) | Barrel | Phosphor Bronze | Gold Plating on Nickel Undercoat |
| (3) | Spring | Spring Steel (JIS−SWP) | Gold Plating |
[ ! ] Receptacles are selected from the following shapes.
| [M] Material | [S] Surface Treatment |
| Copper Alloy | Gold Plating on Nickel Undercoat |
[ ! ] Please refer to the receptacle specifications table for mounting hole dimensions.

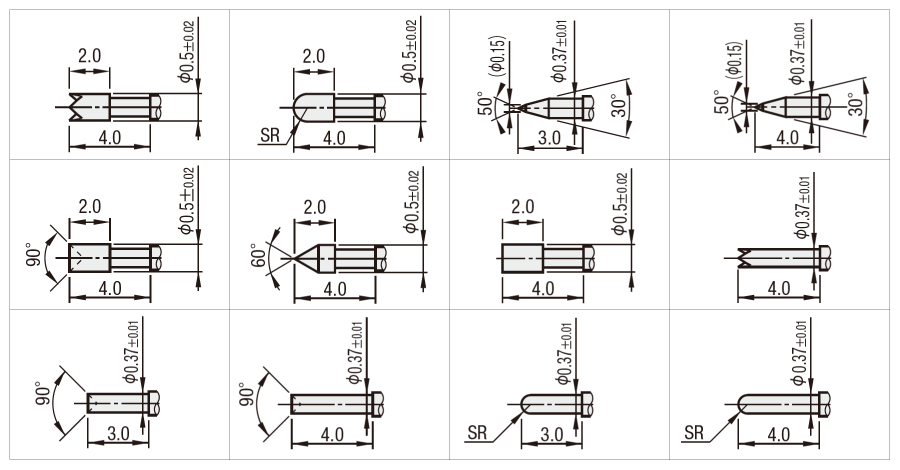

Contact Probes／NP20 Tip Shapes
* For tip shapes C, J, and N, the material of plunger is EN CW101C Equiv.
A (Four pieces)
B
C*
C40
D
E
G
N40
J*
J40
N*
H (Four pieces)
Receptacle／NR20K Shape
ＮR20K－B
ＮR20K－N－B
ＮR20K－C
Specification Table
| Part Number | — | Tip Shape |
| NP20 | — | A |
| Part Number | Tip Shape | Minimum mounting pitch＊ | Full Stroke | Spring Pressure | Allowable Current | Resistance | Replacement Cycle | |
| Initial | 2/3 Stroke | |||||||
| NP20 | A·B·C·C40· D·E·G·H·J· J40·N・N40 | 0.9 mm | 2.0 mm (3.0) mm | 20gf | 50gf | 1.5 A | 80mΩ | 30,000 times |
* Minimum center-to-center spacing between adjacent contact probes.
■Receptacle
| Part Number | Shape Pattern | Matching Contact Probe | Mounting Hole for Press Fitting Dimension (Reference) |
| NR20K | B N-B C | NP20 | 0.63 to 0.64 mm |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| NP20-A |
| NP20-B |
| NP20-C |
| NP20-C40 |
| NP20-D |
| NP20-E |
| NP20-G |
| NP20-H |
| NP20-J |
| NP20-J40 |
| NP20-N |
| NP20-N40 |
| NR20K-B |
| NR20K-C |
| NR20K-N-B |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Type | Min. Mounting Pitch (mm) | Plunger Tip Shape | Full Stroke (Range) (mm) | Full Stroke (mm) | 2/3 Stroke Spring Pressure (Range) (gf) | End Shape | Plunger Material | Plunger O.D. (Ø) | Plunger Surface Treatment | Plunger Length L1 (Range) (mm) | Receptacle O.D. D (Range) (Ø) | Barrel, Receptacle Material | Barrel, Receptacle O.D. (Ø) | Barrel, Receptacle Length L2 (Range) (mm) | Initial Spring Pressure (Range) (gf) | Allowable Current (A) | Resistance (mΩ) | Plunger Length (mm) | Receptacle Outermost Diameter (Ø) | Barrel, Receptacle Length (mm) | Initial Spring Pressure (gf) | 2/3 Stroke Spring Pressure (gf) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6.05 € | 1 | Available | 5 Days | 10 | Contact Probes | 0.9 | [Straight, Crowned] Straight Crown A | 1 to 2.6 | 2 | 30.1 to 50 | - | [Carbon steel] ISO-TC90 Equiv. | 0.5 | Nickel Plating Base, Rhodium Plating | 3.1 to 5 | - | [Copper Alloy] Phosphor Bronze | 0.48 | 10.1 to 15 | 10.1 to 20 | 1 | 100 | 4.0 | - | 15.0 | 20 | 50 | |
6.05 € 1.82 € | 1 | Available |
Same day
Stock | 10 | Contact Probes | 0.9 | [Sphere Shape (SR)] Sphere(SR) B | 1 to 2.6 | 2 | 30.1 to 50 | - | [Carbon steel] ISO-TC90 Equiv. | 0.5 | Nickel Plating Base, Rhodium Plating | 3.1 to 5 | - | [Copper Alloy] Phosphor Bronze | 0.48 | 10.1 to 15 | 10.1 to 20 | 1 | 100 | 4.0 | - | 15.0 | 20 | 50 | |
6.05 € | 1 | Available | 5 Days | 10 | Contact Probes | 0.9 | [Needle] Needle C | 3 to 4.5 | 3 | 30.1 to 50 | - | [Copper Alloy] EN CW101C Equiv. | 0.37 | Nickel Plating Base, Rhodium Plating | 0.1 to 3 | - | [Copper Alloy] Phosphor Bronze | 0.48 | 10.1 to 15 | 10.1 to 20 | 1 | 100 | 3.0 | - | 15.0 | 20 | 50 | |
6.05 € | 1 | Available |
Same day
Stock | 10 | Contact Probes | 0.9 | [Needle] Needle C40 | 1 to 2.6 | 2 | 30.1 to 50 | - | [Carbon steel] ISO-TC90 Equiv. | 0.37 | Nickel Plating Base, Rhodium Plating | 3.1 to 5 | - | [Copper Alloy] Phosphor Bronze | 0.48 | 10.1 to 15 | 10.1 to 20 | 1 | 100 | 4.0 | - | 15.0 | 20 | 50 | |
6.05 € 1.82 € | 1 | Available |
Same day
Stock | 10 | Contact Probes | 0.9 | [Cup] Cup D | 1 to 2.6 | 2 | 30.1 to 50 | - | [Carbon steel] ISO-TC90 Equiv. | 0.5 | Nickel Plating Base, Rhodium Plating | 3.1 to 5 | - | [Copper Alloy] Phosphor Bronze | 0.48 | 10.1 to 15 | 10.1 to 20 | 1 | 100 | 4.0 | - | 15.0 | 20 | 50 | |
6.05 € | 1 | Available | 5 Days | 10 | Contact Probes | 0.9 | [Needle] Needle E | 1 to 2.6 | 2 | 30.1 to 50 | - | [Carbon steel] ISO-TC90 Equiv. | 0.5 | Nickel Plating Base, Rhodium Plating | 3.1 to 5 | - | [Copper Alloy] Phosphor Bronze | 0.48 | 10.1 to 15 | 10.1 to 20 | 1 | 100 | 4.0 | - | 15.0 | 20 | 50 | |
6.05 € | 1 | Available | 5 Days | 10 | Contact Probes | 0.9 | [Flat] Flat G | 1 to 2.6 | 2 | 30.1 to 50 | - | [Carbon steel] ISO-TC90 Equiv. | 0.5 | Nickel Plating Base, Rhodium Plating | 3.1 to 5 | - | [Copper Alloy] Phosphor Bronze | 0.48 | 10.1 to 15 | 10.1 to 20 | 1 | 100 | 4.0 | - | 15.0 | 20 | 50 | |
6.05 € | 1 | Available | 5 Days | 10 | Contact Probes | 0.9 | [Straight, Crowned] Straight Crown H | 1 to 2.6 | 2 | 30.1 to 50 | - | [Carbon steel] ISO-TC90 Equiv. | 0.37 | Nickel Plating Base, Rhodium Plating | 3.1 to 5 | - | [Copper Alloy] Phosphor Bronze | 0.48 | 10.1 to 15 | 10.1 to 20 | 1 | 100 | 4.0 | - | 15.0 | 20 | 50 | |
6.05 € | 1 | Available | 5 Days | 10 | Contact Probes | 0.9 | [Cup] Cup J | 3 to 4.5 | 3 | 30.1 to 50 | - | [Copper Alloy] EN CW101C Equiv. | 0.37 | Nickel Plating Base, Rhodium Plating | 0.1 to 3 | - | [Copper Alloy] Phosphor Bronze | 0.48 | 10.1 to 15 | 10.1 to 20 | 1 | 100 | 3.0 | - | 15.0 | 20 | 50 | |
6.05 € | 1 | Available | 5 Days | 10 | Contact Probes | 0.9 | [Cup] Cup J40 | 1 to 2.6 | 2 | 30.1 to 50 | - | [Carbon steel] ISO-TC90 Equiv. | 0.37 | Nickel Plating Base, Rhodium Plating | 3.1 to 5 | - | [Copper Alloy] Phosphor Bronze | 0.48 | 10.1 to 15 | 10.1 to 20 | 1 | 100 | 4.0 | - | 15.0 | 20 | 50 | |
6.05 € | 1 | Available |
Same day
Stock | 10 | Contact Probes | 0.9 | [Sphere Shape (SR)] Sphere(SR) N | 3 to 4.5 | 3 | 30.1 to 50 | - | [Copper Alloy] EN CW101C Equiv. | 0.37 | Nickel Plating Base, Rhodium Plating | 0.1 to 3 | - | [Copper Alloy] Phosphor Bronze | 0.48 | 10.1 to 15 | 10.1 to 20 | 1 | 100 | 3.0 | - | 15.0 | 20 | 50 | |
6.05 € | 1 | Available | 5 Days | 10 | Contact Probes | 0.9 | [Sphere Shape (SR)] Sphere(SR) N40 | 1 to 2.6 | 2 | 30.1 to 50 | - | [Carbon steel] ISO-TC90 Equiv. | 0.37 | Nickel Plating Base, Rhodium Plating | 3.1 to 5 | - | [Copper Alloy] Phosphor Bronze | 0.48 | 10.1 to 15 | 10.1 to 20 | 1 | 100 | 4.0 | - | 15.0 | 20 | 50 | |
1.64 € | 1 | Available |
Same day
Stock | 10 | Receptacle | - | - | - | - | - | [Cylindrical] NR20K-B | - | - | - | - | 0.01 to 1 | [Copper Alloy] Copper Alloy | 0.65 | 15.1 to 20 | - | - | - | - | 0.8 | 19.6 | - | - | |
1.64 € | 1 | Available | 5 Days | 10 | Receptacle | - | - | - | - | - | [Cylindrical] NR20K-N-B | - | - | - | - | 0.01 to 1 | [Copper Alloy] Copper Alloy | 0.65 | 15.1 to 20 | - | - | - | - | 0.8 | 19.6 | - | - | |
1.64 € | 1 | Available | 5 Days | 10 | Receptacle | - | - | - | - | - | [Cylindrical] NR20K-C | - | - | - | - | 0.01 to 1 | [Copper Alloy] Copper Alloy | 0.65 | 15.1 to 20 | - | - | - | - | 0.65 | 19.6 | - | - |
Loading...
Basic information
| Properties | Standard |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Type
- Contact Probes
- Receptacle
-
Min. Mounting Pitch(mm)
-
Plunger Tip Shape
- Needle
- Sphere Shape (SR)
- Cup
- Flat
- Straight, Crowned
- Needle
-
Full Stroke (Range)(mm)
-
Full Stroke(mm)
-
2/3 Stroke Spring Pressure (Range)(gf)
- 30.1 to 50
-
End Shape
- Cylindrical
- Cylindrical
-
Plunger Material
- Copper Alloy
- Carbon steel
- Copper Alloy
-
Plunger O.D.(Ø)
-
Plunger Surface Treatment
- Nickel Plating Base, Rhodium Plating
-
Plunger Length L1 (Range)(mm)
-
Receptacle O.D. D (Range)(Ø)
- 0.01 to 1
-
Barrel, Receptacle Material
- Copper Alloy
- Copper Alloy
-
Barrel, Receptacle O.D.(Ø)
-
Barrel, Receptacle Length L2 (Range)(mm)
- 10.1 to 15
- 15.1 to 20
-
Initial Spring Pressure (Range)(gf)
-
Allowable Current(A)
-
Resistance(mΩ)
-
Plunger Length(mm)
-
Receptacle Outermost Diameter(Ø)
-
Barrel, Receptacle Length(mm)
-
Initial Spring Pressure(gf)
-
2/3 Stroke Spring Pressure(gf)
-
Type
- NP20
- NR20K-B
- NR20K-C
- NR20K-N-B
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
