Chain Tensioners / Idler Set
- Promotional pricing
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
Dimensional Drawing
| ·Spacers (4 pcs.) | ·M8 Screw (4 pcs.) | ·M8 Nut (4 pcs.) | ||
 |  |  |
| Type | Material | Surface Treatment |
| Idler Sprockets | EN 1.1181 Equiv. (Tooth Surface: Induction Hardened) | Black oxide |
| Base Plate | EN 1.0718 Equiv. | |
| Spacer |
Specification Table
| Part Number |
| THBS35 |
| Part Number | Idler Sprockets | A | B | Mass (kg) | ||||
| Type | Nominal | Part No. | Number of Teeth | Do | Dp | |||
| THBS | 35 | DRC35−18 | 18 | 60 | 54.85 | 26 | 47 | 0.89 |
| 40 | DRC40−15 | 15 | 67 | 61.08 | 0.92 | |||
| 50 | DRC50−13 | 13 | 74 | 66.34 | 0.96 | |||
| 60 | DRC60−11 | 11 | 76 | 67.62 | 1.00 | |||
| 80 | DRC80−9 | 9 | 85 | 74.26 | 30 | 51 | 1.11 | |
| Type | TSUB | TNSR TNSN | TNSRL TNSNL | THBS | TSBXA |
| Driving Side | ○ | ○ | × | × | × |
| Driven Side | ○ | ○ | ○ | ○ | ○ |
| Middle part* | ○ | ○ | ○ | ○ | △ |
TSBXA can be used where tension is constantly applied on the driven side.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| THBS35 |
| THBS40 |
| THBS50 |
| THBS60 |
| THBS80 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | No. (Applicable Roller Chain) | |
|---|---|---|---|---|---|---|
52.90 € 29.10 € | 1 | Available |
Same day
Stock | 10 | 35 (JIS35) | |
53.91 € | 1 | Available | 5 Days | 10 | 40 (JIS40) | |
53.91 € | 1 | Available | 5 Days | 10 | 50 (JIS50) | |
54.91 € | 1 | Available | 5 Days | 10 | 60 (JIS60) | |
58.94 € | 1 | Available | 5 Days | 10 | 80 (JIS80) |
Loading...
Specifications/Overview

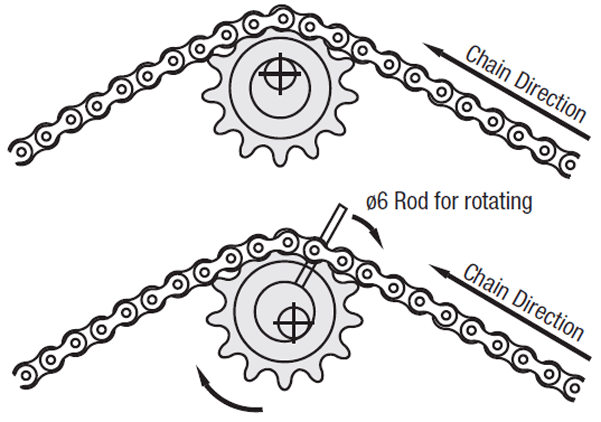

| (Fig. 1) (Fig. 2) |  | ||
 | Align the centers of the Sprocket and the Chain well. | ||
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
