6 Series / Corner Bracket Set / R Type
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
- Technical Information
Two-Way Type HBLCS6—B
Three-Way Type
HBLCR6—B (Cap: Black)
HBLCR6—S (Cap: Gray)
HBLCD6—S (Cap: Gray)
(1)
(1) (Front Side)
(Back Side)
(1)
(2) Cap for Corner Brackets
(2) Cap for Corner Brackets
(2) Cap for Corner R Brackets
(Hex Socket Head Cap Screw 2 pcs. included)
(Accessory: Button Head Cap Screws 3 pcs.)
(Accessory: Button Head Cap Screws 3 pcs.)
[ ! ] As HBLCR6-□ is zinc die cast, use it under 100°C.
| Type | Material | Surface Treatment |
| HBLCS6 | EN AC−46100 Equiv. | — |
| Polyamide | ||
| HBLCR6 | EN ZC0400 Equiv. | Trivalent Chromate |
| Polyamide | — | |
| HBLCD6 | EN 1.4308 Equiv. | |
| Polyamide |
Specification Table
| Part Number |
| HBLCR6−B |
| Part Number | Mass (g) | Included Screw | Allowable Load (N) | |
| Screws | Quantity | |||
| HBLCS6−B | 27 | CBS8−25 | 2 | 500 |
| HBLCR6−B | 59 | BCB8−25 | 3 | 999 |
| HBLCR6−S | ||||
| HBLCD6−S | 45 | Button Head Cap Screw M8 × 25 | 3 | 1862 |
Applicable Extrusion
- Applicable to 6 Series 30 × 30 mm.
- HBLCD is applicable to 6 Series 30 × 30 mm R-Shaped Extrusions.
App. Example
·In installation, end tapping (center hole) alterations on the aluminum extrusions are necessary.

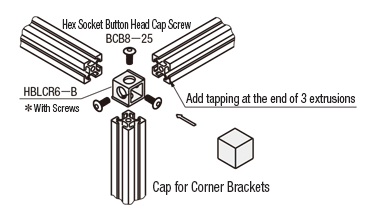

■App. Example: Corner Bracket HBLCR
Reference
- The end cap has a measure to prevent it from slipping off.
- The set includes the bracket, screws, and end caps.
- This aluminum extrusion is not inserted into the bracket.
The length of 1 side is the length of the aluminum extrusion + the size of the bracket.
Product Comparison Information
■Corner Blind Brackets
| Product Name | Corner Bracket Set | For Corners Blind Brackets |
|---|---|---|
| Product Photo |
|
|
| Installation Diagram |
■App. Example: Corner Bracket HBLCR
| The position of 3 extrusions They function as extrusion end caps.
|
| Material | EN 1.1191 Equiv. or EN 1.4308 Equiv. | EN 1.1191 Equiv. or EN 1.4308 Equiv. |
| Features | The product that a single bracket can connect in 2 or 3-ways. End tapping alterations on extrusions are necessary. | Connectable brackets to the end face of extrusion,including function as extrusion end caps |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| HBLCD6-S |
| HBLCR6-B |
| HBLCR6-S |
| HBLCS6-B |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Material | Bracket Type | Cap Color | |
|---|---|---|---|---|---|---|---|
8.33 € | 1 | Available |
Same day
Stock | EN 1.4308 Equiv. | Corner Bracket Set, Three-Way Type | S (Gray) | |
5.46 € | 1 | Available |
Same day
Stock | EN ZC0400 Equiv. | Corner Bracket Set, Three-Way Type | B (Black) | |
5.46 € | 1 | Available | 5 Days | EN ZC0400 Equiv. | Corner Bracket Set, Three-Way Type | S (Gray) | |
5.55 € | 1 | Available | 5 Days | EN AC-46100 Equiv. | Corner Bracket Set, Two-Way Type | B (Black) |
Loading...
Basic information
| Extrusion Series | HFS | Extrusion No. | 6 | Extrusion Size | For 30 |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Material
- EN AC-46100 Equiv.
- EN 1.4308 Equiv.
- EN ZC0400 Equiv.
-
Bracket Type
- Corner Bracket Set, Three-Way Type
- Corner Bracket Set, Two-Way Type
-
Cap Color
- B (Black)
- S (Gray)
-
Type
- HBLCD6-S
- HBLCR6-B
- HBLCR6-S
- HBLCS6-B
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
