6 Series / slot width 8 / Mixed Series (5 and 6) / Base 30 / H Style
Click on this image to zoom in.
Click on this image to zoom in.
(i)Remark
- Cutting is free for this product. Please specify the length you prefer.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
- Technical Information

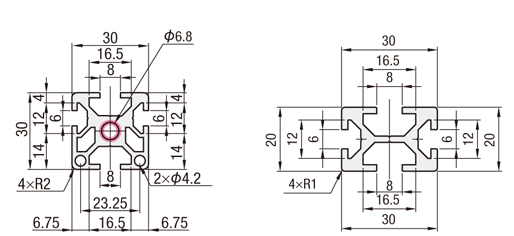

HFS6－5H－3030 HFS6－5Y－2030
| 5 Series |
 |
| 6 Series |
 |
[S]Surface Treatment: Clear Anodize
[ ! ] When tapped hole alterations are specified, the red circles on the outline drawing of the aluminum extrusion will be machined.
Specification Table
| Part Number | — | L |
| HFS6−5H−3030 | — | 800 |
| Part Number | L 0.5 mm Increments | Mass kg/m | Sectional Area mm2 | Cross Sectional Moment of Inertia mm4 | |||
| Type | Shape | No. | ℓx | ℓy | |||
| HFS6−5 | H | 3030 | 50 to 4000 | 1.04 | 388 | 3.08 × 104 | 3.51 × 104 |
| Y | 2030 | 0.70 | 260 | 1.10 × 104 | 2.61 × 104 | ||
Alterations
| Alterations | Tapping (Main Body +) | |||||
| Spec. | Tap Shape | Left | Right | Both | ||
| Code | LTP | RTP | TPW | |||
| HFS6－5 | H | 3030 | M8 Depth 24 | |||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| HFS6-5H-3030-[50-4000/0.5] |
| HFS6-5Y-2030-[50-4000/0.5] |
| Part Number | Minimum order quantity | Volume Discount | RoHS | Standard Extrusion Size (mm) | Extrusion Size: Thickness (T) (mm) | Overall Length L (mm) | |
|---|---|---|---|---|---|---|---|
| 1 | 5 Days | 10 | 30 | 30 | 50 ～ 4000 | ||
| 1 | 5 Days | 10 | 20 | 20 | 50 ～ 4000 |
Loading...
Basic information
| Extrusion Series | 6 Series | Extrusion Type | Groove Width Mixed | Extrusion Type | HFS (Standard) |
|---|---|---|---|---|---|
| Surface Treatment | Clear Anodize | Surface Milled | Not Provided | Material | EN AC-51400-T5 Equiv. |
| Extrusion Size: Width (A)(mm) | 30 | L Dimension Fixed, Specified | Configuration |
Configure
Basic Attributes
-
Standard Extrusion Size(mm)
-
Extrusion Size: Thickness (T)(mm)
-
Overall Length L(mm)
-
Type
- HFS6-5H-3030
- HFS6-5Y-2030
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Complementary Products
-
6 Series (Groove Width 8 mm), 1-Row Groove, Reversing Bracket With Protrusion
MISUMI Standard Price : 0.85 € Shipping Days: Same day
-
6 Series / Corner Blind Brackets / Base 30 / Two-Way Type
MISUMI Standard Price : 8.06 € Shipping Days: Same day
-
6 Series / Pre-Assembly Insertion Nuts (Stopper Integrated)
MISUMI Standard Price : 0.60 € Shipping Days: Same day
