Fence Extrusions / H Shape
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
- Technical Information
(See below for detailed dimensions)
[ ! ] Cut surfaces are not anodized.
HFSFES30－3
3 mm Thick One-Sided for 30 Square
HFSFES30－5
5 mm Thick One-Sided for 30 Square
HFSFES40－3
3 mm Thick One-Sided for 40 Square
HFSFES40－5
5 mm Thick One-Sided for 40 Square
Material: EN AW−6063−T5 Equiv.
Surface treatment: Clear Anodize
Surface treatment: Clear Anodize
Specification Table
| Part Number | — | L |
| HFSFES30−3 | — | 1200 |
| Part Number | L 1 mm increments | Mass kg/m | Sectional Area mm2 | Cross Sectional Moment of Inertia mm4 | ||
| Type | No. | ℓx | ℓy | |||
| HFSFES | 30−3 | 50 to 4000 | 0.34 | 125 | 1074 | 9933 |
| 30−5 | 0.41 | 150 | 2035 | 10690 | ||
| 40−3 | 0.42 | 153 | 1430 | 22510 | ||
| 40−5 | 0.48 | 176 | 2656 | 23830 | ||
Alterations
Specified hole machining is available.| Alterations | Counterboring | Through Hole | ||||||||||||
| Code | Z Selection | XA | XB | XC | XD | XE | D Selection | XA | XB | XC | XD | XE | ||
| Spec. | Z | d | d1 | Distance from the Left End mm | ⌀D | Distance from the Left End mm | ||||||||
| Specifications of Hole Size and Position | 5 | 5.5 | 9.5 | 7 or more(L−7) | 3.5 | 7 or more(L−7) | ||||||||
| 6 | 6.5 | 11 | 4.5 | |||||||||||
| — | 5.5 | |||||||||||||
| 6.5 | ||||||||||||||
■Specified Hole Machining
(1) Select hole type and size Z (for Counterbore) or D (for Through hole).
(2) Specify the distance from the left end to holes XA, XB, XC, XD and XE in order.
(3) Specify up to 5 counterbores or through holes.
[NG] Combination of counterbore and through hole is not available
(1) Select hole type and size Z (for Counterbore) or D (for Through hole).
(2) Specify the distance from the left end to holes XA, XB, XC, XD and XE in order.
(3) Specify up to 5 counterbores or through holes.
[NG] Combination of counterbore and through hole is not available

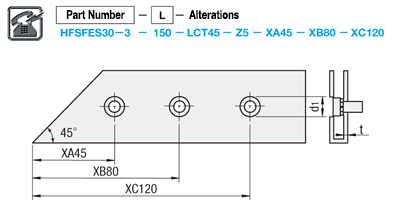

| Alterations | 45° Cut [ ! ] Applicable to HFSFES only | |
| Left | Right | |
| Code | LCT45 | RCT45 |
| Spec. |  |  |
·For counterbores, the screw goes in as much as the thickness of t.
·The side walls of counterbores may break due to drilling.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Part Number
|
|---|
| HFSFES30-3-[50-4000/1] |
| HFSFES30-5-[50-4000/1] |
| HFSFES40-3-[50-4000/1] |
| HFSFES40-5-[50-4000/1] |
| Part Number | Minimum order quantity | Volume Discount | RoHS | Extrusion Size: Width (mm) | Compatible Plate Width | Overall Length L (mm) | |
|---|---|---|---|---|---|---|---|
| 1 | 5 Days | 10 | 30 | 3 | 50 ～ 4000 | ||
| 1 | 5 Days | 10 | 30 | 5 | 50 ～ 4000 | ||
| 1 | 5 Days | 10 | 40 | 3 | 50 ～ 4000 | ||
| 1 | 5 Days | 10 | 40 | 5 | 50 ～ 4000 |
Loading...
Specifications / Overview
(1) Assembling Panel Extrusions
(3) Joint Brackets and (4) Fence Extrusions (C Type) are mounted with screws on the (2) Extrusion Frame fastened to the base with (1) Anchors.
(3) Joint Brackets and (4) Fence Extrusions (C Type) are mounted with screws on the (2) Extrusion Frame fastened to the base with (1) Anchors.
(2) Inserting Panel
Panels are installed by sliding into the extrusion slots.
Panels are installed by sliding into the extrusion slots.
(3) Fixing Panel
Panels are fixed with the (6) Fence Extrusions (C Type) and (5) Joint Brackets.
(Install additional aluminum extrusions with anchors.)
Panels are fixed with the (6) Fence Extrusions (C Type) and (5) Joint Brackets.
(Install additional aluminum extrusions with anchors.)
■Connecting Fence Extrusions to Aluminum Extrusions
Fence extrusions need to be drilled before connecting to aluminum extrusion.
(1) Example of Counterbore Holes (Even if the cover caps for screws BTCSW are not used, there is no problem.)
(2) Example of Through Holes
Fence extrusions need to be drilled before connecting to aluminum extrusion.
(1) Example of Counterbore Holes (Even if the cover caps for screws BTCSW are not used, there is no problem.)
3 mm Thick Plates
5 mm Thick Plates
3 mm Thick Plates
5 mm Thick Plates
Basic information
| Type | C Extrusions |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
