Factory Frames【1-6 Pieces Per Package】
(i)Remark
- Cutting is free for this product. Please specify the length you prefer.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog

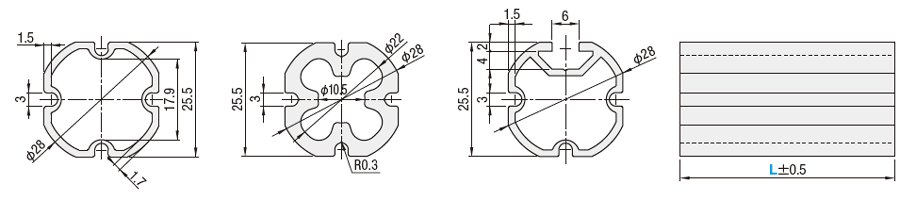

FFAS T Groove Dimension
Enlarged View of A
[Standard Type]
FFA (L Configurable)
FFATS (Base material 3000 mm 6 pcs. /set)
FFAKS (Base material 4000 mm 5 pcs./set)
[High Rigidity Type]
FFAU (L Configurable)
FFAUTS (Base material 3000 mm 6 pcs. /set)
FFAUKS (Base material 4000 mm 5 pcs./set)
[Groove Type]
FFAS (L Configurable)
FFASTS (Base material 3000 mm 6 pcs. /set)
FFASKS (Base material 4000 mm 5 pcs./set)
| Type | [M] Material | [S] Surface Treatment | ||
| L Configurable | 3000 mm 6 pcs./set | 4000 mm 5 pcs./set | ||
| FFA | FFATS | FFAKS | EN AW−6061−T5 Equiv. | Anodize |
| FFAU | FFAUTS | FFAUKS | ||
| FFAS | FFASTS | FFASKS | ||
Specification Table
| Part Number | — | L |
| FFA28 FFATS28 | — | 1800 |
| Part Number | L 1 mm Increments | Mass kg/m | Sectional Area mm2 | Geometrical Moment of Inertia mm4 | ||
| Type | No. | ℓx | ℓy | |||
| FFA | 28 | 60 to 4000 | 0.37 | 137.2 | 1.07 × 104 | 1.07 × 104 |
| FFAU | 0.82 | 303.1 | 1.86 × 104 | 1.86 × 104 | ||
| FFAS | 0.42 | 155.6 | 1.11 × 104 | 1.12 × 104 | ||
■3000 mm 6 pcs./set
| Part Number | L (mm) | Mass kg/pc. | |
| Type | No. | ||
| FFATS | 28 | 3000 (6 pcs./ set) | 1.11 |
| FFAUTS | 2.46 | ||
| FFASTS | 1.26 | ||
■ (4000 mm 5 pcs./set)
| Part Number | L (mm) | Mass kg/pc. | |
| Type | No. | ||
| FFAKS | 28 | 4000 (5 pcs./set) | 1.49 |
| FFAUKS | 3.28 | ||
| FFASKS | 1.69 | ||
Alterations
| Alterations | Tapping on Ends | |||
| Code | Tap Shape | LTP | RTP | TPW |
| Spec. | The illustration below shows the basic frame position. | |||
| Applicable Frame | LTP: Left End | RTP: Right End | TPW: Both Ends | |
 |  |  | ||
| FFAU | M12 Depth 36 | |||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| FFA28-[60-4000/1] |
| FFAKS28 |
| FFAS28-[60-4000/1] |
| FFASKS28 |
| FFASTS28 |
| FFATS28 |
| FFAU28-[60-4000/1] |
| FFAUKS28 |
| FFAUTS28 |
| Part Number |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | RoHS | Pipe Thickness (mm) | Sale Type | Overall Length L (mm) | |
|---|---|---|---|---|---|---|---|---|---|
- | 1 | 5 Days | 10 | 1.7 | Sold Separately | 60 ～ 4000 | |||
127.28 € | 5 Pieces Per Package | 1 pack | 5 Days | 10 | 1.7 | 5 pcs./set | 4000 | ||
- | 1 | 5 Days | 10 | 1.5 | Sold Separately | 60 ～ 4000 | |||
150.77 € | 5 Pieces Per Package | 1 pack | 5 Days | 10 | 1.5 | 5 pcs./set | 4000 | ||
135.81 € | 6 Pieces Per Package | 1 pack | 5 Days | 10 | 1.5 | 6 pcs./set | 3000 | ||
84.43 € | 6 Pieces Per Package | 1 pack | 5 Days | 10 | 1.7 | 6 pcs./set | 3000 | ||
- | 1 | 5 Days | 10 | 3.0 | Sold Separately | 60 ～ 4000 | |||
292.22 € | 5 Pieces Per Package | 1 pack | 5 Days | 10 | 3.0 | 5 pcs./set | 4000 | ||
264.10 € | 6 Pieces Per Package | 1 pack | 5 Days | 10 | 3.0 | 6 pcs./set | 3000 |
Loading...
App. Example
Basic information
| Operating Environment | Standard | Pipe Material | EN AW-6061-T6 Equiv. | Pipe O.D.(Ø) | 28 |
|---|---|---|---|---|---|
| Color | No Coating | Surface Treatment, Coating | Clear Anodize | Shape | Straight |
Configure
Basic Attributes
-
Sale Type
- 5 pcs./set
- 6 pcs./set
- Sold Separately
-
Overall Length L(mm)
-
Type
- FFA
- FFAKS
- FFAS
- FFASKS
- FFASTS
- FFATS
- FFAU
- FFAUKS
- FFAUTS
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
