Antivibration Mounting Plates
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
- Order quantities extended (D-JIT)
- Stock
(i)Remark
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
KMBS
| Part Number | [M] Material | [S] Surface Treatment | [H] Hardness | |
| KMBU | Plate | EN 1.0330 Equiv. | Trivalent Chromate | — |
| Main Body | EN 1.1191 Equiv. | |||
| Damper | Chloroprene Rubber | — | Shore 60 | |
| KMBS | Plate | EN 1.4301 Equiv. | — | — |
| Main Body | ||||
| Damper | Chloroprene Rubber | Shore 60 | ||
Specification Table
| Part Number | — | Damper Hardness |
| KMBU10 | — | N |

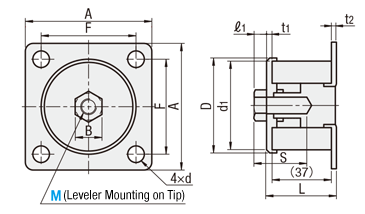

| Part Number | Damper Hardness | L | D | d1 | S | t1 | B | ℓ1 | A | F | t2 | d | Vertical Load (kN) | Mass (g) | ||
| Type | M | KMBU | KMBS | |||||||||||||
| KMBU KMBS | 6 | N | 42 | 45 | 40 | 28 | 2.5 | 10 | 3.5 | 80 | 60 | 2.3 | 2.5 | 8.5 | 1 | 260 |
| 8 | 43 | 55 | 50 | 30 | 3.5 | 13 | 5 | 1.5 | 340 | |||||||
| 10 | 44 | 60 | 55 | 31 | 17 | 6 | 3.2 | 3 | 10.5 | 2 | 420 | |||||
| 12 | 72 | 67 | 32 | 19 | 7 | 100 | 80 | 2.5 | 630 | |||||||
| ※16 | 44.5 | 88 | 83 | 33 | 24 | 10 | 115 | 90 | 4 | - | 12.5 | 3 | 1000 | |||
| ※20 | 45 | 103 | 98 | 34 | 4 | 30 | 12 | 3.5 | 1220 | |||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| KMBS6-N |
| KMBS8-N |
| KMBS10-N |
| KMBS12-N |
| KMBU6-N |
| KMBU8-N |
| KMBU10-N |
| KMBU12-N |
| KMBU16-N |
| KMBU20-N |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Body Material | Main Body Surface Treatment | Allowable Load (kN) | Thread Nominal M (mm) | |
|---|---|---|---|---|---|---|---|---|---|
43.57 € | 1 | Available | 5 Days | 10 | [Stainless Steel] EN 1.4301 Equiv. | - | 1 | 6 | |
58.18 € | 1 | Available | 5 Days | 10 | [Stainless Steel] EN 1.4301 Equiv. | - | 1.5 | 8 | |
67.37 € | 1 | Available | 5 Days | 10 | [Stainless Steel] EN 1.4301 Equiv. | - | 2 | 10 | |
82.74 € | 1 | Available | 5 Days | 10 | [Stainless Steel] EN 1.4301 Equiv. | - | 2.5 | 12 | |
31.35 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | Trivalent Chromate | 1 | 6 | |
41.57 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | Trivalent Chromate | 1.5 | 8 | |
46.09 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | Trivalent Chromate | 2 | 10 | |
54.79 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | Trivalent Chromate | 2.5 | 12 | |
98.22 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | Trivalent Chromate | 3 | 16 | |
162.46 € | 1 | Available | 5 Days | 10 | [Steel] EN 1.1191 Equiv. | Trivalent Chromate | 3.5 | 20 |
Loading...
Specifications / Overview
·Suitable for vibration countermeasures for vibratory equipment and machinery.
·Can be used with Leveling Mounts with less than 5° inclination.
·Damper will not stain floor since not in contact with the floor.
This product's antivibration effects (vibration transmissibility) heavily depend on applied loads and frequency of supported objects (natural frequency).
The graph below shows anticipated antivibration effects of this product calculated from frequencies of supported objects.
(1) Calculations of Applied Load per Attachment.
Ex) When an object of 600 kg is supported by 4 shafts 600÷4 = 150 (kgf)
(2) Natural Frequency of the Object is evaluated.Frequency = Number of Vibrations per Second
Ex) When motor speed is 1,800 rpm, 1,800 (rpm)/60 (s) = 30 (Hz)
By plotting data obtained from (1) and (2) over the graph, the appropriate type of the attachment and vibration transmissibility under above condition can be found out.
If KMBU(S)12 is selected with supported load to be 150 kg per foot,
transmissibility for vibrations above 30 Hz is reduced to 1/3 or less.
Example (B):
If KMBU(S)6 is selected with supported load to be 50 kg per foot,
transmissibility for vibrations above approximately 40 Hz is reduced to 1/10 or less.
[ ! ]All values are calculated, and not guaranteed.
App. Example
Basic information
| Damper Hardness | N (Shore 60) |
|---|
