Flat Tension Levers / With Hexagonal Socket Head / Threaded
- Promotional pricing
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

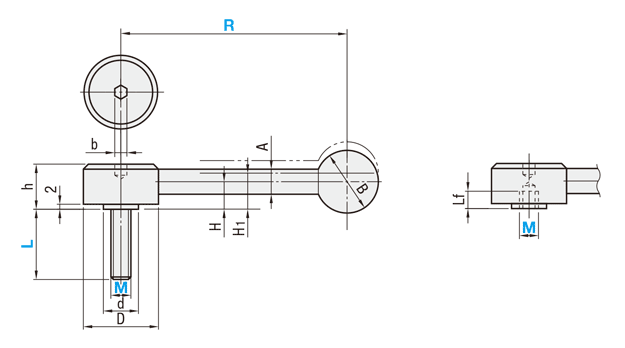

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
LFTMR
LFTMRF
R Dimension Fixed - Threaded
R Dimension Configurable - Threaded
LFTFRS
R Dimension Fixed - Tapped
[ ! ] Hex Socket b is created during a production of Levers. It is not a socket used during an installation of Levers.
| Type | R Dimension | Shape | Main Body, Lever | Handle | ||
| [M] Material | [S] Surface Treatment | [M] Material | [S] Surface Treatment | |||
| LFTMR | R Dimension Fixed | Threaded | EN 1.1191 Equiv. | Cathodic Coating (Black) | Phenol Resin (Black) | — |
| LFTFRS | Tapped | EN 1.4305 Equiv. | — | EN 1.4301 Equiv. | Electrolytic Polishing | |
| LFTMRF | R Dimension Configurable | Threaded | EN 1.1191 Equiv. | Cathodic Coating (Black) | Phenol Resin (Black) | — |
Specification Table
| Part Number | — | L | — | R |
| LFTM 8 LFTMF 8 LFTMRF 8 LFTFRS 8 | — — | 30 30 | — | 110 |
| Part Number | L Selection (Threaded Type only) | R | Lf | H | H1 | h | A | B | b | D | d | Serrations Number of Teeth | Fmax. Max. Load (N) | Pmax. Max. Tightening Force (kN) | Reference Mass (g) | ||||||
| Type | M (Coarse) | Fixed | 10 mm Increments (LFTMRF only) | Steel | Stainless Steel | ||||||||||||||||
| Threaded LFTMR LFTMRF Tapped LFTFRS | 8 | 30 | 40 | 50 | 100 | 80 to 120 | 8 | 12 | 16 | 19 | 10 | 25 | 3 | 33 | 13 | 22 | 120 | 10 | 185 | 250 | |
| 10 | 30 | 40 | 50 | 60 | 130 | 100 to 150 | 11 | 13.5 | 17.5 | 22 | 12 | 30 | 5 | 41 | 19 | 26 | 180 | 16 | 340 | 400 | |
| 12 | 30 | 40 | 50 | 60 | 300 | 23 | 350 | 400 | |||||||||||||
| 16 | 40 | 50 | 60 | 150 | 120 to 180 | 14 | 17 | 22 | 28 | 14 | 35 | 45 | 23 | 36 | 660 | 43 | 580 | 680 | |||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Mounting Section Type | Rotating Radius R (mm) | Lever Material | Lever Surface Treatment | Mounting Section Material | Mounting Section Surface Treatment | Knob (Handle) Material | Mounting Section Dia. M | Mounting Section, Length L (mm) | Max. Tightening Force (N) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
61.83 € | 1 | Available | 5 Days | 10 | Tapped | - | [Stainless Steel] EN 1.4305 Equiv. | Not Provided | [Stainless Steel] EN 1.4305 Equiv. | Not Provided | [Stainless Steel] EN 1.4301 Equiv. | 8 | - | 10000 | |
70.02 € | 1 | Available | 5 Days | 10 | Tapped | - | [Stainless Steel] EN 1.4305 Equiv. | Not Provided | [Stainless Steel] EN 1.4305 Equiv. | Not Provided | [Stainless Steel] EN 1.4301 Equiv. | 10 | - | 16000 | |
76.32 € | 1 | Available | 5 Days | 10 | Tapped | - | [Stainless Steel] EN 1.4305 Equiv. | Not Provided | [Stainless Steel] EN 1.4305 Equiv. | Not Provided | [Stainless Steel] EN 1.4301 Equiv. | 12 | - | 23000 | |
84.50 € | 1 | Available | 5 Days | 10 | Tapped | - | [Stainless Steel] EN 1.4305 Equiv. | Not Provided | [Stainless Steel] EN 1.4305 Equiv. | Not Provided | [Stainless Steel] EN 1.4301 Equiv. | 16 | - | 43000 | |
24.81 € | 1 | Available | 5 Days | 10 | [Male thread] Threads | - | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 30 | 10000 | |
24.81 € 17.37 € | 1 | Available |
Same day
Stock | 10 | [Male thread] Threads | - | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 40 | 10000 | |
24.81 € | 1 | Available | 5 Days | 10 | [Male thread] Threads | - | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 50 | 10000 | |
26.19 € | 1 | Available | 5 Days | 10 | [Male thread] Threads | - | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 30 | 16000 | |
26.19 € | 1 | Available | 5 Days | 10 | [Male thread] Threads | - | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 40 | 16000 | |
26.19 € | 1 | Available | 5 Days | 10 | [Male thread] Threads | - | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 50 | 16000 | |
26.19 € | 1 | Available | 5 Days | 10 | [Male thread] Threads | - | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 60 | 16000 | |
28.73 € | 1 | Available | 5 Days | 10 | [Male thread] Threads | - | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 12 | 30 | 23000 | |
28.73 € | 1 | Available | 5 Days | 10 | [Male thread] Threads | - | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 12 | 40 | 23000 | |
28.73 € | 1 | Available | 5 Days | 10 | [Male thread] Threads | - | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 12 | 50 | 23000 | |
28.73 € | 1 | Available | 5 Days | 10 | [Male thread] Threads | - | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 12 | 30 | 23000 | |
30.23 € | 1 | Available | 5 Days | 10 | [Male thread] Threads | - | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 16 | 40 | 43000 | |
30.23 € | 1 | Available | 5 Days | 10 | [Male thread] Threads | - | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 16 | 50 | 43000 | |
30.23 € | 1 | Available | 5 Days | 10 | [Male thread] Threads | - | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 16 | 60 | 43000 | |
29.22 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 80 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 30 | 10000 | |
29.22 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 90 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 30 | 10000 | |
29.22 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 100 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 30 | 10000 | |
29.22 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 110 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 30 | 10000 | |
29.22 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 120 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 30 | 10000 | |
29.22 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 80 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 40 | 10000 | |
29.22 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 90 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 40 | 10000 | |
29.22 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 100 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 40 | 10000 | |
29.22 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 110 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 40 | 10000 | |
29.22 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 120 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 40 | 10000 | |
29.22 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 80 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 50 | 10000 | |
29.22 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 90 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 50 | 10000 | |
29.22 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 100 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 50 | 10000 | |
29.22 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 110 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 50 | 10000 | |
29.22 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 120 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 8 | 50 | 10000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 100 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 30 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 110 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 30 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 120 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 30 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 130 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 30 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 140 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 30 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 150 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 30 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 100 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 40 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 110 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 40 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 120 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 40 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 130 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 40 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 140 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 40 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 150 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 40 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 100 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 50 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 110 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 50 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 120 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 50 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 130 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 50 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 140 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 50 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 150 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 50 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 100 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 60 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 110 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 60 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 120 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 60 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 130 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 60 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 140 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 60 | 16000 | |
30.60 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 150 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 10 | 60 | 16000 | |
34.38 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 100 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 12 | 30 | 23000 | |
34.38 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 110 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 12 | 30 | 23000 | |
34.38 € | 1 | Available | 7 Days | 10 | [Male thread] Threads | 120 | [Steel] EN 1.1191 Equiv. | [Cationic paint / Electrodeposited Coating] Cathodic Coating (Black) | [Steel] EN 1.1191 Equiv. | - | [Phenol] Phenol Resin (Black) | 12 | 30 | 23000 |
Loading...
App. Example
■Load Direction
(1) Pull up the lever to disengage the
serrations, and the clamp is unlocked.
(2) Turn the unlocked lever to
desired position.
(3) When the lever is released,
the return spring automatically
engages serrations and locks again.
Basic information
| Application | Clamp | Type Clamp | Clamp Mechanism | Operation Direction | Horizontal |
|---|---|---|---|---|---|
| Shape | Knobbed Type | Lever Shape with Knob | Ball Knob |
