Damper Hinges (Zinc Die-Cast)
- Volume Discount
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog

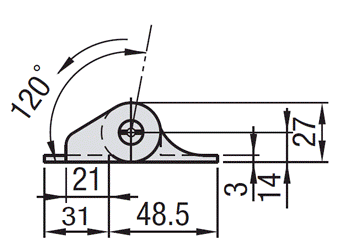

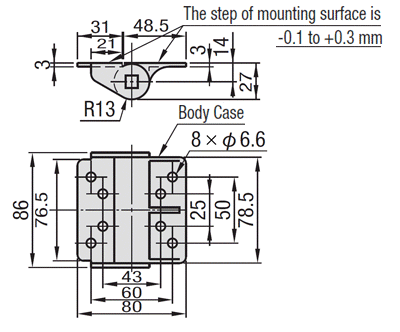

Dimensional Drawing
(Direction of Torque: Counterclockwise)
(Direction of Torque: Clockwise)
* L Type, Direction of Torque:
Torque is generated in the direction where the damper hinge becomes horizontal
* R Type, Direction of Torque:
Torque is generated in the direction where the damper hinge rises up
| [M] Material | [S]Surface Treatment | Max. Operating Angle | Operating Temp. Range (°C) | Mass (g) |
| Body Case (Zinc Die Cast) | Silver Painted | 120 | -5~50 | 410 |
| Hinge (EN 1.4301 Equiv.) | — |
Specification Table
| Part Number | — | Shaft Rotating Direction |
| MSDH3 | — | L |
| Part Number | Shaft Rotating Direction Selection | Max. Reverse Torque (N⋅m)/1 pc. | |
| Type | Max. Usable Torque (N⋅m)/1 pc. | ||
| MSDH | 3 | L (Counterclockwise) R (Clockwise) | 0.4 or Less |
| 5 | 0.6 or less | ||
| 7.5 | 0.8 or less | ||
| 10 | 1.0 or less | ||
[ ! ] Reverse torque is torque in the opposite direction.
Product Specifications
- The maximum open-close angle is approx. 120 degrees.
- The rotation of the vanes compresses the oil and generates control (brake) force to act against work force.

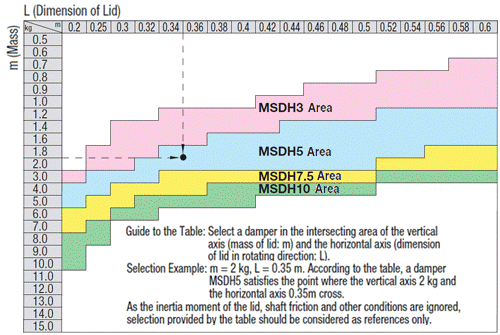

How to Select
The lid in a horizontal position generates maximum torque as shown below.
Calculate maximum torque according to the following formula before selecting a damper that satisfies the specifications.
[Formula]
Maximum torque T = L/2 × m (weight kg) × 9.8 (Newton N)
Example) When L = 0.4 m and m = 5 kg
Max. torque T = 0.4/2 × 5 × 9.8 = 9.8 N⋅m
* MSDH10 is selected.
*) The selection made by the calculation above is for reference only.
The friction resistance and the effect of inertia moment at the hinge were not taken into consideration in the example above.
The viscosity of the oil in the damper changes depending on the temperature of the operating environment.
Generally, the damping characteristic decreases with rising temperature, whereas it increases with lowering temperature.
Precautions
- Custom-made items cannot be manufactured.
- Using it vertically is not recommended.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| MSDH3-[L,R] |
| MSDH5-[L,R] |
| MSDH7.5-[L,R] |
| MSDH10-[L,R] |
| Part Number | Minimum order quantity | Volume Discount | RoHS | Max. Operating Torque (N・m) | Shaft Rotating Direction Select | |
|---|---|---|---|---|---|---|
| 1 | 6 Days | 10 | 3 | Clockwise [R] / Counterclockwise [L] | ||
| 1 | 6 Days | 10 | 5 | Clockwise [R] / Counterclockwise [L] | ||
| 1 | 6 Days | 10 | 7.5 | Clockwise [R] / Counterclockwise [L] | ||
| 1 | 6 Days | 10 | 10 | Clockwise [R] / Counterclockwise [L] |
Loading...
Selection Details of Hinges
- Material: aluminum, plastic, stainless steel, steel, zinc alloy
- Coatings: polished, light-polished, stove-enamelled, brushed, anodized, sandblasted, mirror-polished, nickel-plated, chrome-plated
- Designs: flat hinge, wing hinge, spring hinge, damper hinge, torque hinge, hinge with stopper, hinge with latch function, piano band (rod hinge), hinge inside
- Bore hole: round hole, counterbore, conical counterbore, oblong hole
-Width: 8 mm to 120 mm
- Length: 20 mm to 1000 mm
Overview of the various designs as PDF
Description/Basics
Hinge
Hinges are among the fittings and are intended for movable storage. Similar to a joint, a hinge enables a bending, pivoting or folding movement. In principle, hinges are differentiated into a detachable hinge and an inseparable hinge. The separable hinge is also called a plug-in hinge. The advantage of a hinge is that the flap or door can be unhooked without great effort. Hinges are often used for maintenance doors, cabinet doors and windows. The hinge pin or hinge bolt serves as a connecting piece and axis of rotation at the same time. In most cases, the hinges are fastened using a screw connection, but hinges can also be welded to the hinge strap (flap/wing) in a permanent manner. When welding hinges, thinner sheet metals can deform due to the heat generation. Therefore, the screw version of the hinges is recommended for thinner wall thicknesses. You can buy many different hinges in the MISUMI online shop.
Spring hinge
Spring hinges are usually rolled sheet metal hinges that are preloaded with a torsion spring. The spring hinge can support an opening or closing of a flap, depending on the application. The clamping force generated increases as the angle of the spring hinge increases. Spring hinges can also support a reset function. Thus, spring hinges can also help to reduce the number of components in some applications.
Materials
The MISUMI hinges are available in aluminum, plastic, stainless steel, steel and a zinc alloy. You can order these in the MISUMI Hinge Shop as flat sheet metal hinge and in stainless steel plate, up to extruded heavy-load hinges.
Coatings
The various treatments and surface treatments such as: polished, lightly polished, brushed, sand blasted, mirror polished, stove enamelled, anodized, nickel-plated, chrome-plated are available to you at MISUMI. With these coatings, the hinges are optimally protected against corrosion and always offer a suitable appearance with the versatile surface treatments.
Installation Information
To achieve smooth operation, it is essential to align the hinge. Therefore, an exact drilling pattern is necessary for the installation. For fine positioning, MISUMI offers elongated-hole hinges, which enable easy adjustment of the elements. After the correct position has been set, the screws can be tightened with a torque wrench. For longer hinges, the screws should be tightened from the inside to the outside so that the base of the hinge fits evenly.
Maintenance
Maintenance plays an important role in the ease of movement and long service life of a hinge. Prior to lubrication, a hinge should be cleaned of old lubricants and contaminants. After lubricating, the hinge should be moved several times so that the lubricant is evenly distributed in the eyelet and hinge bolts. Which lubricant is suitable depends on the respective application and environmental influences. For commercial applications, graphite oil is often used.
Hinge bases/hinge plates/hinge bolts
Basic information
| Type | Damper/Torque/Spring Hinge | Flat Hinge Type | Square Plate Type | Length(mm) | 86 |
|---|---|---|---|---|---|
| Main Body Material | Zinc Die Cast | Main Body Surface Treatment | Silver Painted | Width (W)(mm) | 80 |
| Additional Function | With Damper | Mounting Method | Screw Mounting | Mounting Screw Hole Type | Round Hole |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
