Key Locks
- Volume Discount
[Features] Key (knuckle lock) for locking doors.
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

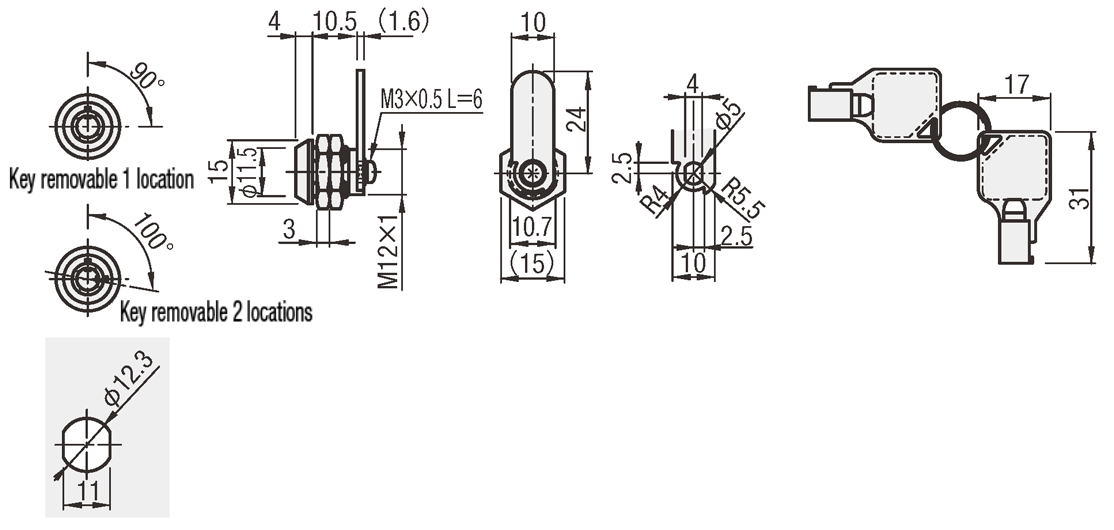

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
LOCNL |
| Mounting Hole Dimensions |
| Part Name | Material | Surface Treatment |
| Main Body | Zinc Die Cast | Chrome Plating |
| Hex Nut | EN 1.0330 Equiv. | Trivalent Chromate |
| Lock Plate | EN 1.0330 Equiv. | Tin-Cobalt Plating |
| Key (2 pcs.) | EN 1.0330 Equiv. | Tin-Cobalt Plating |
Specification Table
| Part Number |
| LOCNL1 |
| Part Number | Operation Key Removal / Insertion | |
| Type | No. | |
| LOCNL | 1 | 1 Location |
| 2 | 2 Locations | |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Loading...
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
