Heat Insulating Plates / Free-Cutting Grade / Thermal Plates

Heat Insulating Plates / Free-Cutting Grade / Thermal Plates

Click on this image to zoom in.

Click on this image to zoom in.

  • Heat Insulating Plates / Free-Cutting Grade / Thermal Plates
  • Heat Insulating Plates / Free-Cutting Grade / Thermal Plates

MISUMI

MISUMI

  • Order quantities extended (D-JIT)

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

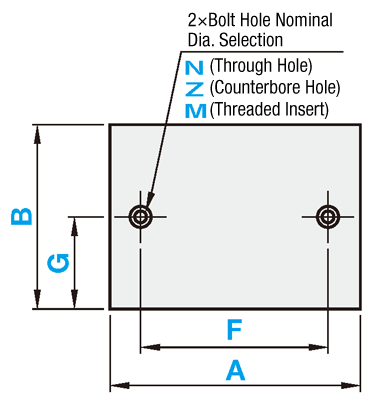

Dimensional Drawing

Standard With Holes   
 2 Holes 2H4 Holes 4H6 Holes 6H
[ ! ]A ≥ B

Hole Machining Detail
N (Through Hole)Z (Counterbore Hole)P (Countersink)M (Threaded Insert)
   
Bolt
Nominal Dia.		   3      4      5      6      8      10
d3.54.55.56.5911
d1—89.51114—
h—5679—

   
Bolt
Nominal Dia.		   3      4      5      6
d3.54.55.56.5
d17.59.511.513.5
h22.533.5

 ■ Table 1 
Bolt
Nominal Dia.		   3      4      5      6      8      10
d3.54.55.56.5911
L3456810
4.567.591215
681012——
   Ordering Code Example: M4-L6
 [ ! ]L ≤ T-1
 [ ! ] When L + 5 < T, machined holes will be blind ones.
■Rates of Camber and Torsion (HIPCA)
T DimensionRate of Camber and Torsion per 1,000 mm
5·101.3% or less
15·20·250.65% or Less
■ Accuracy Standards
·T Dimension Tolerance
  (HIPMA)(HIPCA)
T: ±0.5   T51015·2025
±0.8±1.0±1.3±1.4
· Dimensional tolerance of A and B
  (HIPMA)(HIPCA)
A·B:+1.0
 0		   A·BUp to 499 mm500 or more
+1.0
0		+2.0
   0
TypeMain Base MaterialMain MaterialGradeColorOperating Ambient Temperature
HIPMAGlass FiberCementFree-cuttingWhite grayRoom Temp. to 300°C
HIPCAGlass FeltCalcium Silicate Base BinderHeat-RetentionWhiteRoom Temp. to 350°C

Specification Table

■ Standard Type
Part Number1 mm IncrementsSelection
T
TypeAB
HIPMA20 to 80020 to 6005
10
15
HIPCA20 to 100020 to 10005
10
15
20
25
■ With Holes
Part Number1 mm IncrementsSelection
T		0.5 mm IncrementsBolt Hole Nominal Dia. Selection
TypeNumber of HolesABFGThrough HoleCounterbore HoleCountersinkThreaded Insert
NZPML
HIPMA2H
4H
6H		20 to 80020 to 60059 to 791
(2H, 4H Type)
9 to 395
(6H Type)		5 to 595
(2H Type)
9 to 591
(4H, 6H Type)		3
4
5
6
8
10		—345634    from Table 1
Selection
10——34568
15456 —3456810
HIPCA20 to 100020 to 100059 to 991
(2H, 4H Type)

9 to 495
(6H Type)		7 to 995
(2H Type)

9 to 991
(4H, 6H Type)		—3456——
10456 —
154568—
20 568—
25 568—
[NG] Threaded insert machining is not applicable to HIPCA.
[!] Dimension F Specification Range - 2H/4H type selection: d (d1) + 5 ≤ F ≤ A - d (d1) - 5; 6H type selection: d (d1) + 5 ≤ F ≤ A/2 - d (d1)/2 - 2.5 is required.
[!] Dimension G Specification Range - 2H type selection: d (d1)/2 + 2.5 ≤ G ≤ B - d (d1)/2 - 2.5; 4H/6H type selection: d (d1) + 5 ≤ G ≤ B - d (d1) - 5 is required.
(d for through holes and threaded insert; d1 for counterbore hole and countersink)
[ ! ] For Hole Type, select N (through hole), Z (counterbore hole), P (Countersink), or M (Threaded insert) + L (insert length).
[ ! ] When machined hole of Threaded Insert Type goes through, the hole periphery may peel.
■ Standard Type
Part Number—A—B—T
HIPMA—300—222—10
■ With Holes
Part Number—A—B—T—F—G—Bolt Nominal Dia.—L
HIPCA2H
HIPMA2H		—
—		200
200		—
—		170
150		—
—		10
5		—
—		F100
F100		—
—		G70
G75		—
—		N8
M4
—
L4

Alterations


 		 Part Number—A—B—  T  —F—G—Bolt Nominal Dia.—(XC·YC)
 HIPCA2H—100—100—5—F40—G50—N6—    XC30

AlterationsHole Position from LeftHole Position from Bottom
CodeXCYC
SpecXC = 1 mm Increments
[ ! ]5 ≤ XC ≤ 786
[!] (2H, 4H Type)
     d (d1)/2 + 2.5 ≤ XC ≤ A - F - d (d1)/2 - 2.5
[!] (6H Type)
      d (d1)/2 + 2.5 ≤ XC ≤ A - 2F - d (d1)/2 - 2.5		YC = 1 mm Increments
[ ! ]5 ≤ YC ≤ 586
[ ! ] d (d1)/2 + 2.5 ≤ YC ≤ B - G - d (d1)/2 - 2.5
[NG] Not applicable for 2H Type



Related information for heat insulating plate

Notes on Usage of Insulating Plate and Thermal Plate

(1) Be sure to use a washer with a bolt. Please note that over-tightening may result in cracking.
Please pay special attention to the Thermal Plate (HIPCA) because it is soft. (Fig. A)

(2) Do not use in places where there may be splashes of water, chemicals, etc. Heat Insulating Plate that contain moisture can crack and cause significant performance loss due to temperature rise. Free Cutting Grade (HIPMA), in particular, easily absorb moisture, so please dry them thoroughly before use.

(3) Avoid using the laminated products with force applied in the direction of the layers (in the direction of cleavage).

(4) When using the High Temperature Insulating Grade (HIPHA) and Thermal Plate (HIPCA) at 300°C or higher, initial smoke and a slight odor (only a slight odor for heat-insulating plate (IPCA)) may occur, but they are not particularly harmful, so please take the same measures as for normal smoke emissions, such as ventilation and keeping your face away from the product.

(5) The thermal plate has a cavity inside the product to create a high heat-insulating effect. They may have lines on the surface, but the lines do not affect the property and heat insulating effect.

Notes on Machining of Insulating Plate and Thermal Plate

(1) When machining, vacuum dust into a dust collector so that it may not scatter. (Fig. B- (1))
Be sure to firmly fix a Insulating Plate on the bench because it is soft.
The dust does not contain the designated chemicals such as asbestos, but safety measures for usual works in dust, such as masks and goggles, are required. It may affect the skin such as itching, because it contains glass fiber.
Wear gloves when handling the plates.
In addition, when dusts adhere to the sliding parts of machine tools, there may be degradation in accuracy due to abrasion.

(2) Drilling of the insulating plate may cause cracks. Attention should be taken to hole pitches, hole diameters, machining conditions, etc. (Fig. B- (2))

(3) They are laminated products, and not suitable for tapping and three-dimensional machining. Especially, drilling or cutting in the direction of material lamination should be avoided as it may cause cracking. (Fig. C)

Machining Conditions

 Circular CutMillingDrilling
ToolCarbide
（K−10）		Carbide
（K−10）		Carbide
（K−10）
Cutting Speed V
(m/min)		Large to Small Blades
45 to 200		Large to Small Blades
100 to 300		Large to Small Blades
120 to 350
Rotational Speed
(rpm)		Large to Small Blades
50 to 1000		Large to Small Blades
300 to 1000		φ2 Through 1000 to 1500
φ5 Through 500 to 1000
Cutting Depth
(mm)		0.3 to 0.50.5 to 2.0−
Feed
(mm/rotation)		0.1 to 0.20.1 to 0.20.1 to 0.5
[ ! ] The above values are references only.
[ ! ] Please prepare plates, etc. as pads in advance as it is very easy to break when pulling out.
(Fig. A)
(Fig. B)
(Fig. C)

[ ! ] Please avoid machining in the direction shown in the above figure as much as possible.

Information on material properties of heat insulating plate

ItemUnitFree-cuttingHeat-Retention
HIPMAHIPCA
ComponentMain Base MaterialーGlass Fiber
(Small Amount)		Glass Felt
Main MaterialーCementCalcium Silicate Base Binder
Electrical CharacteristicsDielectric Breakdown in CrosswisekV/mm2.9ー
Volume Resistivity4h/150℃Ω-cm1.0×1010
(Note 4)		2.4×1010
100h/25℃/90%RHΩ-cm1.0×109ー
Surface ResistanceΩ1.0×1011
(Note 5)		8.0×1013
Insulation ResistanceOrdinary ConditionΩー3.0×1013
After BoilingΩーー
Mechanical PropertyBending StrengthMpa19.6 to 29.5
(Note 5)		8.8
Compression StrengthVerticalMpa1081.2(Note 3)
Horizontal to LaminationMpaー1.8(Note 3)
Izod Impact Strengthーー0.12
Cleavage StrengthkNーー
Thermal CharacteristicsRecommended Operating Temperature (*1)℃Room Temp. to 300Room Temp. to 350
Reference - Destruction Temperature (*2)℃ー450
Expansion Coefficient℃−1ー9.2×10−5
Thermal ConductivityW/m・K0.440.07
cal/cm・sec・℃1.05×10−30.17×10−3
Specific HeatJ/g・K0.940.93
OthersArc Resistancesec240 to 370250
Water Absorption Ratio%156.3
Specific Gravityー1.750.5
ColorーWhite gray
White
[ ! ] Testing method conforms to JIS K6911.
[ ! ] The values are representative values and not a guarantee.
[ ! ] Thermal conductivity measured by steady-state method
(Note 1) "Recommended Operating Temperature" is the temperature under which even a long-term use does not reduce the quality rapidly. Refer to
     the "Heat Insulating Plates Characteristics Graph" below
(Note 2) "Destructive Temperature" is a temperature where carbonization, collapse, and meltdown will begin.
(Note 3) "Compression Strength" of Thermal Plate (HIPCA) is the value for 5% deformation.
(Note 4) Condition for "Volume Resistivity" of Free-cutting Grade (HIPMA) is 24h/150°C.
(Note 5) Values of "Surface Resistance" and "Bending Strength" of Free-cutting Grade (HIPMA) are those after drying.
