Threaded Stopper Blocks / T-Shaped / Fine Thread
[Features] Suitable for installation when there is no space at the front and back.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

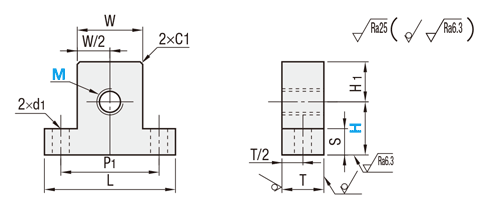

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
[ ! ]Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m. However, T dimensions and chamfer tolerances are excluded.
| Type | [M] Material | [S] Surface treatment | |
| Coarse | Fine | ||
| AJTN | AJTS | EN 1.0038 Equiv. | Black Oxide |
| AJTNM | AJTSM | Electroless Nickel Plating | |
| AJTNS | AJTSS | EN 1.4301 Equiv. | — |
Specification Table
| Part Number | — | H |
| AJTN8 AJFN5 | — — | 25 20 |
| Part Number | H Selection | H1 | T | M × Pitch | L | W | P1 | d1 | S | ||||||
| Type | M | Coarse | Fine | ||||||||||||
| (Coarse) AJTN AJTNM AJTNS (Fine) AJTS AJTSM AJTSS | 3 | 15 | 20 | 10 | 10 | 3 × 0.5 | 3 × 0.35 | 32 | 16 | 24 | 4.5 | 5 | |||
| 4 | 15 | 20 | 4 × 0.7 | 4 × 0.5 | |||||||||||
| 5 | 15 | 20 | 5 × 0.8 | 5 × 0.5 | |||||||||||
| 6 | 20 | 25 | 30 | 6 × 1.0 | 6 × 0.75 | ||||||||||
| 8 | 20 | 25 | 30 | 15 | 16 | 8 × 1.25 | 8 × 0.75 | 50 | 25 | 38 | 6.5 | 10 | |||
| 10 | 20 | 25 | 30 | 10 × 1.5 | 10 × 1.0 | ||||||||||
| 12 | 20 | 25 | 30 | 12 × 1.75 | 12 × 1.0 | ||||||||||
| 16 | 25 | 30 | 40 | 20 | 22 | 16 × 2.0 | 16 × 1.5 | 75 | 40 | 57 | 9 | 15 | |||
| 20 | 25 | 30 | 40 | 20 × 2.5 | 20 × 1.5 | ||||||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
| Part Number | Minimum order quantity | Volume Discount | RoHS | Material | Surface Treatment | Thread Dia. M | Thread Pitch (mm) | Height H (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 3 | 0.5 (Coarse) | 15 ～ 20 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 4 | 0.7 (Coarse) | 15 ～ 20 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 5 | 0.8 (Coarse) | 15 ～ 20 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 6 | 1.0 (Coarse) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 8 | 1.25 (Coarse) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 10 | 1.5 (Coarse) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 12 | 1.75 (Coarse) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 16 | 2.0 (Coarse) | 25 ～ 40 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 20 | 2.5 (Coarse) | 25 ～ 40 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 3 | 0.5 (Coarse) | 15 ～ 20 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 4 | 0.7 (Coarse) | 15 ～ 20 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 5 | 0.8 (Coarse) | 15 ～ 20 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 6 | 1.0 (Coarse) | 20 ～ 30 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 8 | 1.25 (Coarse) | 20 ～ 30 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 10 | 1.5 (Coarse) | 20 ～ 30 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 12 | 1.75 (Coarse) | 20 ～ 30 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 16 | 2.0 (Coarse) | 25 ～ 40 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 20 | 2.5 (Coarse) | 25 ～ 40 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 3 | 0.5 (Coarse) | 15 ～ 20 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 4 | 0.7 (Coarse) | 15 ～ 20 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 5 | 0.8 (Coarse) | 15 ～ 20 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 6 | 1.0 (Coarse) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 8 | 1.25 (Coarse) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 10 | 1.5 (Coarse) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 12 | 1.75 (Coarse) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 16 | 2.0 (Coarse) | 25 ～ 40 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 20 | 2.5 (Coarse) | 25 ～ 40 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 3 | 0.35 (Fine) | 15 ～ 20 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 4 | 0.5 (Fine) | 15 ～ 20 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 5 | 0.5 (Fine) | 15 ～ 20 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 6 | 0.75 (Fine) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 8 | 0.75 (Fine) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 10 | 1.0 (Fine) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 12 | 1.0 (Fine) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 16 | 1.5 (Fine) | 25 ～ 40 | ||
| 1 | 5 Days | 10 | EN 1.0038 Equiv. | Black Oxide | 20 | 1.5 (Fine) | 25 ～ 40 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 3 | 0.35 (Fine) | 15 ～ 20 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 4 | 0.5 (Fine) | 15 ～ 20 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 5 | 0.5 (Fine) | 15 ～ 20 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 6 | 0.75 (Fine) | 20 ～ 30 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 8 | 0.75 (Fine) | 20 ～ 30 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 10 | 1.0 (Fine) | 20 ～ 30 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 12 | 1.0 (Fine) | 20 ～ 30 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 16 | 1.5 (Fine) | 25 ～ 40 | ||
| 1 | 7 Days | 10 | EN 1.0038 Equiv. | Electroless Nickel Plating | 20 | 1.5 (Fine) | 25 ～ 40 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 3 | 0.35 (Fine) | 15 ～ 20 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 4 | 0.5 (Fine) | 15 ～ 20 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 5 | 0.5 (Fine) | 15 ～ 20 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 6 | 0.75 (Fine) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 8 | 0.75 (Fine) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 10 | 1.0 (Fine) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 12 | 1.0 (Fine) | 20 ～ 30 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 16 | 1.5 (Fine) | 25 ～ 40 | ||
| 1 | 5 Days | 10 | EN 1.4301 Equiv. | - | 20 | 1.5 (Fine) | 25 ～ 40 |
Loading...
Configure
Basic Attributes
-
Material
- EN 1.0038 Equiv.
- EN 1.4301 Equiv.
-
Surface Treatment
- Black Oxide
- Electroless Nickel Plating
-
Thread Dia. M
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 16
- 20
-
Thread Pitch(mm)
-
Height H(mm)
-
Type
- AJTN
- AJTNM
- AJTNS
- AJTS
- AJTSM
- AJTSS
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
