[Simplified Adjustment]XY-Axis / Feed Screw / Handle Selectable
![[Simplified Adjustment]XY-Axis / Feed Screw / Handle Selectable](http://uk.misumi-ec.com/linked/material/mech/MSM1/PHOTO/10302036670.jpg?$product_main$)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
- Technical Information
No. 40No. 60
![[Simple Adjustment]X-Axis Feed Screw - Standard: Related Image](http://uk.misumi-ec.com/linked/item/10302036670/img/drw_01_001.gif)
[ ! ] Do not force the knob to turn past the end of the travel limits as it may cause the knob to come loose.

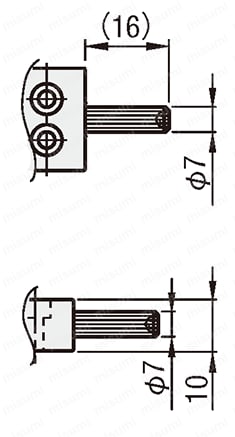

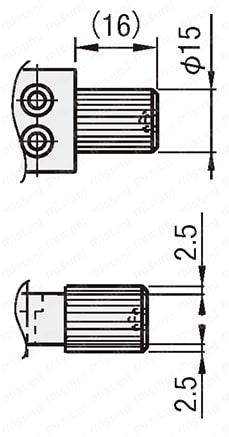

| [!] When the large knob is selected, the handle diameter will exceed the end plate height as shown on the left. Please be aware of potential interferences. [ ! ] Travel per Rotation 0.7 mm |

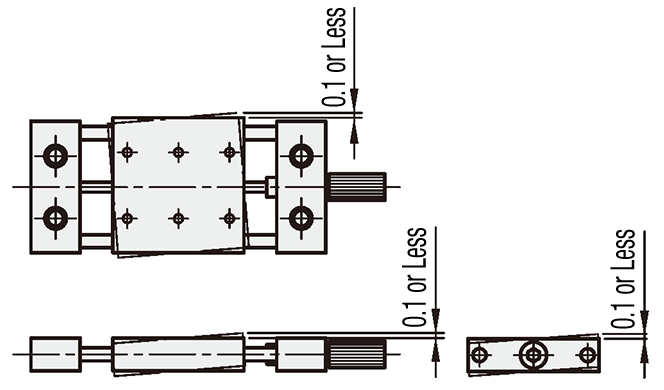

 | [ ! ] Not recommended for precise positioning due to its clearance shown on the left. Values are for single-axis configuration. |

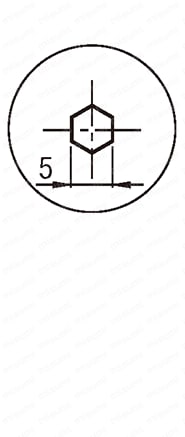

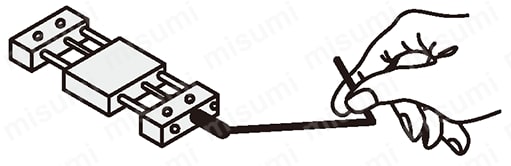

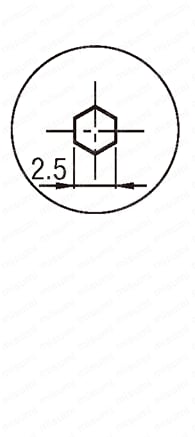

Long stroke moves can be made easily with use of a ball-point hex wrench.
| Type | Main Body | Shaft | Knob | Feed Screw | Accessory | ||
| Standard Knob | Large Knob | Material | Surface Treatment | Material | Material | Material | |
| XYKNEJ | XYKJL | Aluminum Alloy | Black Anodize | EN 1.4301 Equiv. | EN 1.4305 Equiv. | EN 1.4301 Equiv. | No. 20: CBSST3-12 × 4 pcs. No. 25: SCB3-10 × 4 pcs. No. 40, 60: SCB4-10 × 4 pcs. |
Specification Table
| Part Number |
| XYKNEJ40 XYKJL60L |
| Part Number | Stage Surface (mm) | Travel Distance (mm) | Load Capacity (N) | Weight (kg) | ||
| Type | No. | Large Knob | ||||
| (Standard Knob) XYKNEJ (Large Knob Selection) XYKJL | 20 | (Large Knob: Top & Bottom) L (Large Knob: Top only) A (Large Knob: Bottom only) B | 20 × 20 | ±7 | 18.6 | 0.10 |
| 25 | 25 × 25 | 0.13 | ||||
| 40 | 40 × 40 | ±9 | 36.2 | 0.27 | ||
| 60 | 60 × 60 | ±13 | 36.2 | 0.48 | ||
Alterations
 |  |
|
| Alteration | Mounting of Plate with Scale Sticker | Change of Clamp (Knurled Knob) | ||||||||||||||||||||||||||||||||||||||||

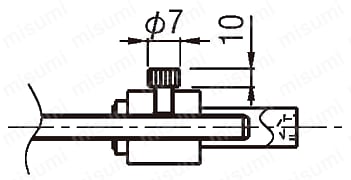

| Spec. | Mounts a scaled plate on the stage. "!" Resolution: 0.5 mm Included screws are changed as shown on the below right. | Changes Clamp Screw to Knurled Knob. Changes are for both X and Y axes .  | ||||||||||||||||||||||||||||||||||||||||
 | Large Knob  | |||||||||||||||||||||||||||||||||||||||||
| [ ! ] MMR alteration will change the mounting hole pitch since a plate is attached to the table . |
|
| ||||||||||||||||||||||||||||||||||||||||
| Code | MMR | CLC | ||||||||||||||||||||||||||||||||||||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Load Capacity (Range) (N) | Table Size (Length) L (mm) | Table Size (Width) W (mm) | Stroke (X Distance) (mm) | Stroke (Y Distance) (mm) | Clamp Screw for Table Fixing | Handle Shape | Mounting Scaled Plate on Stage | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
122.54 € | 1 | 6 Days | 10 | 5 to 30 | 20 | 20 | ±7 | ±7 | No Change of Clamp (Set Screw) | A (Large Handle Top only) | Standard (No Plate with Scale) | ||
122.54 € | 1 | 6 Days | 10 | 5 to 30 | 20 | 20 | ±7 | ±7 | No Change of Clamp (Set Screw) | B (Large Handle Bottom only) | Standard (No Plate with Scale) | ||
126.32 € | 1 | 6 Days | 10 | 5 to 30 | 20 | 20 | ±7 | ±7 | No Change of Clamp (Set Screw) | L (Large Handle Top & Bottom) | Standard (No Plate with Scale) | ||
144.70 € | 1 | 6 Days | 10 | 5 to 30 | 25 | 25 | ±7 | ±7 | No Change of Clamp (Set Screw) | A (Large Handle Top only) | Standard (No Plate with Scale) | ||
144.70 € | 1 | 6 Days | 10 | 5 to 30 | 25 | 25 | ±7 | ±7 | No Change of Clamp (Set Screw) | B (Large Handle Bottom only) | Standard (No Plate with Scale) | ||
148.48 € | 1 | 6 Days | 10 | 5 to 30 | 25 | 25 | ±7 | ±7 | No Change of Clamp (Set Screw) | L (Large Handle Top & Bottom) | Standard (No Plate with Scale) | ||
163.21 € | 1 | 6 Days | 10 | 30.1 to 50 | 40 | 40 | ±9 | ±9 | No Change of Clamp (Set Screw) | A (Large Handle Top only) | Standard (No Plate with Scale) | ||
163.21 € | 1 | 6 Days | 10 | 30.1 to 50 | 40 | 40 | ±9 | ±9 | No Change of Clamp (Set Screw) | B (Large Handle Bottom only) | Standard (No Plate with Scale) | ||
166.99 € | 1 | 6 Days | 10 | 30.1 to 50 | 40 | 40 | ±9 | ±9 | No Change of Clamp (Set Screw) | L (Large Handle Top & Bottom) | Standard (No Plate with Scale) | ||
188.40 € | 1 | 6 Days | 10 | 30.1 to 50 | 60 | 60 | ±13 | ±13 | No Change of Clamp (Set Screw) | A (Large Handle Top only) | Standard (No Plate with Scale) | ||
188.40 € | 1 | 6 Days | 10 | 30.1 to 50 | 60 | 60 | ±13 | ±13 | No Change of Clamp (Set Screw) | B (Large Handle Bottom only) | Standard (No Plate with Scale) | ||
192.18 € | 1 | 6 Days | 10 | 30.1 to 50 | 60 | 60 | ±13 | ±13 | No Change of Clamp (Set Screw) | L (Large Handle Top & Bottom) | Standard (No Plate with Scale) | ||
118.76 € | 1 | 5 Days | 10 | 5 to 30 | 20 | 20 | ±7 | ±7 | No Change of Clamp (Set Screw) | Standard Handle | Standard (No Plate with Scale) | ||
110.83 € | 1 | Available | 7 Days | 10 | 5 to 30 | 20 | 20 | ±7 | ±7 | Change Clamp (Knurled Knob) | Standard Handle | Standard (No Plate with Scale) | |
122.16 € | 1 | Available | 7 Days | 10 | 5 to 30 | 20 | 20 | ±7 | ±7 | No Change of Clamp (Set Screw) | Standard Handle | MMR (Scaled Plate Provided) | |
125.94 € | 1 | Available | 7 Days | 10 | 5 to 30 | 20 | 20 | ±7 | ±7 | Change Clamp (Knurled Knob) | Standard Handle | MMR (Scaled Plate Provided) | |
140.93 € | 1 | 5 Days | 10 | 5 to 30 | 25 | 25 | ±7 | ±7 | No Change of Clamp (Set Screw) | Standard Handle | Standard (No Plate with Scale) | ||
129.72 € | 1 | Available | 7 Days | 10 | 5 to 30 | 25 | 25 | ±7 | ±7 | Change Clamp (Knurled Knob) | Standard Handle | Standard (No Plate with Scale) | |
141.05 € | 1 | Available | 7 Days | 10 | 5 to 30 | 25 | 25 | ±7 | ±7 | No Change of Clamp (Set Screw) | Standard Handle | MMR (Scaled Plate Provided) | |
144.84 € | 1 | Available | 7 Days | 10 | 5 to 30 | 25 | 25 | ±7 | ±7 | Change Clamp (Knurled Knob) | Standard Handle | MMR (Scaled Plate Provided) | |
159.44 € | 1 | 5 Days | 10 | 30.1 to 50 | 40 | 40 | ±9 | ±9 | No Change of Clamp (Set Screw) | Standard Handle | Standard (No Plate with Scale) | ||
149.88 € | 1 | Available | 7 Days | 10 | 30.1 to 50 | 40 | 40 | ±9 | ±9 | Change Clamp (Knurled Knob) | Standard Handle | Standard (No Plate with Scale) | |
163.72 € | 1 | Available | 7 Days | 10 | 30.1 to 50 | 40 | 40 | ±9 | ±9 | No Change of Clamp (Set Screw) | Standard Handle | MMR (Scaled Plate Provided) | |
167.51 € | 1 | Available | 7 Days | 10 | 30.1 to 50 | 40 | 40 | ±9 | ±9 | Change Clamp (Knurled Knob) | Standard Handle | MMR (Scaled Plate Provided) | |
184.64 € | 1 |
Same day
Stock | 10 | 30.1 to 50 | 60 | 60 | ±13 | ±13 | No Change of Clamp (Set Screw) | Standard Handle | Standard (No Plate with Scale) | ||
172.54 € | 1 | Available | 7 Days | 10 | 30.1 to 50 | 60 | 60 | ±13 | ±13 | Change Clamp (Knurled Knob) | Standard Handle | Standard (No Plate with Scale) | |
186.38 € | 1 | Available | 7 Days | 10 | 30.1 to 50 | 60 | 60 | ±13 | ±13 | No Change of Clamp (Set Screw) | Standard Handle | MMR (Scaled Plate Provided) | |
190.17 € | 1 | Available | 7 Days | 10 | 30.1 to 50 | 60 | 60 | ±13 | ±13 | Change Clamp (Knurled Knob) | Standard Handle | MMR (Scaled Plate Provided) |
Loading...
Basic information
| Feeding Method | Feed Screw | Table Material | Aluminum Alloy | Table Surface Treatment | Black Anodized Aluminum |
|---|---|---|---|---|---|
| Guiding Mechanism | Shaft Slide | Table Size (Thickness) H(mm) | 27 | Feeding Method (Feed Screw Type) | Handle Operation |
| Feeding Method (Feeding Pitch)(mm) | 0.7 | Ball Screw Dia.(Ø) | 1 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Load Capacity (Range)(N)
- 5 to 30
- 30.1 to 50
-
Table Size (Length) L(mm)
-
Table Size (Width) W(mm)
-
Stroke (X Distance)(mm)
- ±7
- ±9
- ±13
-
Stroke (Y Distance)(mm)
- ±7
- ±9
- ±13
-
Clamp Screw for Table Fixing
- Change Clamp (Knurled Knob)
- No Change of Clamp (Set Screw)
-
Handle Shape
- A (Large Handle Top only)
- B (Large Handle Bottom only)
- L (Large Handle Top & Bottom)
- Standard Handle
-
Mounting Scaled Plate on Stage
- MMR (Scaled Plate Provided)
- Standard (No Plate with Scale)
-
Type
- XYKJL
- XYKNEJ
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 6 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
