Aluminum Extrusions - 6 Series
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Technical Information

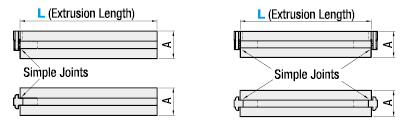

JFSU6－3030 L
(Left End Face Simple Joint Pre-Inserted Type)
JFSU6－3030W
(Double End Face Simple Joints Pre-Inserted Type)
[ ! ] Joint components will be shipped loosely tightened.
| Part Name | [M] Material | [S] Surface Treatment | |
| Aluminum Extrusion | EN AW−6061−T5 Equiv. | Anodize | |
| Simple Joints | Main Body | EN 1.1191 Equiv. | Trivalent Chromate |
| Dedicated Screws | EN 1.7220 Equiv. | ||
| Set Screw | Black Oxide Film | ||
Specification Table
| Part Number | — | L |
| JFSU6−3030 L | — | 1200 |
| Part Number | Joint Component | L 0.5 mm Increments | Extrusion | Built-in Joint Component | A | ||
| Center Joint | Quantity | ||||||
| JFSU | 6−3030 | L (Left End Face only) | 100 to 4000 | HFS6−3030 | HUJ6 | 1 | 30 |
| W (Double End Faces) | 2 | ||||||
Alterations
[ ! ] Alterations only on this page are available.
| Alterations | Code | Spec. | ||
| Extrusion | Tap | Depth | ||
| Right End Face Tapping [ ! ] JFS□□－□□□□L | RTP Right End Face  | 6−3030 | M8 | 24 |
| Alterations | Code | Spec. | ||
| Extrusion | H | Hole Dia. | ||
| Right End Face Wrench Hole [ ! ] JFSC□－□□□□L | RCH RCV  | 6−3030 | 15 | 8 |
App. Example
Easy connection with built-in simple joints.
This product can be connected to the mating extrusion with no need for alterations.
Reference
Aluminum extrusion is HFS6-3030.
When using other 6 Series Extrusions, please purchase the extrusion and simple joint separately.
Product Comparison Information
■6 Series
Blind Joint Connection is recommended where standard brackets and peripherals interfere. See the table below and check the details on each product page.
| Product Name | Simple Joints | Single Joints | Tapping Joints | Screw Joints | Center Joints | Post-Assembly Insertion Double Joints | Pre-Assembly Double Joints | Parallel Joints |
|---|---|---|---|---|---|---|---|---|
| Product Photo |
|
|
|
|
|
|
|
|
| Installation Diagram |
|
|
|
|
|
|
|
|
| Material | EN 1.1191 Equiv./EN 1.7220 Equiv. | Steel or EN 1.4301 Equiv. | JIS−SWCH18A | Steel or EN 1.4301 Equiv. | EN 1.4308 Equiv. | EN 1.4308 Equiv./EN 1.4301 Equiv. | EN 1.4401 Equiv. / EN 1.4301 Equiv. | EN 1.4308 Equiv./EN 1.4301 Equiv. |
| Features | End tapping alterations only. Requires one screw for tightening. | D holes added on the extrusions do not penetrate to the flat surface. Blind Joints with very good appearance. | Tapping alteration is not required. Most economical Blind Joints. | Joint Plate enables secure and economical connection. | Most standard Blind Joints usable with various types of aluminum extrusions. | Connects securely at two locations. Tightest connection can be achieved of all Blind Joints. | Can be used for various applications such as those of extending extrusions and mounting to plates. | Extrusions can be connected in parallel. |
| Alterations required | Tapping | Wrench Hole / D Hole | Wrench Hole | Tapping / Wrench Hole | M Hole | M Hole | S Hole | L Hole |
| Joints Pre-Inserted Aluminum Extrusions | Viewing | Aluminum Extrusions with Built-in Single Joints | - | Aluminum Extrusions with Built-in Screw Joints | Aluminum Extrusions with Built-in Center Joints | - | Aluminum Extrusions with Built-in Pre-Assembly Insertion Double Joints | - |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| JFSU6-3030L-[100-4000/0.5] |
| JFSU6-3030W-[100-4000/0.5] |
| Part Number | Minimum order quantity | Volume Discount | RoHS | Joint Components Built-in | L (mm) | |
|---|---|---|---|---|---|---|
| 1 | 6 Days | 10 | L (Left End Face only) | 100 ～ 4000 | ||
| 1 | 6 Days | 10 | W (Double End Faces) | 100 ～ 4000 |
Loading...
App. Example
Basic information
| Series Name | Brackets for 6 Series (Extrusion Slot Width 8mm) | Material | EN AC-51400-T5 Equiv. | Extrusion Series | HFS |
|---|---|---|---|---|---|
| Extrusion No. | 6-3030 | Type | Simple Joint Type |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
