Magnets with Holders Threaded
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
- Technical Information
| Part Number | Heat Resistant Temperature | |||||
| Type | Material | Surface Treatment | Material | Surface Treatment | ||
| HXB | Slotted Type | EN 1.0718 Equiv. | Electroless Nickel Plating | Neodymium Magnet | Nickel Plating | 80°C |
| Hex Socket Head Type | EN 1.0736 Equiv. | |||||

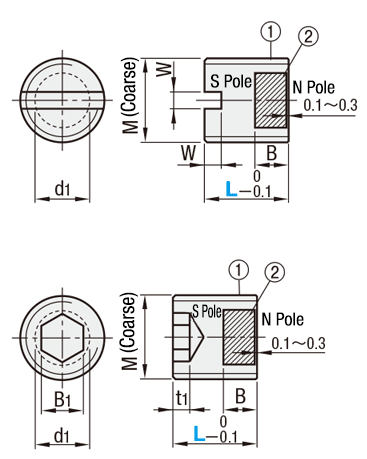

Specification Table
| Part Number | — | L |
| HXB10 HXG10 | — | 8 |
| Part Number | d1 | B | M × P (Coarse) | Attraction Force N(kgf) | Surface Magnetic Flux Density Gauss [G] | Slotted | Hex Socket | |||
| Type | L | W | B1 | t1 | ||||||
| HXB | 6 | 8 | 4 | 5 | M6 × 1.0 | 3.9 {0.4} | 1700 to 2200 | 1.5 | — | |
| 15 | — | 3.0 | 3.0 | |||||||
| 8 | 8 | 5 | M8 × 1.25 | 7.8 {0.8} | 2900 to 3400 | 1.5 | — | |||
| 15 | — | 4.0 | 3.0 | |||||||
| 10 | 8 | 6 | M10 × 1.5 | 16.7 {1.7} | 2700 to 3200 | 2.0 | — | |||
| 15 | — | 5.0 | 3.0 | |||||||
| 12 | 12 | 7 | 8 | M12 × 1.75 | 32.3 {3.3} | 2500 to 3000 | 2.5 | — | ||
| 20 | — | 6.0 | 3.0 | |||||||
| 16 | 14 | 10 | M16 × 2 | 60.8 {6.2} | 2700 to 3200 | — | 8.0 | 3.0 | ||
| 20 | ||||||||||
| 20 | 16 | 13 | M20 × 2.5 | 123.5 {12.6} | 2900 to 3400 | — | 10.0 | 4.0 | ||
| 25 | ||||||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| HXB6-8 |
| HXB6-15 |
| HXB8-8 |
| HXB8-15 |
| HXB10-8 |
| HXB10-15 |
| HXB12-12 |
| HXB12-20 |
| HXB16-14 |
| HXB16-20 |
| HXB20-16 |
| HXB20-25 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Thread Nominal M (mm) | Screw Length L (mm) | |
|---|---|---|---|---|---|---|---|
18.26 € | 1 | Available |
Same day
Stock | 10 | 6 | 8 | |
20.16 € | 1 | Available |
Same day
Stock | 10 | 6 | 15 | |
18.26 € | 1 | Available |
Same day
Stock | 10 | 8 | 8 | |
20.16 € | 1 | Available |
Same day
Stock | 10 | 8 | 15 | |
17.62 € | 1 | Available | 6 Days | 10 | 10 | 8 | |
18.90 € | 1 | Available |
Same day
Stock | 10 | 10 | 15 | |
18.90 € | 1 | Available |
Same day
Stock | 10 | 12 | 12 | |
20.16 € | 1 | Available |
Same day
Stock | 10 | 12 | 20 | |
21.40 € | 1 | Available | 6 Days | 10 | 16 | 14 | |
21.40 € | 1 | Available |
Same day
Stock | 10 | 16 | 20 | |
22.67 € | 1 | Available | 6 Days | 10 | 20 | 16 | |
22.67 € | 1 | Available | 6 Days | 10 | 20 | 25 |
Loading...
App. Example
Best suited for use in limited spaces.(Fixing with adhesives recommended)
Basic information
| Magnet Type (Material) | Neodymium Magnet | Holder Material | EN 1.0718 Equiv. | Holder Surface Treatment | Electroless Nickel Plating |
|---|---|---|---|---|---|
| Magnet Surface Treatment | Nickel Plating | Magnetic Pole (Front) | N |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
