[Precision]Combination Stages
![[Precision]Combination Stages](http://content.misumi-ec.com/image/upload/f_auto,t_product_main/v1/p/jp/product/series/110302199950/110302199950_20200707150931.jpg)
![[Precision]Combination Stages](http://content.misumi-ec.com/image/upload/f_auto,t_product_thum/v1/p/jp/product/series/110302199950/110302199950_20200707150931.jpg)
![[Precision]Combination Stages](http://content.misumi-ec.com/image/upload/f_auto,t_product_thum/v1/p/jp/product/series/110302199950/110302199950_20200707150932.jpg)
![[Precision]Combination Stages](http://content.misumi-ec.com/image/upload/f_auto,t_product_thum/v1/p/jp/product/series/110302199950/110302199950_003.jpg)
![[Precision]Combination Stages](http://content.misumi-ec.com/image/upload/f_auto,t_product_thum/v1/p/jp/product/series/110302199950/110302199950_004.jpg)
![[Precision]Combination Stages](http://content.misumi-ec.com/image/upload/f_auto,t_product_thum/v1/p/jp/product/series/110302199950/110302199950_20200707150933.jpg)
![[Precision]Combination Stages](http://content.misumi-ec.com/image/upload/f_auto,t_product_thum/v1/p/jp/product/series/110302199950/110302199950_20200707150934.jpg)
![[Precision]Combination Stages](http://content.misumi-ec.com/image/upload/f_auto,t_product_thum/v1/p/jp/product/series/110302199950/110302199950_20200707150935.jpg)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
XYZLRSPG85
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
- Technical Information
■XY+Z
XYZPG
■XY + Horizontal Surface Z-Axis
XYZLPG
■Low Profile XY-Axis + Horizontal Surface Z-Axis
XYZLSPG
![[High Precision]XYZ-Axis Cross Roller - Micrometer Head: Related Image](http://uk.misumi-ec.com/linked/item/10302199950/img/drw_01-1.gif)
■ (1)XYRPG
(XY-Axis + Rotary)
■ (2)XYZLRPG
(XY-Axis + Horizontal Surf. Z-Axis + Rotary)
![[High Precision]XYZ-Axis Cross Roller - Micrometer Head: Related Image](http://uk.misumi-ec.com/linked/item/10302199950/img/drw_20.gif)

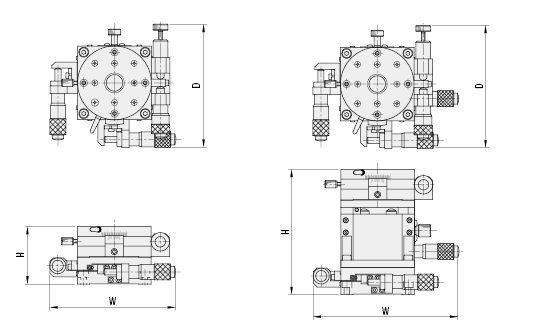

■ (3)XYRSPG
(Low Profile XY-Axis + Rotary)
■ (4)XYZLRSPG
(Low Profile XY-Axis + Horizontal Surf. Z-Axis + Rotary)
![[High Precision]XYZ-Axis Cross Roller - Micrometer Head: Related Image](http://uk.misumi-ec.com/linked/item/10302199950/img/drw_21.gif)
[ ! ] The shapes are different depending on the size. See details on CAD data.
Specification Table
| Part Number |
| XYRPG38 |
| Part Number | Stage Configuration | Stage Surface (mm) | External Dimension (mm) | Travel Distance (mm) | Load Capacity (N) | Weight (kg) | ||||||
| Type | No. | Bottom | Top | W | D | H | X | Y | Z | |||
| XYZPG | 40 | XYPG40 | ZPG40 | 40 × 40 | 84.5 | 77.5 | 173.5 | ±6.5 | ±6.5 | ±6.5 | 9.8 | 0.48 |
| 60 | XYPG60 | ZPG60 | 60 × 60 | 98.5 | 91.5 | 178.5 | 19.6 | 0.95 | ||||
| 80 | XYPG80 | ZPG80 | 80 × 80 | 149.5 | 135 | 236 | ±12.5 | ±12.5 | ±12.5 | 49.0 | 1.80 | |
| XYZLPG | 40 | XYPG40 | ZLPG40 | 40 × 40 | 96 | 77 | 80 | ±6.5 | ±6.5 | ±3.0 | 9.8 | 0.48 |
| 60 | XYPG60 | ZLPG60 | 60 × 60 | 116.5 | 91.5 | 95 | ±5.0 | 39.2 | 1.12 | |||
| 80 | XYPG80 | ZLPG80 | 80 × 80 | 150 | 135 | 95 | ±12.5 | ±12.5 | 29.4 | 2.00 | ||
| XYZLSPG | 40 | XYSPG40 | ZLPG40 | 40 × 40 | 98.5 | 80.5 | 62 | ±6.5 | ±6.5 | ±3.0 | 7.8 | 0.40 |
| 60 | XYSPG60 | ZLPG60 | 60 × 60 | 120.5 | 96.5 | 77 | ±5.0 | 23.5 | 1.00 | |||
| 80 | XYSPG80 | ZLPG80 | 80 × 80 | 151 | 126 | 77 | ±12.5 | ±12.5 | 29.4 | 1.70 | ||
[ ! ] For included screw sizes, see the pages for the bottom stages.
"!" Knob Cover HDCVR13 (Sold separately): ø13 micrometer knob can be increased in diameter by installing the cover.
[!] Extension cover HDEXT13 (Sold separately): ø13 micrometer head knob can be extended.
Combinations of Cross Roller stages listed in this catalog.
| Part Number | Stage Configuration | Stage Surface (mm) | External Dimension (mm) | Travel Distance (mm) | Load Capacity (N) | Weight (kg) | ||||||||
| Type | No. | Bottom | Middle | Top | W | D | H | X | Y | Z | θ | |||
| (1)XYRPG (XY-Axis + Rotary) | 38 | XYPG40 | RPG38 | — | ⌀38 | 84.5 | 81.5 | 60 | ±6.5 | ±6.5 | — | Coarse 360° Fine Feed ±5º | 9.8 | 0.37 |
| 60 | XYPG60 | RPG60 | — | ⌀60 | 98.5 | 95.5 | 65 | — | 29.4 | 0.78 | ||||
| 85 | XYPG80 | RPG85 | — | ⌀85 | 149.5 | 136 | 65 | ±12.5 | ±12.5 | — | 39.2 | 1.48 | ||
| (2)XYZLRPG (XY-Axis + Horizontal Surf. Z-Axis + Rotary) | 38 | XYPG40 | ZLPG40 | RPG38 | ⌀38 | 96 | 81.5 | 100 | ±6.5 | ±6.5 | ±3.0 | Coarse 360° Fine Feed ±5º | 8.9 | 0.57 |
| 60 | XYPG60 | ZLPG60 | RPG60 | ⌀60 | 116.5 | 95.5 | 120 | ±5.0 | 29.4 | 1.40 | ||||
| 85 | XYPG80 | ZLPG80 | RPG85 | ⌀85 | 149.5 | 136 | 120 | ±12.5 | ±12.5 | 24.7 | 2.48 | |||
| (3)XYRSPG (Low Profile XY-Axis + Rotary) | 38 | XYSPG40 | RPG38 | — | ⌀38 | 98.5 | 82 | 42 | ±6.5 | ±6.5 | — | Coarse 360° Fine Feed ±5º | 8.8 | 0.29 |
| 60 | XYSPG60 | RPG60 | — | ⌀60 | 102.5 | 98 | 47 | — | 26.4 | 0.68 | ||||
| 85 | XYSPG80 | RPG85 | — | ⌀85 | 151 | 132 | 47 | ±12.5 | ±12.5 | — | 34.3 | 1.18 | ||
| (4)XYZLRSPG (Low Profile XY-Axis + Horizontal Surf. Z + Rotary) | 38 | XYSPG40 | ZLPG40 | RPG38 | ⌀38 | 98 | 82 | 82 | ±6.5 | ±6.5 | ±3.0 | Coarse 360° Fine Feed ±5º | 6.8 | 0.49 |
| 60 | XYSPG60 | ZLPG60 | RPG60 | ⌀60 | 120.5 | 98 | 102 | ±5.0 | 20.6 | 1.28 | ||||
| 85 | XYSPG80 | ZLPG80 | RPG85 | ⌀85 | 151 | 132 | 102 | ±12.5 | ±12.5 | 22.5 | 2.18 | |||
[ ! ] For included screw sizes, see the pages for the bottom stages.
"!" Knob Cover HDCVR13 (Sold separately): ø13 micrometer knob can be increased in diameter by installing the cover.
[!] Extension cover HDEXT13 (Sold separately): ø13 micrometer head knob can be extended.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| XYZLRSPG85 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Type | Table Size (Dia.) (Range Selectable) (D(Ø)) | Load Capacity (Range Selectable) (N) | Stroke (Distance along XY-Axis) (Range Selectable) (mm) | Stroke (Distance along Z-Axis) (Range Selectable) (mm) | Table Size (Dia.) D (Ø) | Allowable Load (N) | Z-Axis Stage Surface | Guiding Mechanism | Table Size (Length) L (mm) | Table Size (Width) W (mm) | Table Size (Thickness) H (Range Selectable) (mm) | Table Size (Thickness) H (mm) | Stroke (X Distance) (mm) | Stroke (Y Distance) (mm) | Stroke (Z Distance) (mm) | Stroke (θ Angle) (deg) | Feed Knob Position | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2,238.89 € | 1 | 9 Days | - | XYZ-Axis + Rotary Stages | 85mm | 5 to 30 | ±10 to 30mm | ±30mm or More | 85 | 22.5 | Horizontal Surface Z-Axis | - | 80 | 80 | - | - | ±12.5 | ±12.5 | ±5 | 360 | [Others] X, Y Axis Side, Z Axis Center |
Loading...
Basic information
| Feeding Method | Micrometer Heads | Table Material | Aluminum Alloy | Table Surface Treatment | Black Anodized Aluminum |
|---|---|---|---|---|---|
| Through Hole (Table Center Hole) | Not Provided | Clamp | Standard | Reversed | Standard |
| Feeding Method (Micrometer Type) | Standard | Feeding Method (Feeding Pitch)(mm) | 0.5 |
This page is [Precision]Combination Stages, part number XYZLRSPG85.
You can find the detail information about specifications and dimensions on part number XYZLRSPG85.
Configure
Basic Attributes
-
Type
- XY-Axis + Rotary Stages
- XYZ-Axis + Rotary Stages
- XYZ-Axis
- XY + Horizontal Surface Z-Axis
-
Table Size (Dia.) (Range Selectable)(D(Ø))
-
Load Capacity (Range Selectable)(N)
- 5 to 30
- 30.1 to 50
-
Stroke (Distance along XY-Axis) (Range Selectable)(mm)
-
Table Size (Dia.) D(Ø)
-
Allowable Load(N)
-
Z-Axis Stage Surface
- Horizontal Surface Z-Axis
- Z-Axis
-
Guiding Mechanism
- Cross Roller
-
Table Size (Length) L(mm)
-
Table Size (Width) W(mm)
-
Table Size (Thickness) H (Range Selectable)(mm)
-
Table Size (Thickness) H(mm)
-
Stroke (X Distance)(mm)
-
Stroke (Y Distance)(mm)
-
Stroke (Z Distance)(mm)
-
Stroke (θ Angle)(deg)
- 360
-
Feed Knob Position
- Side
- Others
-
Type
- XYRPG
- XYRSPG
- XYZLPG
- XYZLRPG
- XYZLRSPG
- XYZLSPG
- XYZPG
-
Stroke (Distance along Z-Axis) (Range Selectable)(mm)
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Variation of this product
| Part Number |
|---|
| XYRSPG38 |
| XYRSPG60 |
| XYRSPG85 |
| XYZLSPG40 |
| XYZLSPG60 |
| XYZLSPG80 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Standard Shipping Days ? | RoHS | Type | Table Size (Dia.) (Range Selectable) (D(Ø)) | Load Capacity (Range Selectable) (N) | Stroke (Distance along XY-Axis) (Range Selectable) (mm) | Stroke (Distance along Z-Axis) (Range Selectable) (mm) | Table Size (Dia.) D (Ø) | Allowable Load (N) | Z-Axis Stage Surface | Guiding Mechanism | Table Size (Length) L (mm) | Table Size (Width) W (mm) | Table Size (Thickness) H (Range Selectable) (mm) | Table Size (Thickness) H (mm) | Stroke (X Distance) (mm) | Stroke (Y Distance) (mm) | Stroke (Z Distance) (mm) | Stroke (θ Angle) (deg) | Feed Knob Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1,178.80 € | 1 | 9 Days | - | XY-Axis + Rotary Stages | 50mm or Less | 5 to 30 | Up to ±10mm | - | 38 | 8.8 | - | Cross Roller | 40 | 40 | - | - | ±6.5 | ±6.5 | - | 360 | Side | ||
1,293.40 € | 1 | 9 Days | - | XY-Axis + Rotary Stages | 60mm | 5 to 30 | Up to ±10mm | - | 60 | 26.4 | - | Cross Roller | 60 | 60 | - | - | ±6.5 | ±6.5 | - | 360 | Side | ||
1,538.98 € | 1 | 9 Days | 10 | XY-Axis + Rotary Stages | 85mm | 30.1 to 50 | ±10 to 30mm | - | 85 | 34.3 | - | Cross Roller | 80 | 80 | - | - | ±12.5 | ±12.5 | - | 360 | Side | ||
1,409.65 € | 1 | 9 Days | - | XY + Horizontal Surface Z-Axis | - | 5 to 30 | Up to ±10mm | Up to ±10mm | - | 7.8 | Horizontal Surface Z-Axis | Cross Roller | 40 | 40 | 60.1 to 70 | 62 | ±6.5 | ±6.5 | ±3 | - | [Others] X, Y Axis Side, Z Axis Center | ||
1,521.79 € | 1 | 9 Days | 10 | XY + Horizontal Surface Z-Axis | - | 5 to 30 | Up to ±10mm | Up to ±10mm | - | 23.5 | Horizontal Surface Z-Axis | Cross Roller | 60 | 60 | 70.1 to 80 | 77 | ±6.5 | ±6.5 | ±5 | - | [Others] X, Y Axis Side, Z Axis Center | ||
1,747.72 € | 1 | 9 Days | 10 | XY + Horizontal Surface Z-Axis | - | 5 to 30 | ±10 to 30mm | Up to ±10mm | - | 29.4 | Horizontal Surface Z-Axis | Cross Roller | 80 | 80 | 70.1 to 80 | 77 | ±12.5 | ±12.5 | ±5 | - | [Others] X, Y Axis Side, Z Axis Center |
