6 Series / slot width 8Minimal Corner Radius
(i)Remark
- Cutting is free for this product. Please specify the length you prefer.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
- Technical Information
HFSV6－3030 HFSV6－3060
| 6 Series |
 |
[S]Surface Treatment: Clear Anodize

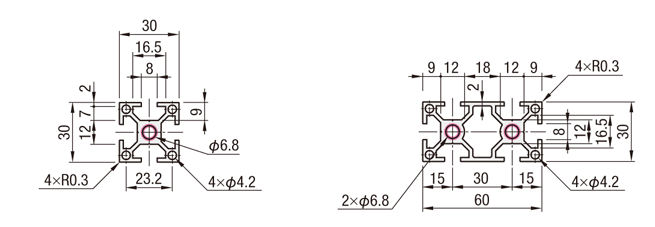

[ ! ] When tapped hole alterations are specified, the red circles on the outline drawing of the aluminum extrusion will be machined.
Specification Table
| Part Number | — | L |
| HFSV6−3030 | — | 1200 |
| Part Number | L 0.5 mm Increments | Mass kg/m | Sectional Area mm2 | Cross Sectional Moment of Inertia mm4 | ||
| ℓx | ℓy | |||||
| HFSV6 | 3030 | 50 to 4000 | 0.91 | 335 | 2.91 × 104 | 2.91 × 104 |
| 3060 | 1.60 | 594 | 5.41 × 104 | 20.83 × 104 | ||
Alterations
Some alterations are not applicable depending on types and sizes.
| Type | Alterations | Alteration Codes | App. Example | Contents |
|---|---|---|---|---|
| > End Tapping | End Tapping (Center Hole) | LTP/RTP/TPW LHP/RHP/HPW |  | Adds tapped holes on extrusion ends. Blind Joints which require this alteration (Screw Joint / Simple Joint) |
| End Tapping (4 Side Holes) | LSP/RSP/SPW |  | Adds tapped holes on extrusion corner ends. | |
| > Cutting Method Change | High Precision Cut | SC |  | Applies High Precision Cut with an overall length tolerance of L±0.2 (Standard = L±0.5). * Only applicable to L ≤ 1,500 |
| 45-Degree Cut | L□T45/R□T45 |  | Cuts with 45-degree angle. | |
| > Drill Wrench Hole | Wrench Hole in Fixed Position | LWP/RWP |  | Wrench access hole(s) for Blind Joints are drilled. The hole location will be aligned with the mating extrusion’s tapped hole location. Blind Joints which require this alteration (Screw Joint / Single Joint / Tapping Joint) |
| Extrusion End Cap The hole position moves by thickness | FL/FR |  | Offsets the wrench access hole for the thickness of Extrusion End Cap (3 mm). The extrusion end cap will be flat with the adjacent extrusion surface. | |
| Wrench Hole in Specified Position | AH/BH/AV/BV |  | Adds a wrench hole in a desired position from the left end. Use for Blind Jointing in beam sections, etc. | |
| > Counterboring | Counterbores in Specified Position | Z6/XA100 |  | Adds a counterbored hole in a desired position from the left end. Can be used for connecting extrusions or installing tables, etc. |
| > Blind Joints Dedicated Holes | D Hole | LDH/RDH |  | Adds required holes for Single Joint connections. (Single Joints) |
| S Hole | LSH |  | Adds required holes for Pre-Assembly. Insertion Double Joint connections. (Pre-Assembly Insertion Double Joints) | |
| M Hole | LMH |  | Adds required holes for Post-Assembly Insertion Double Joints, Center Joint connections. (Post-Assembly Insertion Double Joint / Center Joint) | |
| L Hole | JLP |  | Adds required holes for Parallel Joint connections. (Parallel Joints) | |
| > Other Machining | HFSR End Tapping | LTS/RTS/TSW |  | Necessary alteration to use Ends Protection Plates for HFSR series. |
| End Face C Chamfering | CW |  | Adds C Chamfering on extrusion ends. | |
| Labeling | ZZZ |  | Adds a sticker with catalog No. etc. on the aluminum extrusions. Although number of characters are limited, customer's own serial number or unit number can be labeled. |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| HFSV6-3030-[50-4000/0.5] |
| HFSV6-3060-[50-4000/0.5] |
| Part Number | Minimum order quantity | Volume Discount | RoHS | Extrusion Size | Extrusion Type | Number of Extrusion Slots | Extrusion Size: Width (A) (mm) | Overall Length L (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5 Days | 10 | 30x30 | Square | 1 Slot x 1 Slot | 30 | 50 ～ 4000 | ||
| 1 | 5 Days | 10 | 30x60 | Rectangle | 1 Slot x 2 Slots | 60 | 50 ～ 4000 |
Loading...
Specifications / Overview
Features
[HFSV Series]Small gap collects few dusts. [Existing HFS Series]
App. Example
Basic information
| Standard Extrusion Size(mm) | 30 | Extrusion Series | 6 Series | Extrusion Type | HFS (Standard) |
|---|---|---|---|---|---|
| Surface Treatment | Clear Anodize | Number of Grooved Surfaces | 4-Side Slot | Surface Milled | Not Provided |
| Material | EN AC-51400-T5 Equiv. | Extrusion Size: Thickness (T)(mm) | 30 | L Dimension Fixed, Specified | Configuration |
