Blind Joint: Post Assembly Insertion Double Joint Kit
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
- Technical Information
HPJN (Post-Assembly Insertion Double Joints)
(1) Post-Assembly Insertion Double Joint A
(2) Post-Assembly Insertion Double Joint B
(3) Joint Pipe
| Part Name | [M] Material | |
| Post-Assembly Insertion Double Joints (A·B) | EN 1.4308 Equiv. | |
| Joint Pipe | No. 5-20 No. 5-25 No. 5-60 | EN 1.4301 Equiv. (Sintering) |
| No. 5-40 | EN 1.4301 Equiv. | |
| Hex Socket Head Cap Screw | EN 1.4301 Equiv. | |
Specification Table
| Part Number |
| HPJN5−20 |
| Part Number | Accessory | ||||||||
| Type | No. | (1) Post-Assembly Insertion Double Joint A | Quantity | (2) Post-Assembly Insertion Double Joint B | Quantity | (3) Joint Pipe | Quantity | (4) Hex Socket Head Cap Screw | Quantity |
| HPJN | 5−20 | Post-Assembly Insertion Double Joint A5 | 1 | Post-Assembly Insertion Double Joint B5 | 1 | Joint Pipe 5-20 | 1 | M3 × 15 | 1 |
| 5−40 | Joint Pipe 5-40 | M3 × 35 | |||||||
| 5－25 | Joint Pipe 5-25 | M3 × 20 | |||||||
| 5－60 | Joint Pipe 5-60 | M3 × 55 | |||||||
| Part Name | L | D | d |
| Joint Pipe 5-20 | 8 | 7 | 4.7 |
| Joint Pipe 5-40 | 28 | ||
| Joint Pipe 5-25 | 13 | ||
| Joint Pipe 5-60 | 48 |
(3) Joint Pipe
| Post Assembly Insertion Double Joint Kits | Applicable Extrusion No. | [Exception]Extrusion Not Available | |
| HPJN5−20 | 5−2020 | Not usable for surfaces without slots. | |
| HPJN5−40 | 5−2040 | 5−4040 | |
| HPJN5－25 | 5－2525 | 5－2550 | |
| HPJN5－60 | 5－2060 | 5－4060 | |
Connecting method
| Alterations required for aluminum extrusions |
|---|
| M Hole |
| Step | Front View | Side View | Description | Part Number Ordering Codes (30 Sq.) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 |  |  |  | Pre-insert the joint pipe (C) into the M hole of extrusion (1). |
| ||||||||||||||
| 2 |  |  | Post-Assembly Insertion Double Joint (A) Turn (B) sideways and insert it into the groove of the frame (2). |  | |||||||||||||||
| 3 |  |  |  | Rotate the joints (A) and (B) 90° in the direction as shown in the left figure. | |||||||||||||||
| 4 |  |  | Insert the Post-Assembly Double Joints (A) and (B) into the slot of the extrusion. |  | |||||||||||||||
| 5 |  |  |  | Insert the hex socket head cap screw into a counterbore hole of the joint (A). | |||||||||||||||
| 6 |  |  | Tighten the hex socket head cap screw with a hex wrench; the extrusions (1) and (2) are lifted upward, then 2 extrusions joint together. |  | |||||||||||||||
* Cautions
Hold the joint component with fingers to tighten a screw. (1)
It can be securely fasten at the center without protruding from the extrusion. (2)
If tightened without pressing the joint component, it may protrude from the extrusion. (3)
* Strength data for blind joints is not available.
·Installation Example
| Symbol | Product Name | Part Number |
|---|---|---|
| (1) | M Type Hole Alterations for Aluminum Extrusions | HFS5-2020-1000-LMH |
| (2) | Aluminum Extrusion | HFS5-2020-1000 |
| (3) | Post Assembly Insertion Double Joint Kits | HPJN5-20 |
Product Comparison Information
■5 Series Blind Joints
| Product Name | Post-Assembly Insertion Double Joints | Screw Joints | Tapping Joints | Center Joints | Parallel Joints |
|---|---|---|---|---|---|
| Product Photo |  |  |  |  |  |
| Installation Diagram |  |  |  |  |  |
| Material | EN 1.4308 Equiv./EN 1.4301 Equiv. | Steel or EN 1.4301 Equiv. | JIS−SWCH18A | EN 1.4308 Equiv. | EN 1.4308 Equiv./EN 1.4301 Equiv. |
| Features | Connects securely at two locations. Tightest connection can be achieved of all Blind Joints. | Joint Plate enables secure and economical connection. | Tapping alteration is not required. Most economical Blind Joints. | Most standard Blind Joints usable with various types of aluminum extrusions. | Extrusions can be connected in parallel. |
| In the Extrusion Alterations required | M Hole | Tapping / Wrench Hole | Wrench Hole | M Hole | L Hole |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Specifications / Overview

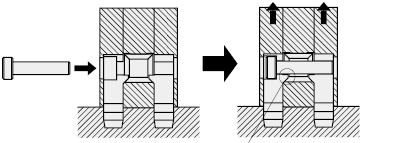

The tapered part of a Joint Pipe and the tab of a post-assembly insertion joint create upward lifting force, connecting the extrusions together.
App. Example
·Installation Example
Basic information
| Material | EN 1.4301 Equiv. | Joint Kit Type | Post-Assembly Insertion Double Joint Kits |
|---|
