Polyethylene Laminated Sheets

Polyethylene Laminated Sheets
  • Volume Discount

MISUMI

MISUMI


Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

HPEFT (Standard)
HPEDT (Anti-Static)
HPEHT (Light-Shielding Type)

3 Layer Film
HPEFT

HPEDT

5 Layer Film
HPEHT

Non-PVC Sheets: Related Image
Type[M] MaterialColor [ ! ]Heat Resistance Temp.
(1)HPEFTPolyethylene (PE), Ethylene Vinyl Acetate (EVA)Transparent−20°C to 110°C
(2)HPEDTPolyethylene (PE)Semi-transparent
(3)HPEHTPolyethylene (PE), Nylon (NY), Aluminum (Aℓ)Silver−20°C to 80°C
[!] For Transparency, refer to the Transparency Comparison Photo below. [!] HPEHT (Light-Shielding Type) has 99.9% rate of shading.

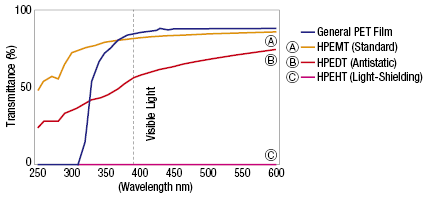

■Optical Transparency

Non-PVC Sheets: Related Image

■Transparency Comparison Photo (Sheet - Subject Distance: 50 mm)

(A) HPEFT

Non-PVC Sheets: Related Image

(B) HPEDT

Non-PVC Sheets: Related Image

Specification Table

Part Number—L
HPEHT0.2—10
Part NumberLength
L
(m)		Thickness
T
Actual Dimension		Width
W
(m)		Mass (kg)*
TypeT (Nominal)L1L10L50
HPEFT0.21 10 500.21.20.44.213.1
HPEDT
HPEHT0.181.20.32.512.6
[!] Specified in meter Increments. * The mass includes paper cores (Except for L1).

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
HPEDT0.2-1
HPEDT0.2-10
HPEDT0.2-50
HPEFT0.2-1
HPEFT0.2-10
HPEFT0.2-50
HPEHT0.2-1
HPEHT0.2-10
HPEHT0.2-50
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSSpecifications Material Color Length L
(m)

12.59 €

1 Available 6 Days 10Anti-Static TypePolyethyleneTranslucent1

92.70 €

1 Available 6 Days 10Anti-Static TypePolyethyleneTranslucent10

423.15 €

1 Available 6 Days 10Anti-Static TypePolyethyleneTranslucent50

22.68 €

1 Available 6 Days 10Standard TypePolyethylene, Ethylene Vinyl AcetateTransparent1

56.68 €

1 Available 6 Days 10Standard TypePolyethylene, Ethylene Vinyl AcetateTransparent10

254.70 €

1 Available 6 Days 10Standard TypePolyethylene, Ethylene Vinyl AcetateTransparent50

16.38 €

1 Available 6 Days 10Light-Shielding TypePolyethylene, Nylon, AluminumSilver1

146.10 €

1 Available 6 Days 10Light-Shielding TypePolyethylene, Nylon, AluminumSilver10

617.10 €

1 Available 6 Days 10Light-Shielding TypePolyethylene, Nylon, AluminumSilver50

Loading...

  1. 1

Specifications / Overview

■Film Property

ItemDirectionValue
Standard TypeAnti-Static TypeLight-Shielding Type
Tensile StrengthVertical343 kgf/cm2242 kgf/cm2463 kgf/cm2
Horizontal329 kgf/cm2225 kgf/cm2433 kgf/cm2
Tear StrengthVertical93 gf536 gf144 gf
Horizontal100 gf704 gf154 gf
Heat Resistance—110°C80°C80°C
Surface Resistivity—1014Ω1012Ω—

■Outgas Testing Result of Anti-Static Type

SheetMeasuring MethodSIM MethodSIM MethodSIM MethodSIM Method
Anti-Static TypeOutgasDiethyl MalonateEthyl AcetateDibutyl PhthalateDioctyl Phthalate
60°C for 60 min.Below Detection LimitBelow Detection LimitBelow Detection LimitBelow Detection Limit
Detection Limit2.5 ng/g2.5 ng/g5.0 ng/g25.0 ng/g

SIM: Stands for "Select Ion Monitoring" (one type of Gas Chromatography Analysis).
Measures pre-registered molecular weight substance only in high accuracy.



Basic information

Thickness T 0.2

Configure

Clear all
