Hooks Clip Type【20 Pieces Per Package】
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
- Order quantities extended (D-JIT)
- Stock
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

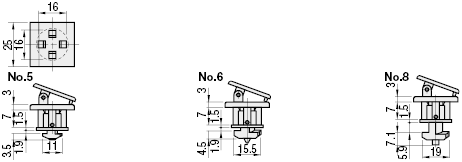

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
- Technical Information
(20 pcs./pkg.)
![Accessory Hooks - Clip Type[20 pcs.]: Related Image](http://uk.misumi-ec.com/linked/item/10302266020/img/drw_20.gif)
| Type | Main Body | Shaft, Spring | |
| [M] Material | [M] Material | [S] Surface Treatment | |
| HFCFK | Polyamide | JIS−SWC | Trivalent Chromate |
Specification Table
| Part Number |
| HFCFK8 |
| Part Number | Allowable Load (kgf) | |
| Type | No. | |
| HFCFK | 5 (For 5 Series) 6 (For 6 Series) 8 (For 8 / 8-45 Series) | 0.5 |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| HFCFK5 |
| HFCFK6 |
| HFCFK8 |
| Part Number |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | RoHS | Extrusion No. | |
|---|---|---|---|---|---|---|---|
75.56 € | 20 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 5 | |
75.56 € | 20 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 6 | |
75.56 € | 20 Pieces Per Package | 1 pack | Available | 5 Days | 10 | 8, 8-45 |
Loading...
App. Example
Hooks and clips are removable.
Configure as required for orientation of the extrusion slot in use.
![Accessory Hooks - Clip Type[20 pcs.]: Related Image](http://uk.misumi-ec.com/linked/item/10302266020/img/exp_20.gif)
How to Mount
Turns 90 deg.
![Accessory Hooks - Clip Type[20 pcs.]: Related Image](http://uk.misumi-ec.com/linked/item/10302266020/img/exp_21.gif)
Basic information
| Type | Hook | Material | Resin | Type | Accessories Hooks |
|---|---|---|---|---|---|
| Material | Polyamide | Specifications | Clip Type | Extrusion Series | HFS |
| Sale Type | Sold by the package |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
