Drilling Jigs (Part Numbers - CAD Download)
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
- Technical Information
HFSJG
* No hole for HFSJG5.
* No hole for HFSJG5.

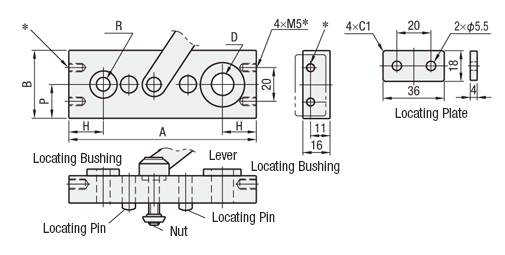

Main Body, Locating Plate
[M]Material: EN 1.0038 Equiv.
[S]Surface Treatment: Black Oxide
[M]Material: EN 1.0038 Equiv.
[S]Surface Treatment: Black Oxide
Specification Table
| Part Number |
| HFSJG6 |
| Part Number | A | B | P | H | R | D | Applicable Extrusion (Series) | Component | |||||||
| Type | No. | Clamp Lever | Quantity | Nut | Quantity | Screw | Quantity | Locating Plate | |||||||
| HFSJG | 5 | 100 | 25 | 10 | 10 | 7.3 | 7.1 | 5 Series | CLDM5−20−Y | 1 | HNTTSN5−5 | 1 | CHOB5−8 | 1 | 1 pc. |
| 6 | 100 | 30 | 15 | 15 | 8 | 11.1 | 6 Series | CLDM6−20−M | HNTFSN6−6 | 2 | |||||
| 8 | 110 | 40 | 20 | 20 | 8 | 13.1 | 8 Series | CLDM8−25−B | HNTFSN8−8 | ||||||
| 8−45 | 120 | 45 | 22.5 | 22.5 | 8 | 15.1 | 8−45 Series | CLDM8−25−S | HNTFSN8−8 | ||||||
| Machining Dimensions Extrusion Series | H mm | H1 mm | D Type Hole mm | M Type Hole mm | d (Wrench Hole) mm |
| 5 Series | 10 | 10 | — | 7.1 | 7.3 |
| 6 Series | 15 | 15 | 11.1 | 11.1 | 8 |
| 8 Series | 20 | 20 | 13.1 | 13.1 | |
| 8−45 Series | 22.5 | 20 | 15.1 | 13.1 |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Loading...
Specifications / Overview

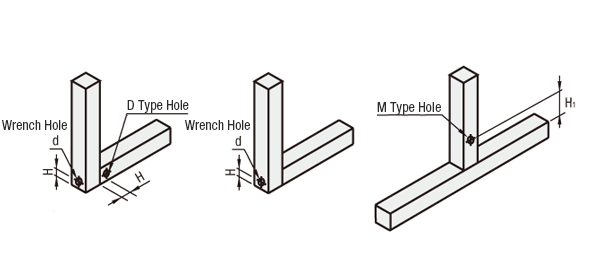

D Type Hole(Single Joint) Wrench Hole
(Single Joint) M Type Hole
(Center Joint)
(Post-Assembly Insertion Double Joint) Single Joint Tapping Joints
Screw Joint Center Joint
App. Example

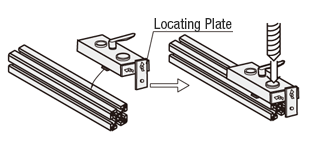

1) Attach the Locating Plate to one of the holes on the drilling jig.
2) Slide a drilling jig into the frame channel up to the Locating Plate.
3) Drill a hole using the positioning jig bushing.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
