[Simplified Adjustments] Rotary Tables
![[Simplified Adjustments] Rotary Tables](http://uk.misumi-ec.com/linked/material/mech/MSM1/PHOTO/10302277310.jpg?$product_main$)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog

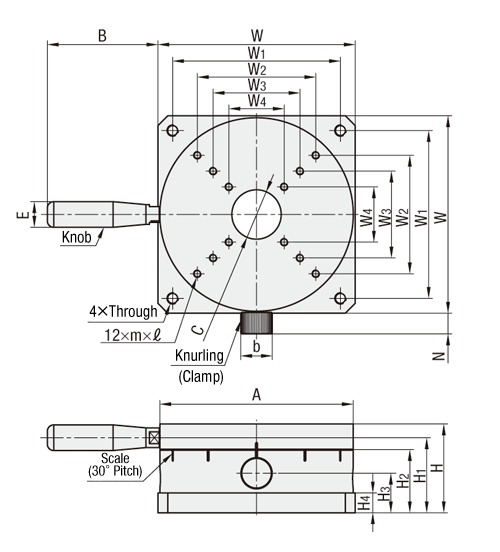

Dimensional Drawings
![[Manual Units]Rotary Table: Related Image](http://uk.misumi-ec.com/linked/item/10302277310/img/drw_01_001_001.gif)
[ ! ] Through Hole C is not applicable to KUS50.
[!] Knob is not included. (Not installed)
Surface Treatment: Electroless Nickel Plating
Knob: GRMSN
Knurled Knob: NOBA
Specification Table
| Part Number |
| KUS100 |
| Part Number | Stage Surface (mm) | Base (mm) | Knob (mm) | Knurled Knob (mm) | ||||||||||||||||
| Type | No. | A | W | W1 | W2 | W3 | W4 | m | C | M | ℓ | H | H1 | H2 | H3 | H4 | B | E | N | b |
| KUS | 50 | ⌀48 | 50 | 40 | 27 | 18 | 9 | M4 | — | M5 | 6 | 34 | 28 | 22 | 13 | 5 | 44 | ⌀10 | 11.5 | ⌀12 |
| 100 | ⌀98 | 100 | 85 | 60 | 44 | 28 | M4 | ⌀25 | M6 | 8 | 45 | 38 | 32 | 20 | 10 | 56 | ⌀13 | 10.5 | ⌀16 | |
| 200 | ⌀198 | 200 | 175 | 124 | 94 | 64 | M5 | ⌀70 | M8 | 10 | 70 | 61 | 52.5 | 32 | 12 | 80 | ⌀20 | 14.5 | ⌀30 | |
| Part Number | Stage Surface (mm) | Number of Indexed Positions | Indexing Angle | Load Capacity N[kgf] | Indexable Load (Reference Values) N[kgf] | Travel Accuracy | Weight (kg) | |||
| Type | No. | Eccentricity (mm) | Parallelism (mm) | Surface Runout (mm) | ||||||
| KUS | 50 | ⌀48 | 12 | 30° ±1° | 980 {100} | 98 {10} | 0.1 | 0.2 | 0.1 | 0.34 |
| 100 | ⌀98 | 1470 {150} | 196 {20} | 1.64 | ||||||
| 200 | ⌀198 | 1960 {200} | 294 {30} | 8.70 | ||||||
[ ! ] Still usable when exceeding the indexable loads but plunger indexing will not work.
[ ! ] Instead of simple positioning in 30° increments using plungers, clamp allows for fixing in any position.

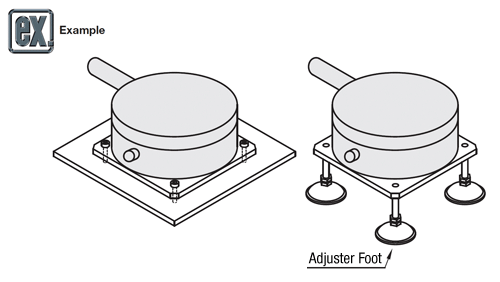

App. Example

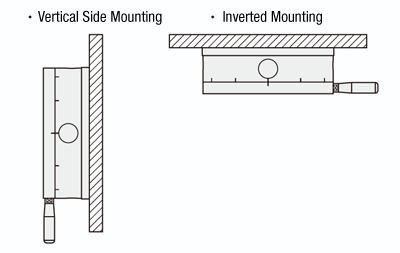

Care must be taken for installations shown on the right.
| No. | Inverted Mounting | Vertical Side Mounting |
| 50 | ○ | ○ |
| 100 | △ | ○ |
| 200 | △ | △ |
△: Performance may be seriously affected depending on application.
(There is no data on load capacity)
[ ! ] Note that some load applied may cause the rotary table to fall off.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| KUS50 |
| KUS100 |
| KUS200 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Load Capacity (Range) (N) | Table Size (Length) L (mm) | Table Size (Width) W (mm) | No. | Stage Surface (Ø) | |
|---|---|---|---|---|---|---|---|---|---|
225.44 € | 1 | 12 Days | 50.1 to 100 | 50 | 50 | 50 | 48 | ||
312.33 € | 1 |
Same day
Stock | 100.1 or More | 100 | 100 | 100 | 98 | ||
552.88 € | 1 | 12 Days | 100.1 or More | 200 | 200 | 200 | 198 |
