Folding Door Units

Folding Door Units

MISUMI

MISUMI


It is a set that combines the parts required for making a folding door. You can choose the material and size of the panel.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

* Do not use blind brackets as they will interfere with the outer frame extrusions of the folding door unit.
* Customer assembly required.
HHUA 
[Enlarged * Section] [Extrusions when HHUA6 selected] [Extrusions when HHUA8 selected]
Please attach the included extrusion
end caps at eight cut surfaces.



[ ! ] Customer assembly required.
[ ! ] Only the folding door is sold.
[!] The diagram is for left opening example. For right opening style, the hinges mount on the right side. It will be L2 > L1.
[ ! ] Minimum notching is given to a panel to avoid interference with fastener parts.

Specification Table

Part Number—Panel—W—H
HHUA6L—PC—1000—800
Part NumberPanel Selection
(Select a desired material and thickness from the codes below.)		W (Width)
Configurable
1 mm Increments		H (Height)
Configurable
1 mm Increments		L1L2Components
Extrusion*Fastening PartsPanel ClampsSliders for Folding DoorsHandleHinges (for Middle)Hinges (for Fixing)Extrusion End Cap
TypeNo.Open/Close DirectionPartPartQty.PartQty.PartQty.PartQty.PartQty.PartQty.PartQty.
HHUA6L
(Left)		Acrylic (Clear)

Polycarbonate (Clear)

PET (Clear)

Anti-static PVC (Clear)

No Panel		AC
(Thickness 5 mm)
PC
(Thickness 5 mm)
PY
(Thickness 5 mm)
ST
(Thickness 5 mm)
NN
(Thickness 5 mm)		AC3
(Thickness 3 mm)
PC3
(Thickness 3 mm)
PY3
(Thickness 3 mm)
ST3
(Thickness 3 mm)
NN3
(Thickness 3 mm)		500 to 1500500 to 1000L2+28W/2−15HFS6−3030HCJ68(Thickness 5 mm)
HSCP3H−B
(Thickness 3 mm)
HSCP5HN−B		8HFAFSH62HHDF20−SST2HHPSN6−SST2HHPFLN6−SST2HFC6−3030−S8
R
(Right)		W/2−15L1+28HHPFRN6−SST
8L
(Left)		L2+46W/2−24HFS8−4040HCJ88(Thickness 5 mm)
HSCP5H−B
(Thickness 3 mm)
HSCP7H−B		8HFAFSH82HHDF26−SST2HHPSN8−SST2HHPFLN8−SST2HFC8−4040−S8
R
(Right)		W/2−24L1+46HHPFRN8−SST
[ ! ] Components such as panel clamps and handles are included even with No Panel Type.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
HHUA6L-AC3-[500-1500/1]-[500-1000/1]
HHUA6L-AC-[500-1500/1]-[500-1000/1]
HHUA6L-NN3-[500-1500/1]-[500-1000/1]
HHUA6L-NN-[500-1500/1]-[500-1000/1]
HHUA6L-PC3-[500-1500/1]-[500-1000/1]
HHUA6L-PC-[500-1500/1]-[500-1000/1]
HHUA6L-PY3-[500-1500/1]-[500-1000/1]
HHUA6L-PY-[500-1500/1]-[500-1000/1]
HHUA6L-ST3-[500-1500/1]-[500-1000/1]
HHUA6L-ST-[500-1500/1]-[500-1000/1]
HHUA6R-AC3-[500-1500/1]-[500-1000/1]
HHUA6R-AC-[500-1500/1]-[500-1000/1]
HHUA6R-NN3-[500-1500/1]-[500-1000/1]
HHUA6R-NN-[500-1500/1]-[500-1000/1]
HHUA6R-PC3-[500-1500/1]-[500-1000/1]
HHUA6R-PC-[500-1500/1]-[500-1000/1]
HHUA6R-PY3-[500-1500/1]-[500-1000/1]
HHUA6R-PY-[500-1500/1]-[500-1000/1]
HHUA6R-ST3-[500-1500/1]-[500-1000/1]
HHUA6R-ST-[500-1500/1]-[500-1000/1]
HHUA8L-AC3-[500-1500/1]-[500-1000/1]
HHUA8L-AC-[500-1500/1]-[500-1000/1]
HHUA8L-NN3-[500-1500/1]-[500-1000/1]
HHUA8L-NN-[500-1500/1]-[500-1000/1]
HHUA8L-PC3-[500-1500/1]-[500-1000/1]
HHUA8L-PC-[500-1500/1]-[500-1000/1]
HHUA8L-PY3-[500-1500/1]-[500-1000/1]
HHUA8L-PY-[500-1500/1]-[500-1000/1]
HHUA8L-ST3-[500-1500/1]-[500-1000/1]
HHUA8L-ST-[500-1500/1]-[500-1000/1]
HHUA8R-AC3-[500-1500/1]-[500-1000/1]
HHUA8R-AC-[500-1500/1]-[500-1000/1]
HHUA8R-NN3-[500-1500/1]-[500-1000/1]
HHUA8R-NN-[500-1500/1]-[500-1000/1]
HHUA8R-PC3-[500-1500/1]-[500-1000/1]
HHUA8R-PC-[500-1500/1]-[500-1000/1]
HHUA8R-PY3-[500-1500/1]-[500-1000/1]
HHUA8R-PY-[500-1500/1]-[500-1000/1]
HHUA8R-ST3-[500-1500/1]-[500-1000/1]
HHUA8R-ST-[500-1500/1]-[500-1000/1]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSExtrusion No. Extrusion Size Door Open-Close Direction Panel Material Panel Thickness H
(mm) 		W
(mm)
1 9 Days 1063030LeftAcrylic3500 ～ 1000500 ～ 1500
1 9 Days 1063030LeftAcrylic5500 ～ 1000500 ～ 1500
1 9 Days 1063030LeftNo Panel3500 ～ 1000500 ～ 1500
1 9 Days 1063030LeftNo Panel5500 ～ 1000500 ～ 1500
1 9 Days 1063030LeftPolycarbonate3500 ～ 1000500 ～ 1500
1 9 Days 1063030LeftPolycarbonate5500 ～ 1000500 ～ 1500
1 9 Days 1063030LeftPET3500 ～ 1000500 ～ 1500
1 9 Days 1063030LeftPET5500 ～ 1000500 ～ 1500
1 9 Days 1063030LeftAnti-static PVC3500 ～ 1000500 ～ 1500
1 9 Days 1063030LeftAnti-static PVC5500 ～ 1000500 ～ 1500
1 9 Days 1063030RightAcrylic3500 ～ 1000500 ～ 1500
1 9 Days 1063030RightAcrylic5500 ～ 1000500 ～ 1500
1 9 Days 1063030RightNo Panel3500 ～ 1000500 ～ 1500
1 9 Days 1063030RightNo Panel5500 ～ 1000500 ～ 1500
1 9 Days 1063030RightPolycarbonate3500 ～ 1000500 ～ 1500
1 9 Days 1063030RightPolycarbonate5500 ～ 1000500 ～ 1500
1 9 Days 1063030RightPET3500 ～ 1000500 ～ 1500
1 9 Days 1063030RightPET5500 ～ 1000500 ～ 1500
1 9 Days 1063030RightAnti-static PVC3500 ～ 1000500 ～ 1500
1 9 Days 1063030RightAnti-static PVC5500 ～ 1000500 ～ 1500
1 9 Days 1084040LeftAcrylic3500 ～ 1000500 ～ 1500
1 9 Days 1084040LeftAcrylic5500 ～ 1000500 ～ 1500
1 9 Days 1084040LeftNo Panel3500 ～ 1000500 ～ 1500
1 9 Days 1084040LeftNo Panel5500 ～ 1000500 ～ 1500
1 9 Days 1084040LeftPolycarbonate3500 ～ 1000500 ～ 1500
1 9 Days 1084040LeftPolycarbonate5500 ～ 1000500 ～ 1500
1 9 Days 1084040LeftPET3500 ～ 1000500 ～ 1500
1 9 Days 1084040LeftPET5500 ～ 1000500 ～ 1500
1 9 Days 1084040LeftAnti-static PVC3500 ～ 1000500 ～ 1500
1 9 Days 1084040LeftAnti-static PVC5500 ～ 1000500 ～ 1500
1 9 Days 1084040RightAcrylic3500 ～ 1000500 ～ 1500
1 9 Days 1084040RightAcrylic5500 ～ 1000500 ～ 1500
1 9 Days 1084040RightNo Panel3500 ～ 1000500 ～ 1500
1 9 Days 1084040RightNo Panel5500 ～ 1000500 ～ 1500
1 9 Days 1084040RightPolycarbonate3500 ～ 1000500 ～ 1500
1 9 Days 1084040RightPolycarbonate5500 ～ 1000500 ～ 1500
1 9 Days 1084040RightPET3500 ～ 1000500 ～ 1500
1 9 Days 1084040RightPET5500 ～ 1000500 ～ 1500
1 9 Days 1084040RightAnti-static PVC3500 ～ 1000500 ～ 1500
1 9 Days 1084040RightAnti-static PVC5500 ～ 1000500 ～ 1500

Loading...

  1. 1

Specifications/Overview

■Clearance between HHUA and the Outer Frame Extrusions  ■Details of Each Component


Part NumberProduct Name
HFS6−303030 mm Sq. Alum. Extrusions
HFS8−404040 mm Sq. Alum. Extrusions
HCJScrew Joints
HSCP3H－B,HSCP5H－BPanel Clamps
HFAFSHSliders for Folding Doors
HHDFHandle
HHPSNHinge
HHPFLN (HHPFRN)Flag Hinges
HFC6−3030−S,HFC8−4040−SExtrusion End Cap

■Imparting Folding Door
Folding Door UnitsOuter Frame Extrusions
30 Square (HFS6)40 sq. (HFS8)
TypeNo.W DimensionH DimensionX DimensionY DimensionW DimensionH DimensionX DimensionY Dimension
When 500 ≤ W < 700When 700 ≤ W < 1,000When 1,000 ≤ W < 1,500When 500 ≤ W < 700When 700 ≤ W < 1,000When 1,000 ≤ W < 1,500
HHUA6A−Y−XB−143.57.56.55.5——————
8——————A−Y−XB−144.511.59.57.5

App. Example


■Example of Folding Door Assembly
(Left Opening)
    
·Corners are screw-joint connected.·Insert a panel and fix it with

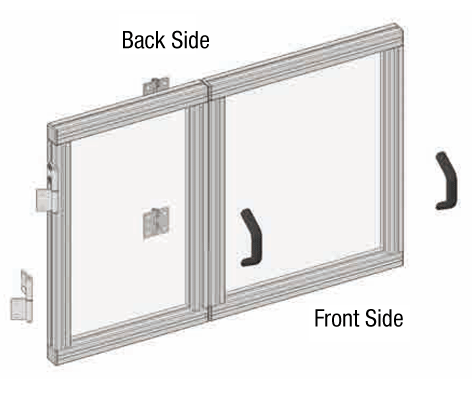

a panel clamp. (Bracket connection also possible)		·Combine 2 panels. Mount hinges onto the back side, flag hinges onto the left side and
handles on the front side.

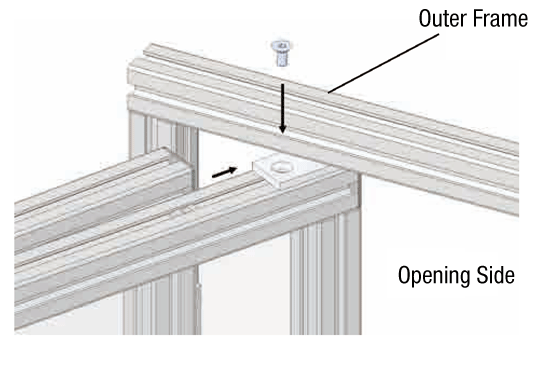

·Connect the outer frame and the folding door. And
mount a folding door-dedicated slider on the upper and

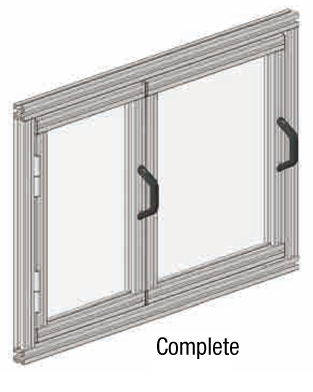

lower slot of the outer frame.		·• Keep it fully open and fix the folding door to the folding door slider.

[ ! ] Smoothness of the door depends on the tolerance of aluminum extrusions and accuracy of assembly.
Be sure to finely adjust the position of sliders.
