Seal Washers / Thread Style / Standard Type
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
Dimensional Drawings
| Type | (1) Metal Part | (2) Rubber Part | Applicable Temperature Range | ||
| [M] Material | [S] Surface Treatment | [M] Material | [H] Hardness | ||
| GSWM | EN 1.0330 Equiv. | Chromate | Nitrile Rubber (NBR) | Shore A65 | －30 to 100°C |
| GSWMF | Fluoro Rubber (FKM) | Shore A70 | －10 to 200°C | ||
| SGSWMF | EN 1.4301 Equiv. | - | Fluoro Rubber (FKM) | Shore A70 | －10 to 200°C |
Specification Table
| Part Number |
| SGSWMF6 |
| Part Number | T | D | Applicable Bolt | Max allowable pressure | Reference Value | |||||
| Tightening Torque N⋅m | Size of Application Part | |||||||||
| Hole I.D. max. | Tightening Face O.D. min. | Chamfering max. | ||||||||
| Type | No. | min. | max. | |||||||
| GSWM (Nitrile Rubber) GSWMF (Fluoro Rubber) SGSWMF (Stainless Steel) Fluoro Rubber | 3 | 1 | 7.8 | M3 | 5 MPa | 0.7 | 1.2 | 3.3 | 5.4 | 0.2 |
| 4 | 1.3 | 10.2 | M4 | 5 MPa | 1 | 2.2 | 4.4 | 7 | 0.2 | |
| 5 | 12.5 | M5 | 5 MPa | 2.2 | 3.8 | 5.3 | 8 | 0.2 | ||
| 6 | 14 | M6 | 10 MPa | 3 | 8.5 | 6.5 | 10 | 0.2 | ||
| 8 | 17.5 | M8 | 10 MPa | 4.5 | 20 | 8.7 | 13 | 0.4 | ||
| 10 | 1.5 | 20.3 | M10 | 10 MPa | 6 | 25 | 10.8 | 15 | 0.4 | |
| 12 | 2 | 24.3 | M12 | 10 MPa | 8 | 56 | 13.7 | 17.5 | 0.4 | |
| 16 | 30.3 | M16 | 10 MPa | 10 | 125 | 17.5 | 23 | 0.8 | ||
| 20 | 3 | 36.5 | M20 | 10 MPa | 40 | 135 | 21.5 | 28 | 0.8 | |
| 24 | 42.8 | M24 | 10 MPa | 60 | 190 | 25 | 34 | 0.8 | ||

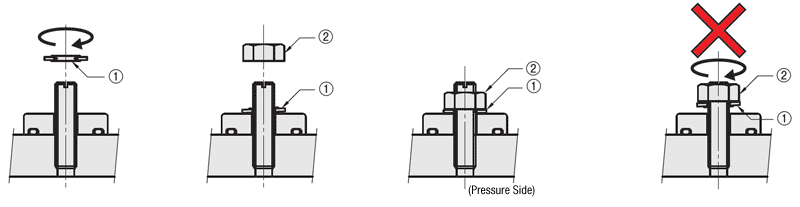

Cautions on Installation
·For tightening with nuts.
onto the thread
all the way to the base,
(2) Insert the nut
it firmly contacts the washer
(1) Do not insert washers.
·For tightening with bolts.
onto the thread
to below the neck,
(2) insert the bolts
it firmly contacts the washer
(1) washer in.
Example
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| GSWM3 |
| GSWM4 |
| GSWM5 |
| GSWM6 |
| GSWM8 |
| GSWM10 |
| GSWM12 |
| GSWM16 |
| GSWM20 |
| GSWM24 |
| GSWMF3 |
| GSWMF4 |
| GSWMF5 |
| GSWMF6 |
| GSWMF8 |
| GSWMF10 |
| GSWMF12 |
| GSWMF16 |
| GSWMF20 |
| GSWMF24 |
| SGSWMF3 |
| SGSWMF4 |
| SGSWMF5 |
| SGSWMF6 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Applicable Screws M (mm) | Retainer Material | Rubber Material | |
|---|---|---|---|---|---|---|---|
1.01 € | 1 | Available | 5 Days | 3 | EN 1.0330 Equiv. | Nitrile Rubber (NBR Nitrile Rubber ) | |
1.01 € | 1 | Available | 5 Days | 4 | EN 1.0330 Equiv. | Nitrile Rubber (NBR Nitrile Rubber ) | |
1.14 € | 1 | Available |
Same day
Stock | 5 | EN 1.0330 Equiv. | Nitrile Rubber (NBR Nitrile Rubber ) | |
1.14 € | 1 | Available |
Same day
Stock | 6 | EN 1.0330 Equiv. | Nitrile Rubber (NBR Nitrile Rubber ) | |
1.38 € | 1 | Available |
Same day
Stock | 8 | EN 1.0330 Equiv. | Nitrile Rubber (NBR Nitrile Rubber ) | |
1.51 € | 1 | Available | 5 Days | 10 | EN 1.0330 Equiv. | Nitrile Rubber (NBR Nitrile Rubber ) | |
1.82 € | 1 | Available | 5 Days | 12 | EN 1.0330 Equiv. | Nitrile Rubber (NBR Nitrile Rubber ) | |
2.26 € | 1 | Available | 5 Days | 16 | EN 1.0330 Equiv. | Nitrile Rubber (NBR Nitrile Rubber ) | |
2.77 € | 1 | Available | 5 Days | 20 | EN 1.0330 Equiv. | Nitrile Rubber (NBR Nitrile Rubber ) | |
3.40 € | 1 | Available | 5 Days | 24 | EN 1.0330 Equiv. | Nitrile Rubber (NBR Nitrile Rubber ) | |
2.77 € | 1 | Available | 5 Days | 3 | EN 1.0330 Equiv. | Fluoro Rubber (FKM) | |
2.77 € | 1 | Available | 5 Days | 4 | EN 1.0330 Equiv. | Fluoro Rubber (FKM) | |
2.89 € | 1 | Available | 5 Days | 5 | EN 1.0330 Equiv. | Fluoro Rubber (FKM) | |
3.15 € | 1 | Available | 5 Days | 6 | EN 1.0330 Equiv. | Fluoro Rubber (FKM) | |
3.40 € | 1 | Available | 5 Days | 8 | EN 1.0330 Equiv. | Fluoro Rubber (FKM) | |
3.53 € | 1 | Available | 5 Days | 10 | EN 1.0330 Equiv. | Fluoro Rubber (FKM) | |
3.66 € | 1 | Available | 5 Days | 12 | EN 1.0330 Equiv. | Fluoro Rubber (FKM) | |
4.67 € | 1 | Available | 5 Days | 16 | EN 1.0330 Equiv. | Fluoro Rubber (FKM) | |
5.42 € | 1 | Available | 5 Days | 20 | EN 1.0330 Equiv. | Fluoro Rubber (FKM) | |
6.66 € | 1 | Available | 5 Days | 24 | EN 1.0330 Equiv. | Fluoro Rubber (FKM) | |
6.17 € | 1 | Available | 5 Days | 3 | EN 1.4301 Equiv. | Fluoro Rubber (FKM) | |
6.17 € | 1 | Available | 5 Days | 4 | EN 1.4301 Equiv. | Fluoro Rubber (FKM) | |
6.17 € | 1 | Available | 5 Days | 5 | EN 1.4301 Equiv. | Fluoro Rubber (FKM) | |
6.17 € | 1 | Available | 5 Days | 6 | EN 1.4301 Equiv. | Fluoro Rubber (FKM) |
Loading...
Basic information
| Type | Seal Washers |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Applicable Screws M(mm)
-
Retainer Material
- EN 1.0330 Equiv.
- EN 1.4301 Equiv.
-
Rubber Material
- Fluoro Rubber (FKM)
- Nitrile Rubber (NBR Nitrile Rubber )
-
Type
- GSWM
- GSWMF
- SGSWMF
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
