Castors Attachment Parts
- Volume Discount
It can be used when installing tubular frame rollers. Available for plastic and metal joints.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

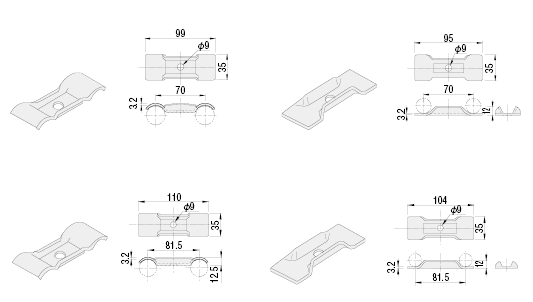

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog

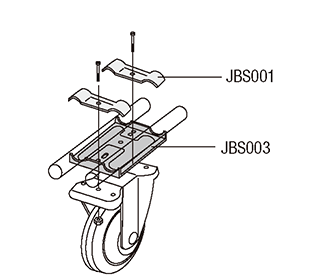

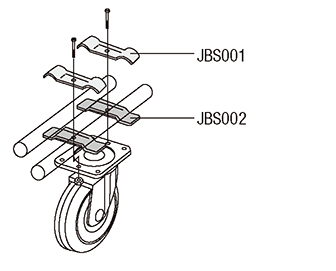

Plates with Caster for Plastic Joints
JBS001
JBS002

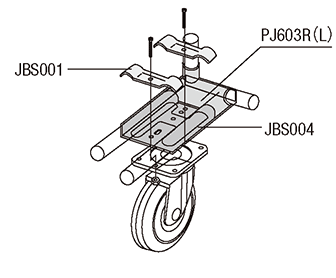

For Metal Joint
Caster Plate A
JBS005
JBS006
[M]Material EN 1.0330 Equiv.
[S]Surface treatment: trivalent chromate
[S]Surface treatment: trivalent chromate
Specification Table
| Part Number |
| JBS005 |
| Part Number | Mass (g) |
| JBS001 | 90 |
| JBS002 | 80 |
| JBS005 | 90 |
| JBS006 | 80 |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Part Number
|
|---|
| JBS001 |
| JBS002 |
| JBS005 |
| JBS006 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Type | |
|---|---|---|---|---|---|---|
1.19 € | 1 | Available | 5 Days | 10 | Plates with Caster for Plastic Joints | |
1.19 € | 1 | Available | 5 Days | 10 | Plates with Caster for Plastic Joints | |
1.58 € | 1 | Available | 5 Days | 10 | Plate with Caster A for metal Joints | |
1.58 € | 1 | Available | 5 Days | 10 | Plate with Caster A for metal Joints |
Loading...
App. Example
| ■Attachment Method of Casters for Pipe Frame | ■Calculation of Caster Height | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic information
| Type | Related Components |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
